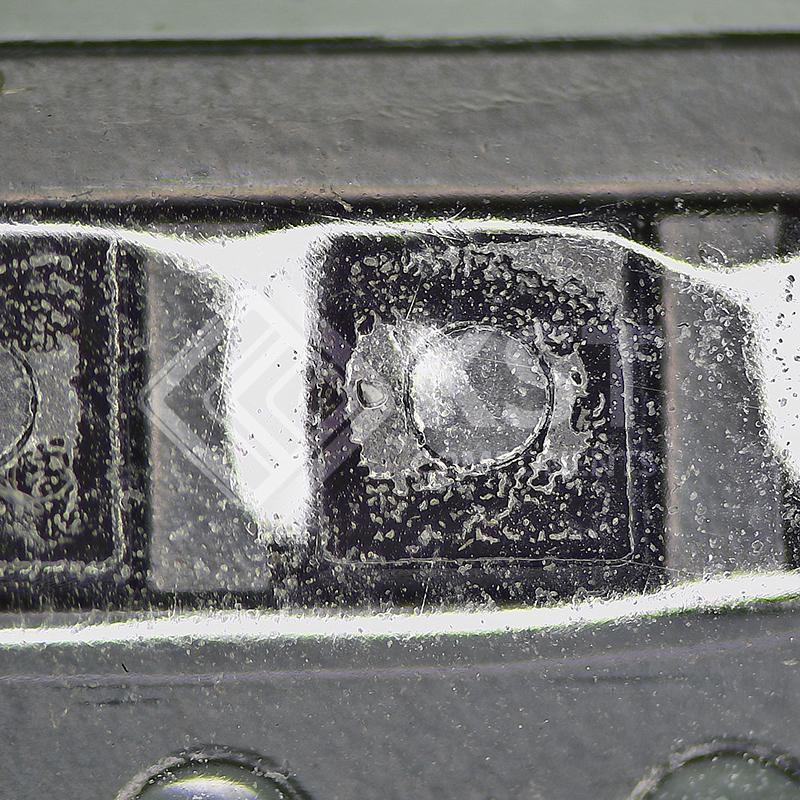

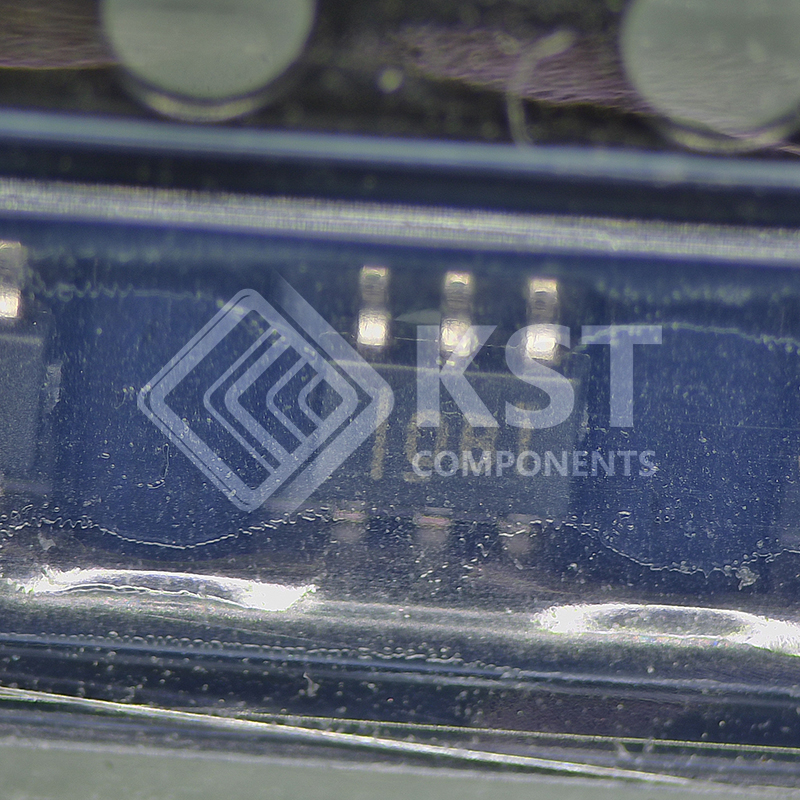

    INA199A3DCKR

    The INA199 series of voltage-output, current-shunt
    monitors (also called current-sense amplifiers) are
    commonly used for overcurrent protection, precisioncurrent measurement for system optimization, or in
    closed-loop feedback circuits. This series of devices
    can sense drops across shunt resistors at commonmode voltages from –0.3 V to 26 V, independent of
    the supply voltage. Three fixed gains are available:
    50 V/V, 100 V/V, and 200 V/V. The low offset of the
    zero-drift architecture enables current sensing with
    maximum drops across the shunt as low as 10-mV
    full-scale.
    These devices operate from a single 2.7-V to 26-
    V power supply, drawing a maximum of 100 µA
    of supply current. All versions are specified from –
    40°C to 125°C, and offered in both SC70-6 and thin
    UQFN-10 packages.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Wide Common-Mode Range: –0.3 V to 26 V
      • Offset Voltage: ±150 μV (Maximum)
      (Enables Shunt Drops of 10-mV Full-Scale)
      • Accuracy:
      – Gain Error (Maximum Over Temperature):
      • ±1% (C Version)
      • ±1.5% (A and B Versions)
      – 0.5-μV/°C Offset Drift (Maximum)
      – 10-ppm/°C Gain Drift (Maximum)
      • Choice of Gains:
      – INA199x1: 50 V/V
      – INA199x2: 100 V/V
      – INA199x3: 200 V/V
      • Quiescent Current: 100 μA (Maximum)
      • Packages: 6-Pin SC70, 10-Pin UQFN
