IL 717E
INQUIRY ONLINE
|
Category
|
Isolators
Digital Isolators
|
|
|
Mfr
|
NVE Corp/Isolation Products
|
|
|
Series
|
IsoLoop®
|
|
|

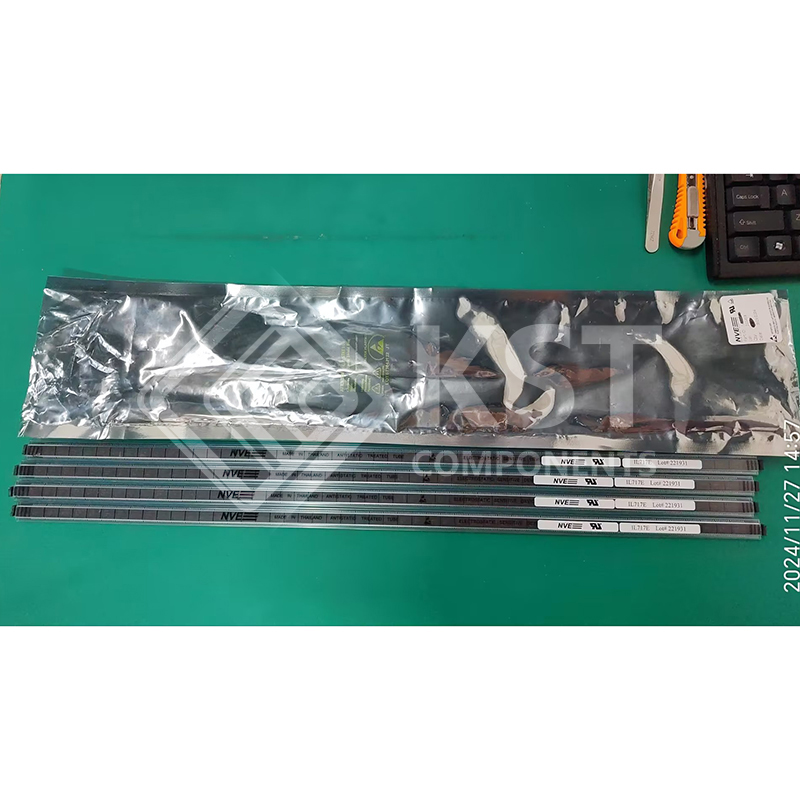

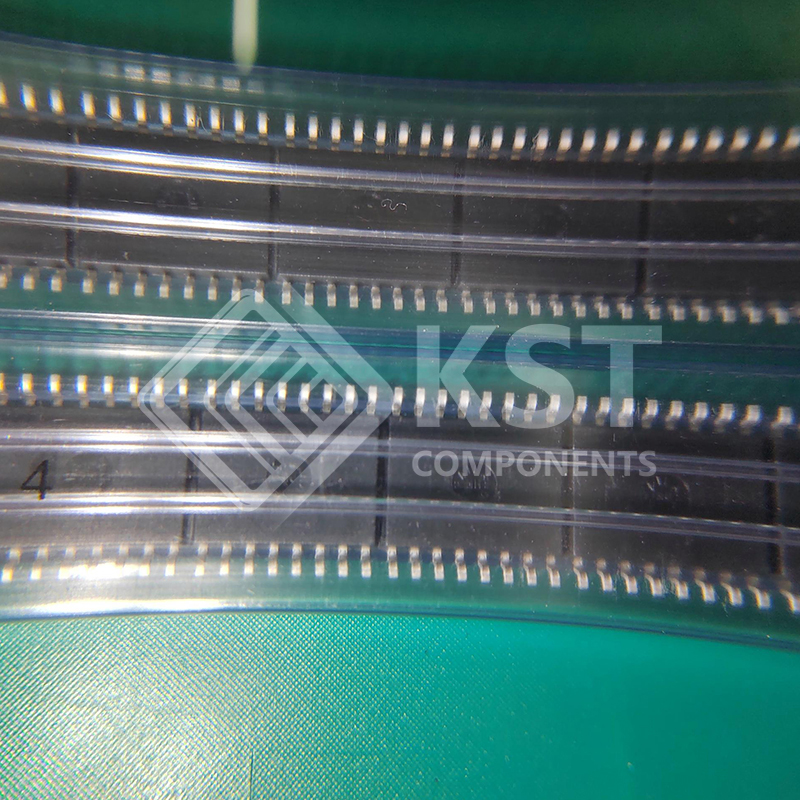

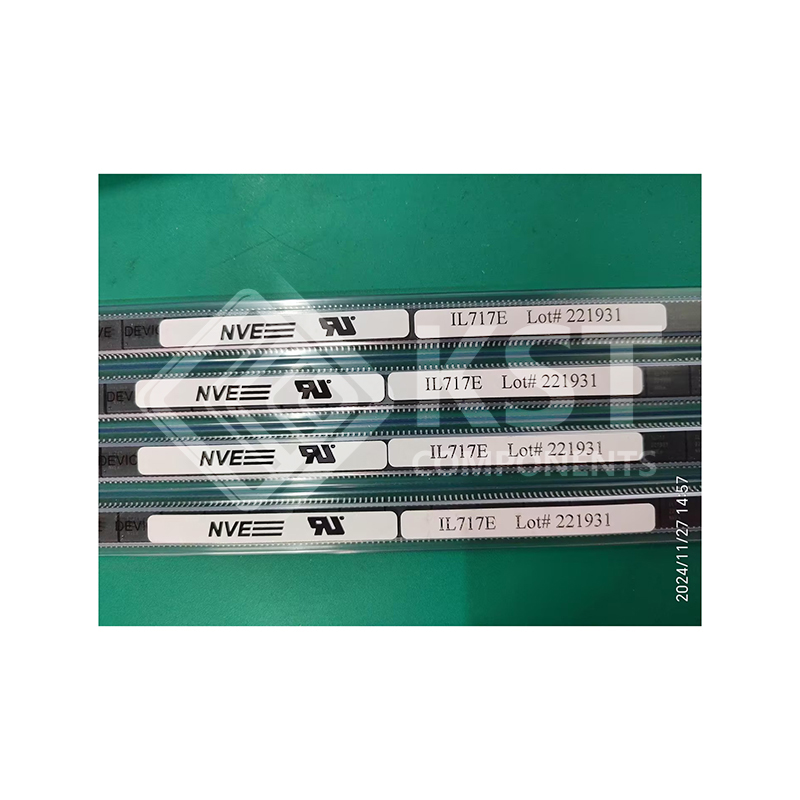

Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Technology
|
GMR (Giant Magnetoresistive)
|
|
|
Type
|
General Purpose
|
|
|
Isolated Power
|
No
|
|
|
Number of Channels
|
4
|
|
|
Inputs – Side 1/Side 2
|
3/1
|
|
|
Channel Type
|
Unidirectional
|
|
|
Voltage – Isolation
|
2500Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
100kV/µs
|
|
|
Data Rate
|
110Mbps
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
15ns, 15ns
|
|
|
Pulse Width Distortion (Max)
|
3ns
|
|
|
Rise / Fall Time (Typ)
|
1ns, 1ns
|
|
|
Voltage – Supply
|
3V ~ 5.5V
|
|
|
Operating Temperature
|
-40°C ~ 100°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|

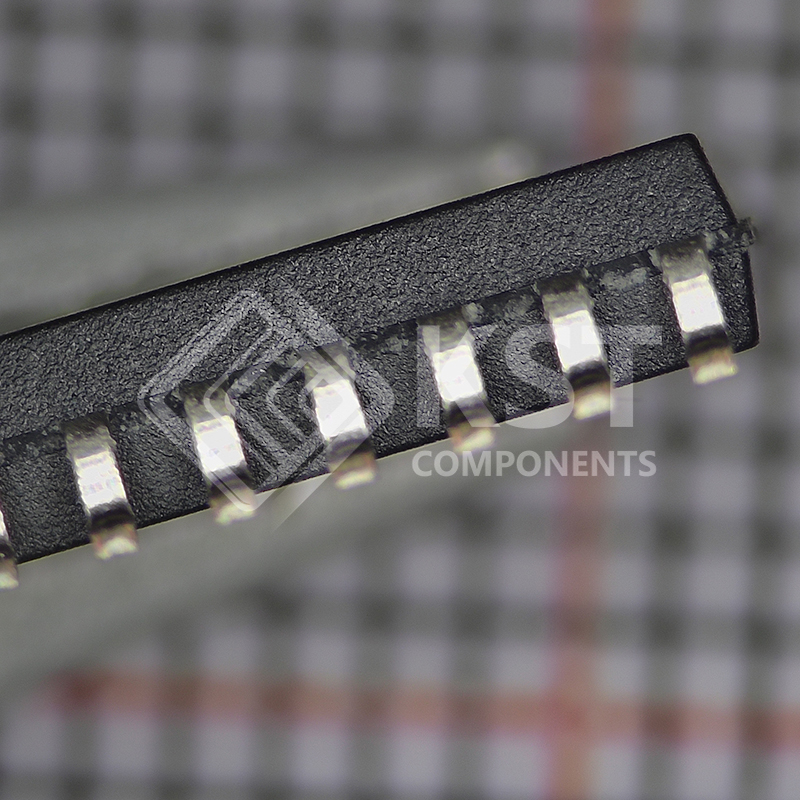

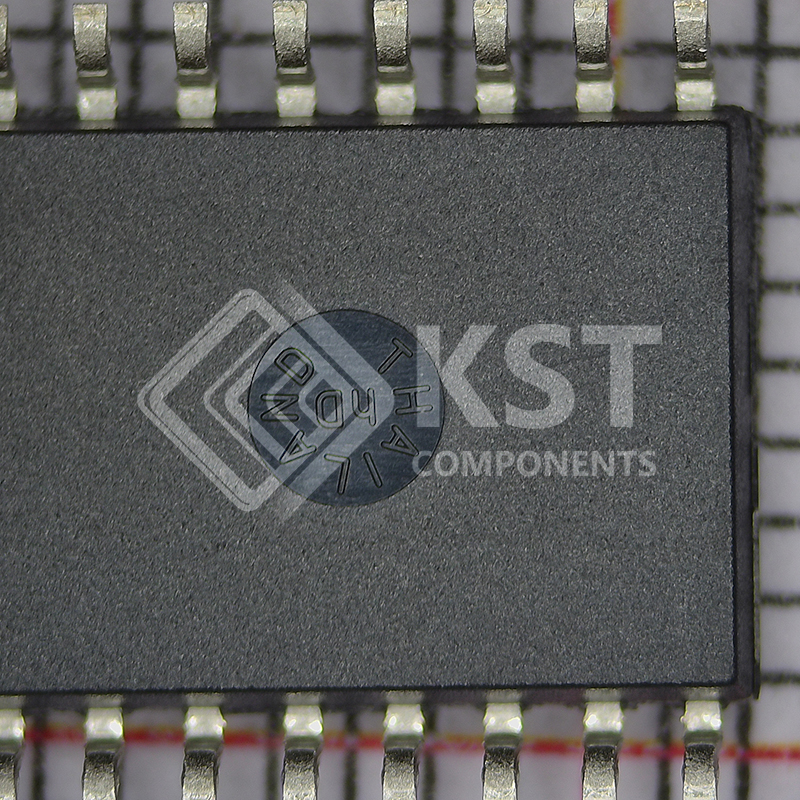

Package / Case
|
16-SOIC (0.295″, 7.50mm Width)
|
|
|
Supplier Device Package
|
16-SOIC
|
|
|
Base Product Number
|
IL 717
|
