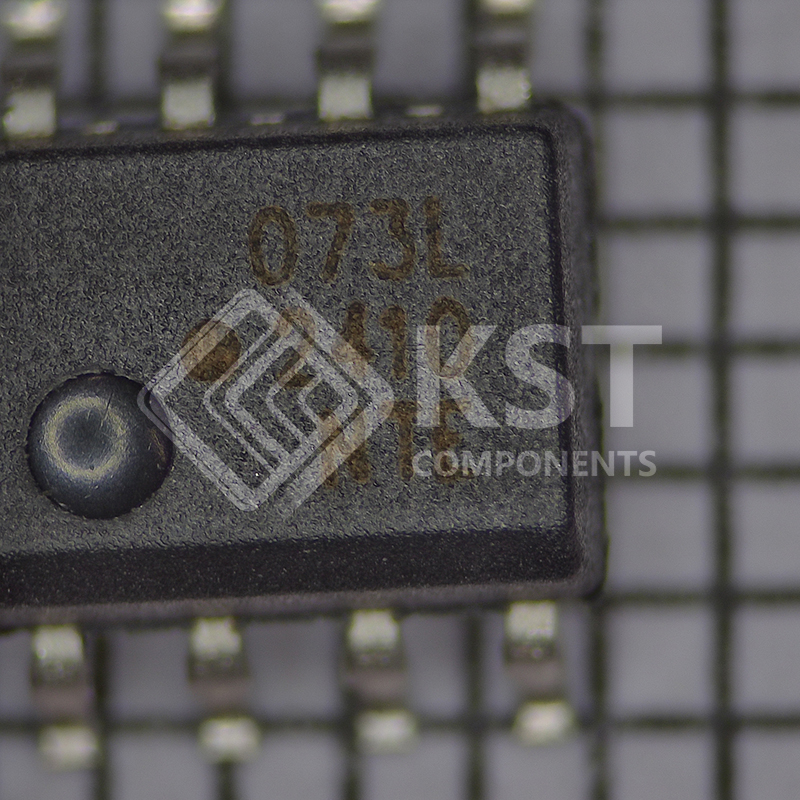

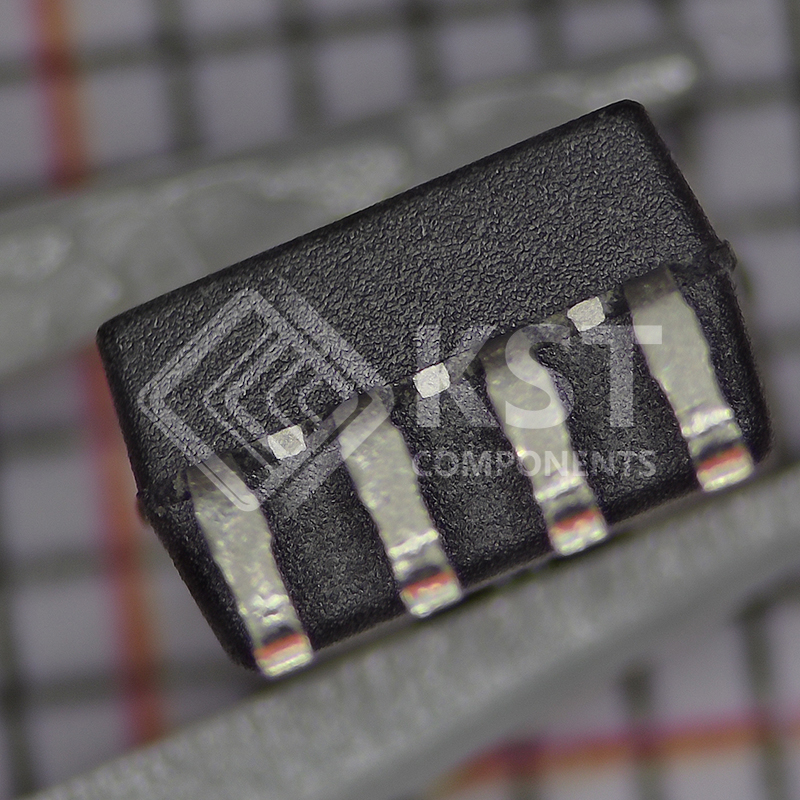

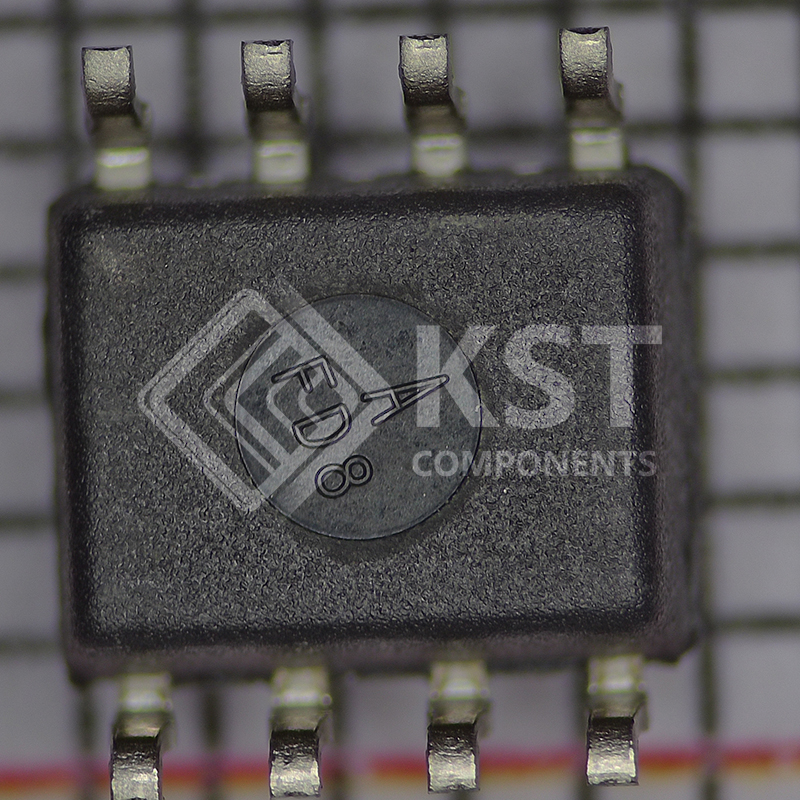

HCPL-073L-500E
INQUIRY ONLINE
|
Category
|
Isolators
Optocouplers, Optoisolators
Transistor, Photovoltaic Output Optoisolators
|
|
|
Manufacturer
|
Broadcom Limited
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
2
|
|
|
Voltage – Isolation
|
3750Vrms
|
|
|
Current Transfer Ratio (Min)
|
300% @ 1.6mA
|
|
|
Current Transfer Ratio (Max)
|
2600% @ 1.6mA
|
|
|
Turn On / Turn Off Time (Typ)
|
25µs, 50µs
|
|
|
Rise / Fall Time (Typ)
|
–
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Darlington
|
|
|
Voltage – Output (Max)
|
7V
|
|
|
Current – Output / Channel
|
60mA
|
|
|
Voltage – Forward (Vf) (Typ)
|
1.5V
|
|
|
Current – DC Forward (If) (Max)
|
20 mA
|
|
|
Vce Saturation (Max)
|
–
|
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
8-SOIC (0.154″, 3.90mm Width)
|
|
|
Supplier Device Package
|
8-SO
|
|
|
Base Product Number
|
HCPL-073
|
|
