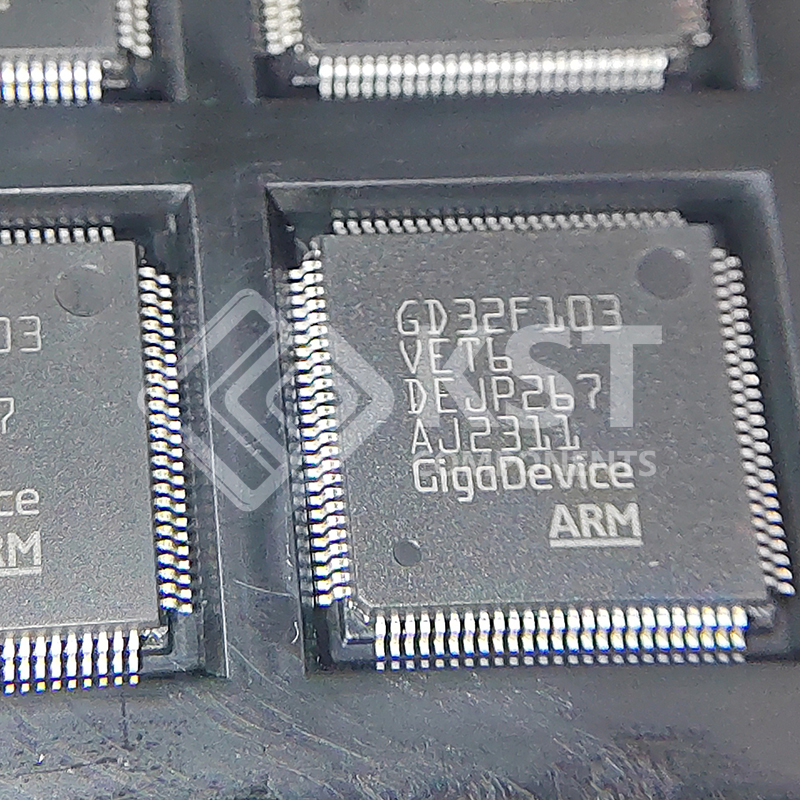

The GD32F103xx device is a 32-bit general-purpose microcontroller based on the Arm®
Cortex®
-M3 RISC core with best ratio in terms of processing power, reduced power
consumption and peripheral set. The Cortex®
-M3 is a next generation processor core which
is tightly coupled with a Nested Vectored Interrupt Controller (NVIC), SysTick timer and
advanced debug support.
The GD32F103xx device incorporates the Arm® Cortex®
-M3 32-bit processor core operating
at 108 MHz frequency with Flash accesses zero wait states to obtain maximum efficiency. It
provides up to 3 MB on-chip Flash memory and up to 96 KB SRAM memory. An extensive
range of enhanced I/Os and peripherals connected to two APB buses. The devices offer up
to three 12-bit ADCs, up to two 12-bit DACs, up to ten general 16-bit timers, two basic timers
plus two PWM advanced timer, as well as standard and advanced communication interfaces:
up to three SPIs, two I2Cs, three USARTs, two UARTs, two I2Ss, an USBD, a CAN and a
SDIO.
The device operates from a 2.6 to 3.6 V power supply and available in –40 to +85 °C
temperature range. Several power saving modes provide the flexibility for maximum
optimization between wakeup latency and power consumption, an especially important
consideration in low power applications.
The above features make the GD32F103xx devices suitable for a wide range of applications,
especially in areas such as industrial control, motor drives, power monitor and alarm systems,
consumer and handheld equipment, POS, vehicle GPS, video intercom, PC peripherals and
so on.
