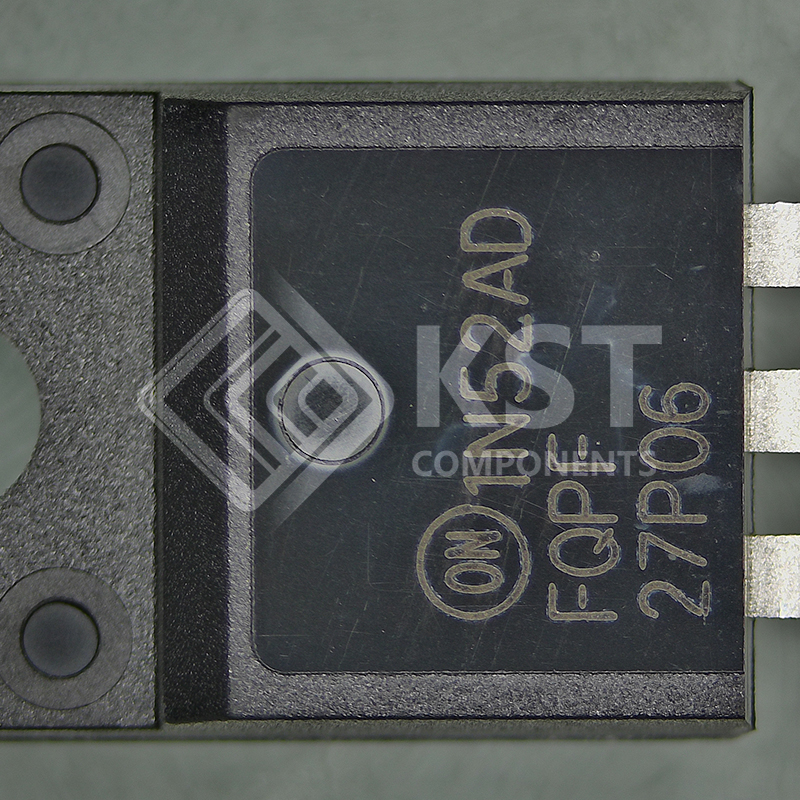

FQPF27P06
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr
|
onsemi
|
|
|
Series
|
QFET®
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
P-Channel
|
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
|
Drain to Source Voltage (Vdss)
|
60 V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
17A (Tc)
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
|
Rds On (Max) @ Id, Vgs
|
70mOhm @ 8.5A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
4V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
43 nC @ 10 V
|
|
|
Vgs (Max)
|
±25V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1400 pF @ 25 V
|
|
|
FET Feature
|
–
|
|
|
Power Dissipation (Max)
|
47W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
|
Mounting Type
|
Through Hole
|
|
|
Supplier Device Package
|
TO-220F-3
|
|
|
Package / Case
|
TO-220-3 Full Pack
|
|
|
Base Product Number
|
FQPF27
|
