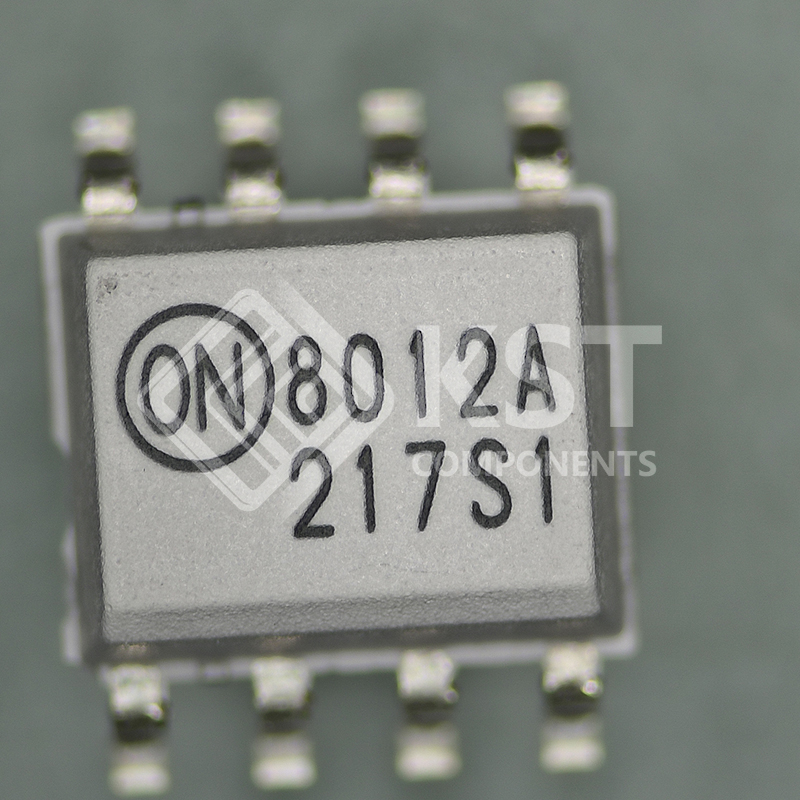

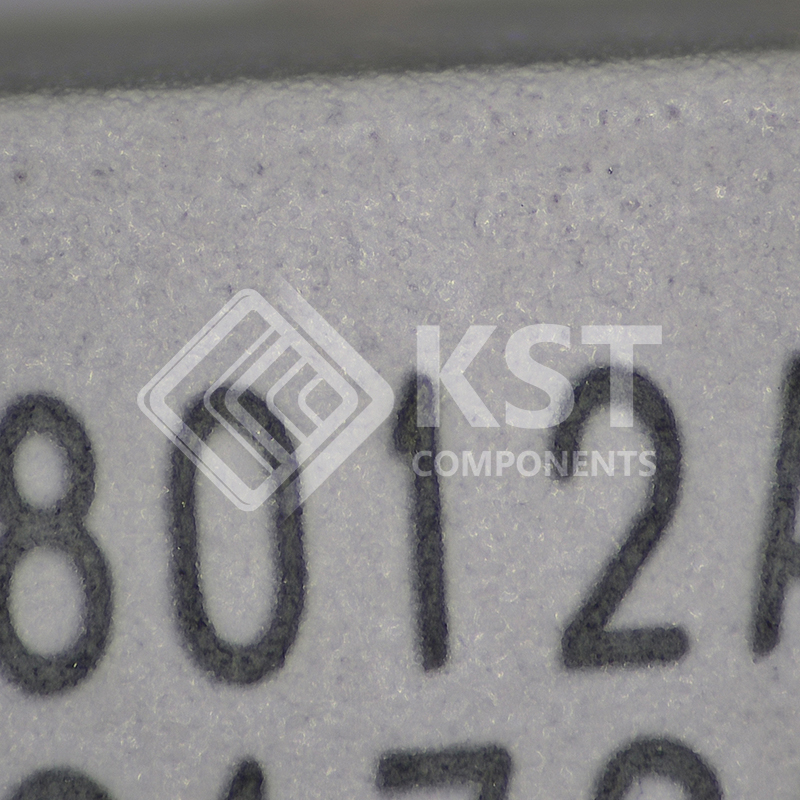

FOD8012A
INQUIRY ONLINE
|
Category
|
Isolators
Optoisolators
Logic Output Optoisolators
|
|
|
Manufacturer
|
onsemi
|
|
|
Series
|
–
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
2
|
|
|
Inputs – Side 1/Side 2
|
1/1
|
|
|
Voltage – Isolation
|
3750Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
20kV/µs
|
|
|
Input Type
|
Logic
|
|
|
Output Type
|
Push-Pull, Totem Pole
|
|
|
Current – Output / Channel
|
10 mA
|
|
|
Data Rate
|
15Mbps
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
60ns, 60ns
|
|
|
Rise / Fall Time (Typ)
|
6.5ns, 6.5ns
|
|
|
Voltage – Forward (Vf) (Typ)
|
–
|
|
|
Current – DC Forward (If) (Max)
|
–
|
|
|
Voltage – Supply
|
3V ~ 3.6V, 4.5V ~ 5.5V
|
|
|
Operating Temperature
|
-40°C ~ 110°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
8-SOIC (0.154″, 3.90mm Width)
|
|
|
Supplier Device Package
|
8-SOIC
|
|
|
Base Product Number
|
FOD8012
|
