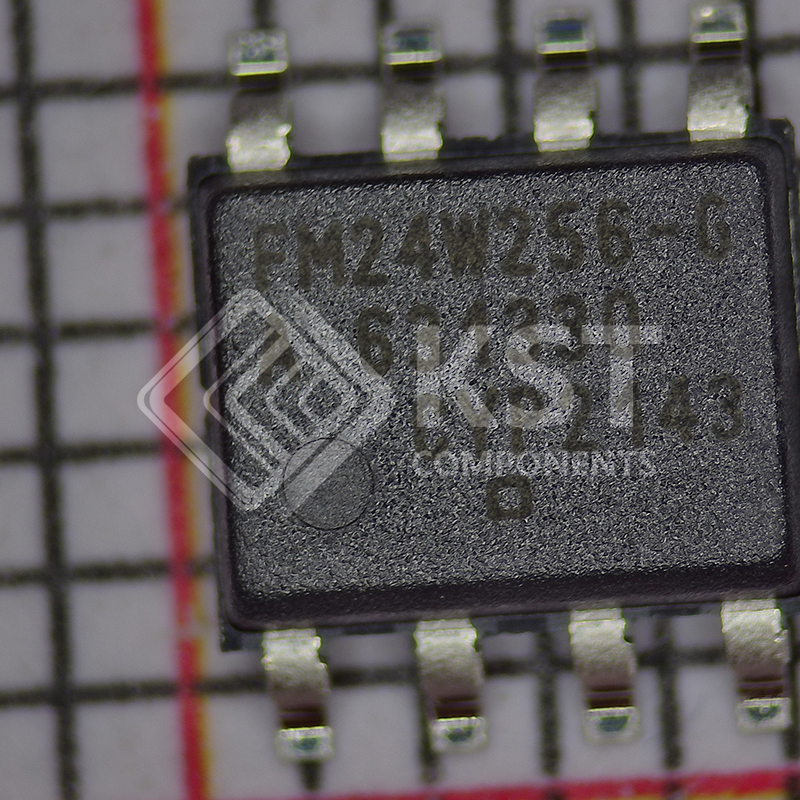

FM24W256-G

The FM24W256 is a 256-Kbit nonvolatile memory employing an
advanced ferroelectric process. A ferroelectric random access
memory or F-RAM is nonvolatile and performs reads and writes
similar to a RAM. It provides reliable data retention for 151 years
while eliminating the complexities, overhead, and system-level
reliability problems caused by EEPROM and other nonvolatile
memories.
Unlike EEPROM, the FM24W256 performs write operations at
bus speed. No write delays are incurred. Data is written to the
memory array immediately after each byte is successfully
transferred to the device. The next bus cycle can commence
without the need for data polling. In addition, the product offers
substantial write endurance compared with other nonvolatile
memories. Also, F-RAM exhibits much lower power during writes
than EEPROM since write operations do not require an internally
elevated power supply voltage for write circuits. The FM24W256
is capable of supporting 1014 read/write cycles, or 100 million
times more write cycles than EEPROM.
These capabilities make the FM24W256 ideal for nonvolatile
memory applications, requiring frequent or rapid writes.
Examples range from data logging, where the number of write
cycles may be critical, to demanding industrial controls where the
long write time of EEPROM can cause data loss. The
combination of features allows more frequent data writing with
less overhead for the system.
The FM24W256 provides substantial benefits to users of serial
(I2C) EEPROM as a hardware drop-in replacement. The device
specifications are guaranteed over an industrial temperature
range of –40 C to +85 C.
