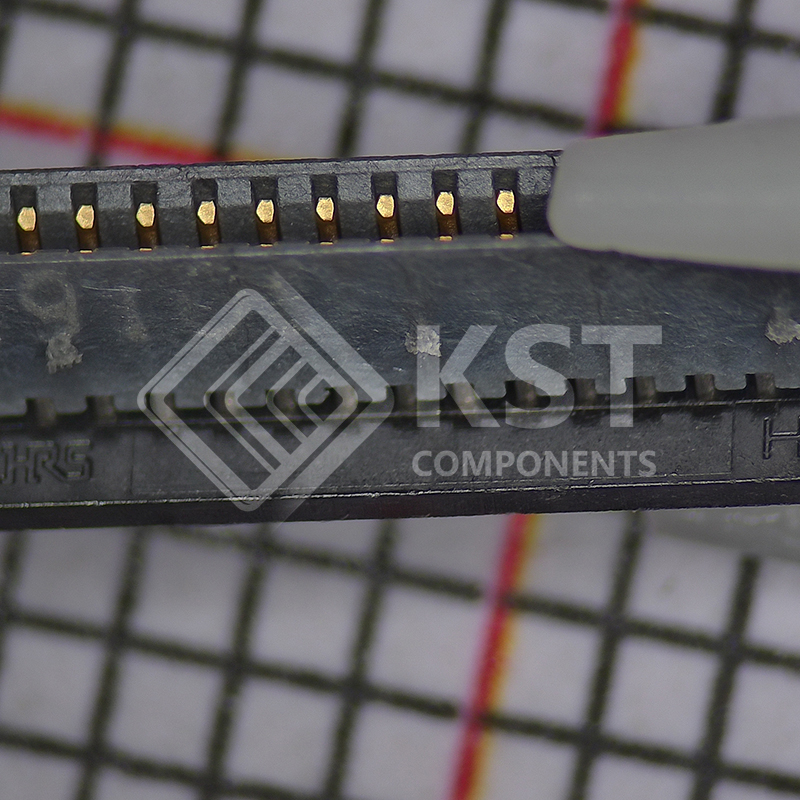

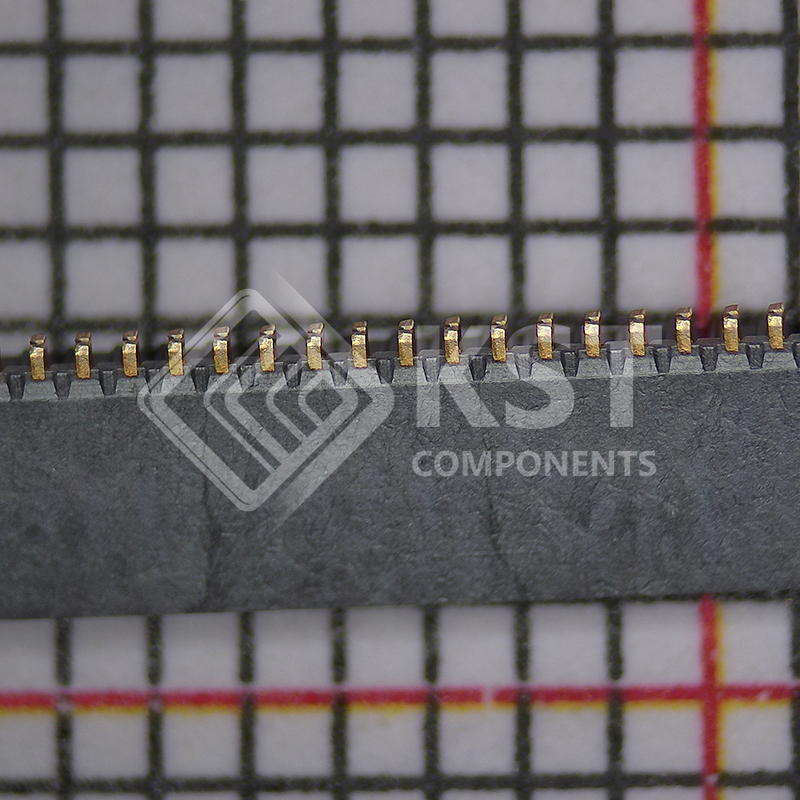

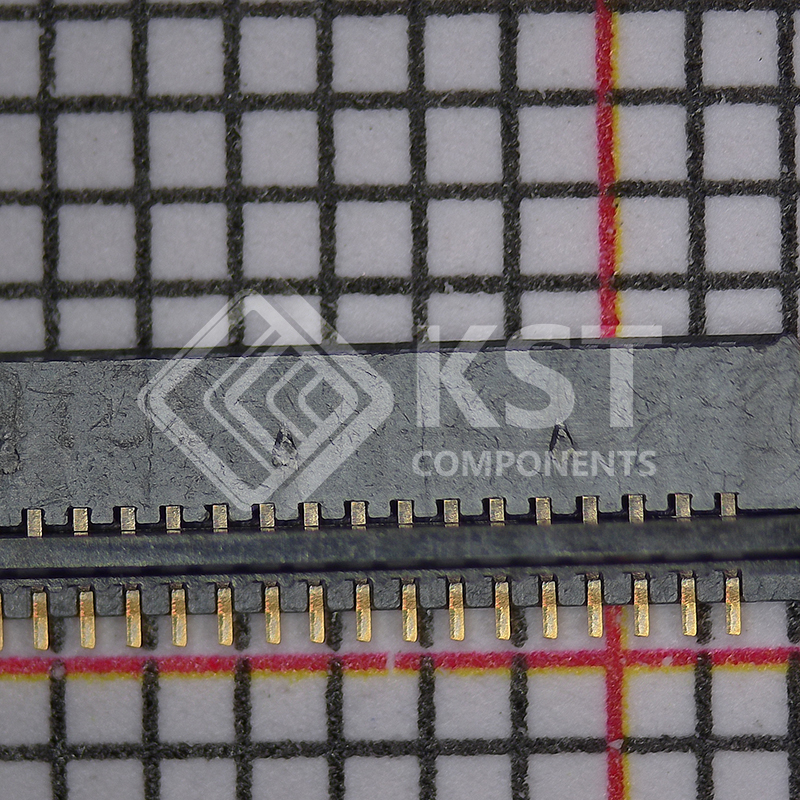

FH34SRJ-20S-0.5SH(50)

1. Low-profile 0.5mm Pitch,
Both Upper and Lower
Contacts Connector
Since it can be used in both top contact and
bottom contact, freedom of Item design is
improved.
Top & Bottom Contact Improves
the Design Flexibility
Tapers on All 4 Inner Walls
Top and Bottom Contact Design
Smooth FPC Insertion
2. FH34SRJ : Back Flip &
Unique Contact Design
Greatly Improves FPC
Retention Force
In Horizontal Direction : Approx. 2.6 times Higher
(Comparison Against Conventional Type)
In Vertical Direction : Approx. 2 times Higher
(Comparison Against Conventional Type)
3. FH34D : FPC/FFC with Tabs
and Improved FPC Retention
Force
In Horizontal Direction : FH34SRJ + Approx.
2.5N (10pos.)
FPC/FFC Tab Compatible Product (FH34D) is available
4. High Speed Transmission
Excellent impedance characteristics and high
speed transmission.
Supports eDP (ver 1.3) and MIPI (D-PHY)
standards.

5. Delivery with Lock Open
No need to open actuator before working
because delivery with the lock open.
6. Easy FPC/FFC Insertion
The taper guide at the housing opening allows
easy FPC/FFC insertion.
7. Compatible with 0.3mm thick
FPC/FFC
Supports 0.3mm thick FPC/FFC which is the
standard thickness of 0.5mm pitch connector.
(The moderate rigidity of the reinforcing plate
prevents deformation of the FPC and prevents
troubles during insertion and mating.)
8. No pattern prohibited area is
required on the lower surface
of the connector.
（Overmolding Design）
The lower surface of the connector is covered
with plastic to eliminate the exposure of contact,
so there is no restriction on the circuit board
pattern. Increased flexibility in board design.
9. Halogen-free
Connector does not use chlorine or bromine
above the standard value.
*AS defined by IEC 61249-2-21.
Br : 900ppm Max., Cl : 900ppm Max.,
Br+Cl : 1,500ppm Max.

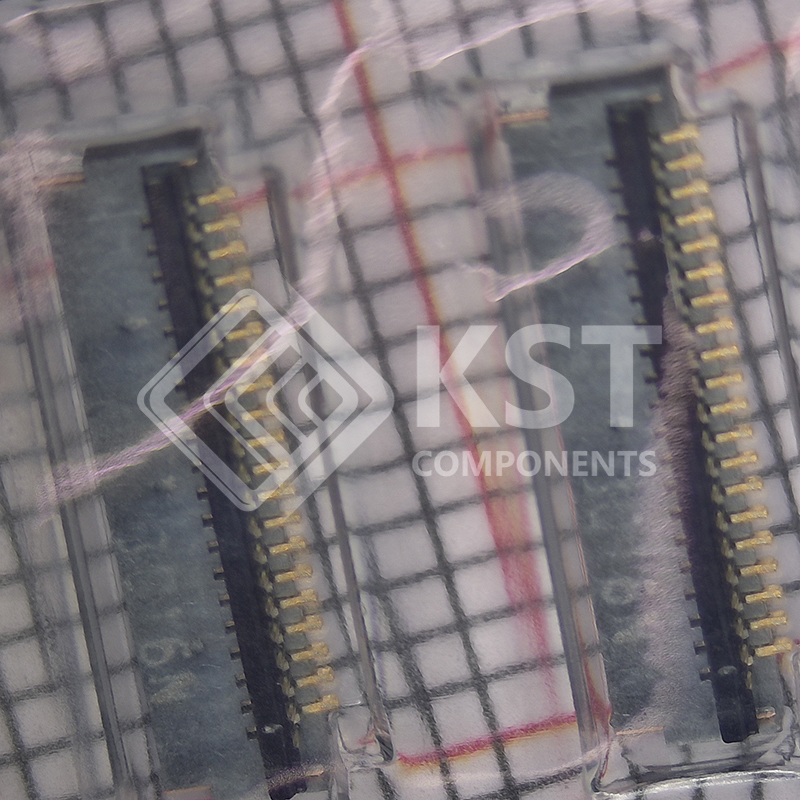

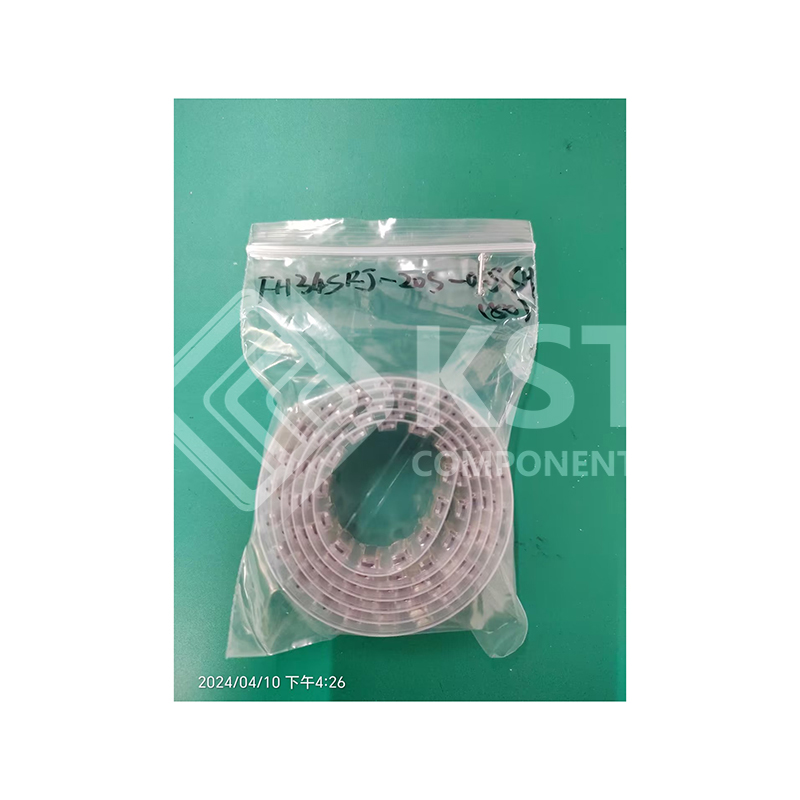

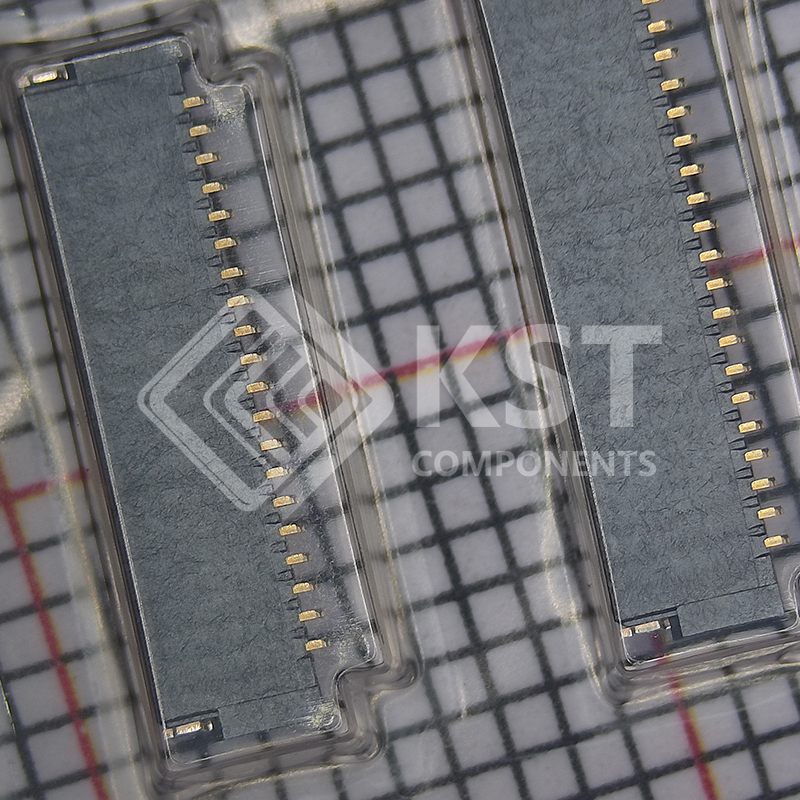

10. Automatic Mounting
Pick & place mounting is possible with boss
packaging.
(5,000pcs for reel)
Also, the normal product is 5,000pcs for reel,
but we also have 500pcs for reel as trial use.
(The outer shape of the embossed reel is
φ180mm.)
