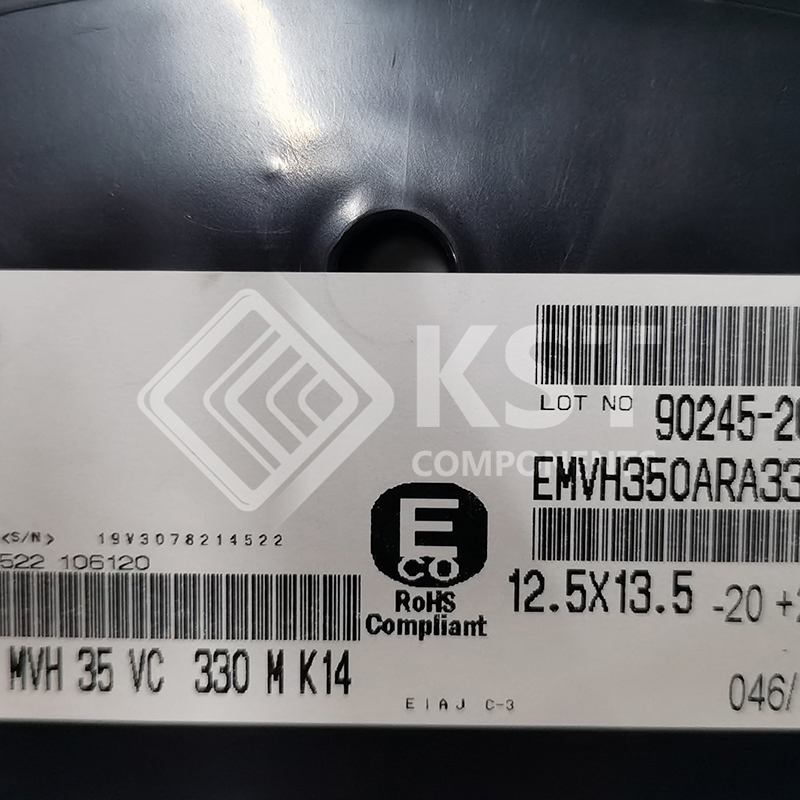

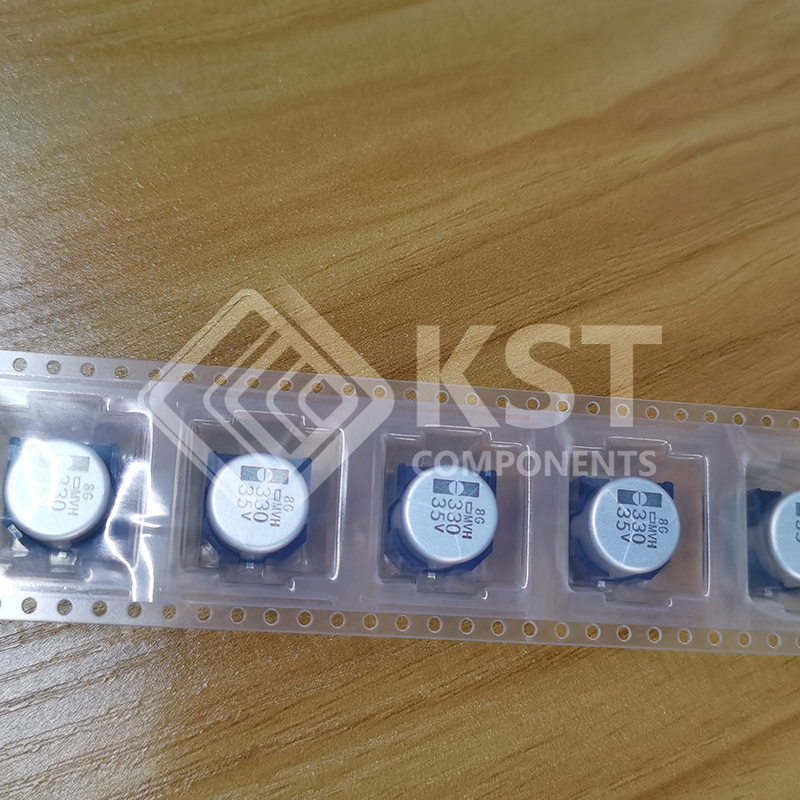

EMVH350ARA331MKE0S
INQUIRY ONLINE
|
Category
|
Capacitors
Aluminum Electrolytic Capacitors
|
|
|
Mfr
|
Chemi-Con
|
|
|
Series
|
Alchip™- MVH
|
|
|

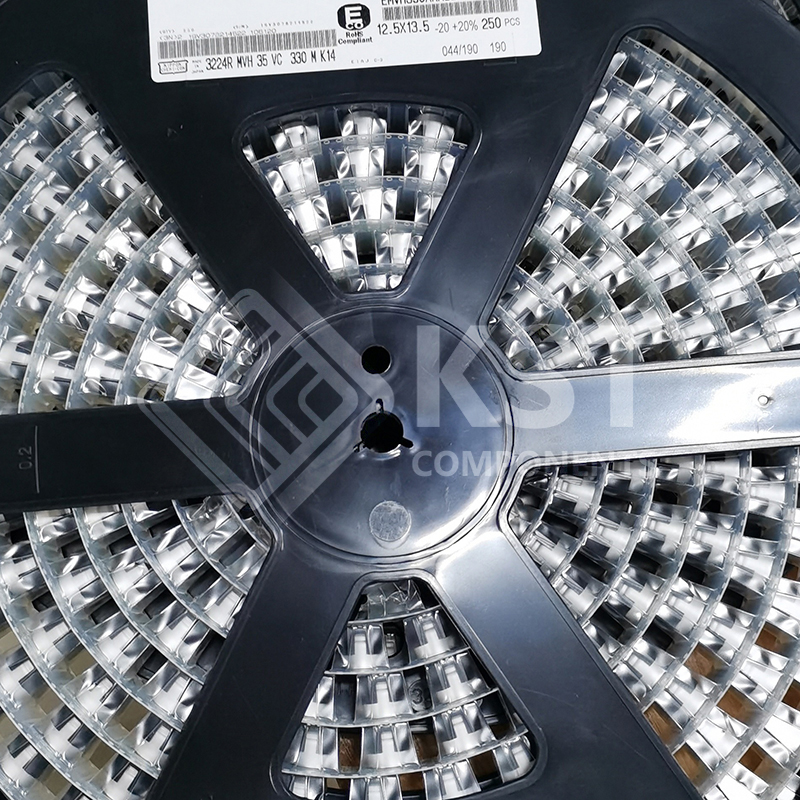

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Capacitance
|
330 µF
|
|
|
Tolerance
|
±20%
|
|
|
Voltage – Rated
|
35 V
|
|
|
ESR (Equivalent Series Resistance)
|
140mOhm @ 100kHz
|
|
|
Lifetime @ Temp.
|
5000 Hrs @ 125°C
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Polarization
|
Polar
|
|
|
Ratings
|
–
|
|
|
Applications
|
Automotive
|
|
|
Ripple Current @ Low Frequency
|
375 mA @ 120 Hz
|
|
|
Ripple Current @ High Frequency
|
750 mA @ 100 kHz
|
|
|
Lead Spacing
|
–
|
|
|
Size / Dimension
|
0.492″ Dia (12.50mm)
|
|
|
Height – Seated (Max)
|
0.531″ (13.50mm)
|
|
|
Surface Mount Land Size
|
0.512″ L x 0.512″ W (13.00mm x 13.00mm)
|
|
|

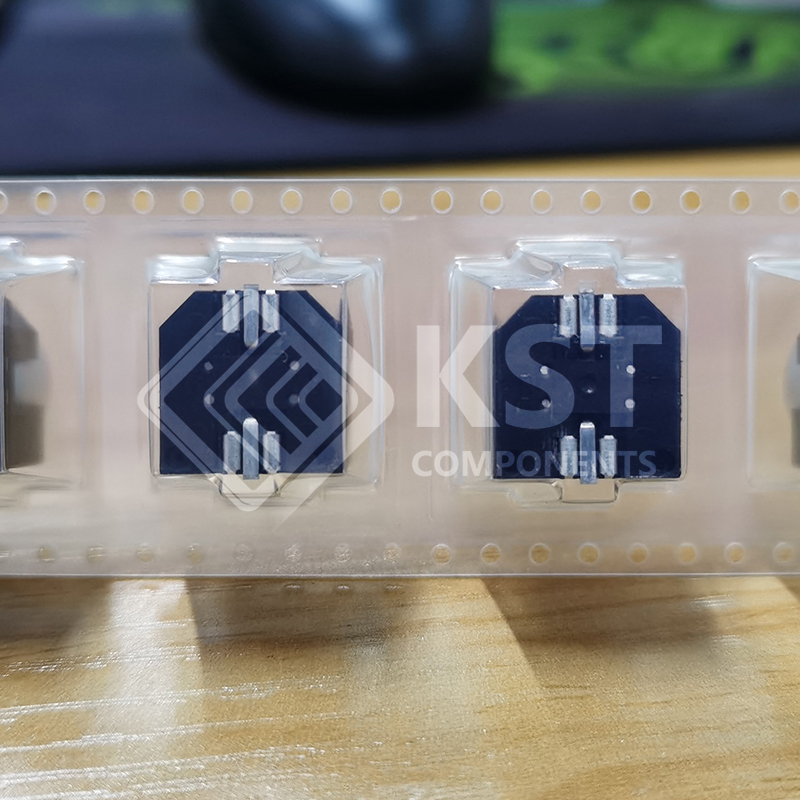

Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
Radial, Can – SMD
|
