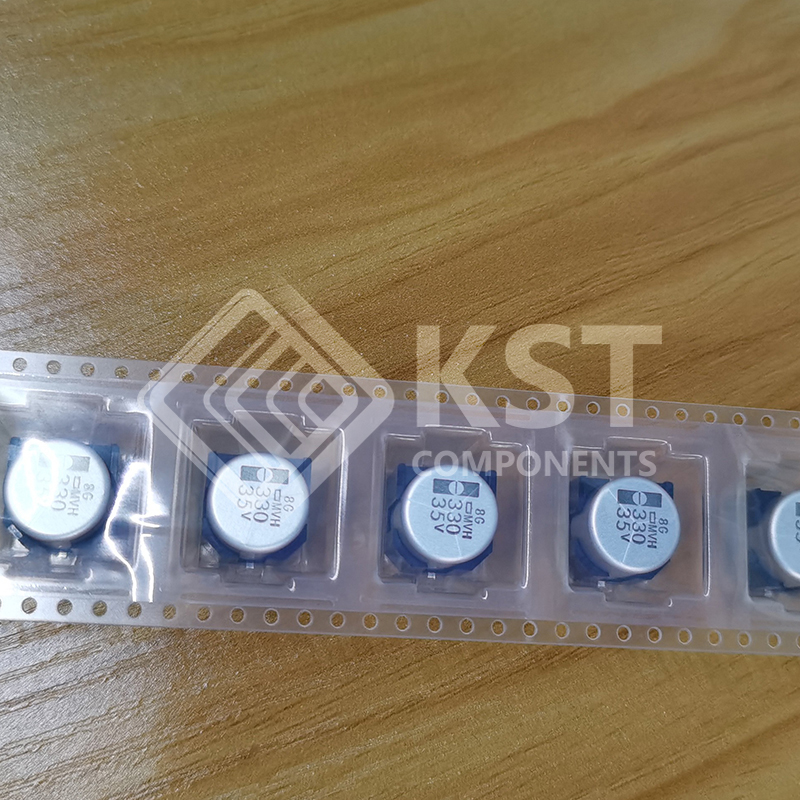

EMVH350ARA331MKE0S
INQUIRY ONLINE
| Mfr | Chemi-Con |
| Series | Alchip™- MVH |

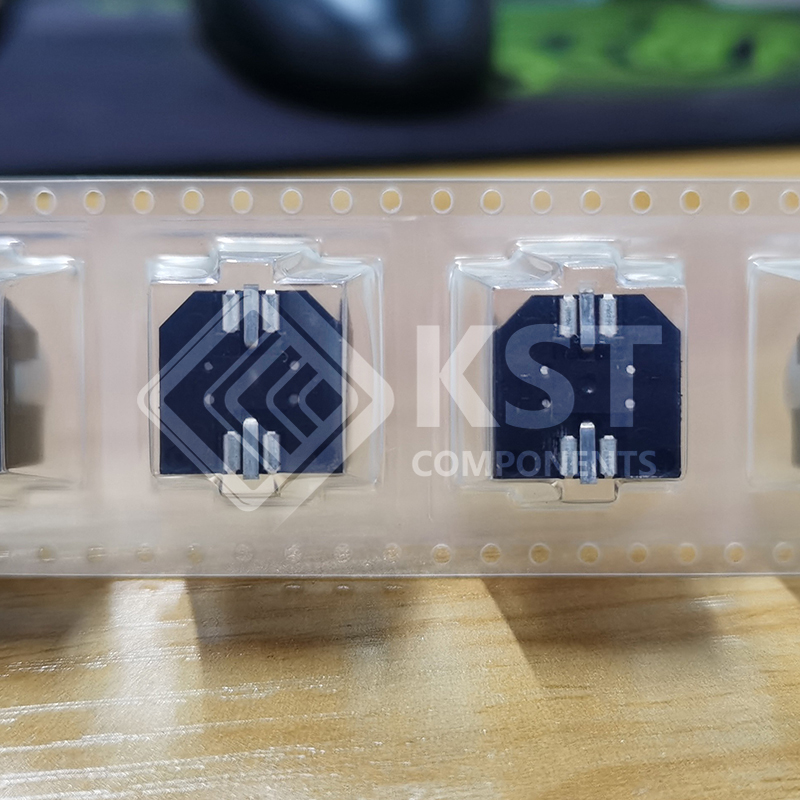

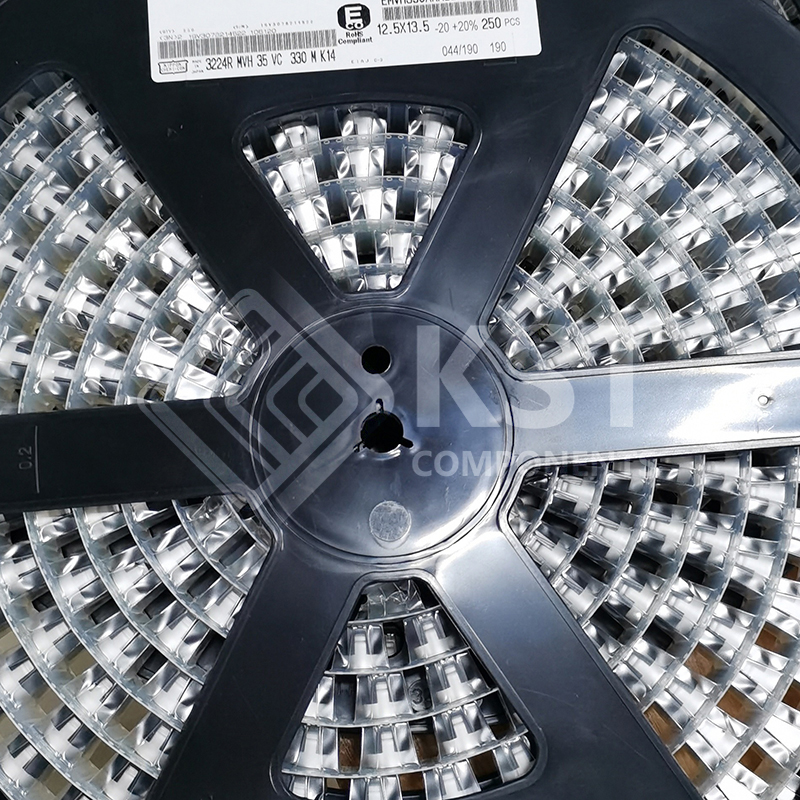

| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage – Rated | 35 V |
| ESR (Equivalent Series Resistance) | 140mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | – |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 375 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Lead Spacing | – |
| Size / Dimension | 0.492″ Dia (12.50mm) |
| Height – Seated (Max) | 0.531″ (13.50mm) |
| Surface Mount Land Size | 0.512″ L x 0.512″ W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can – SMD |
