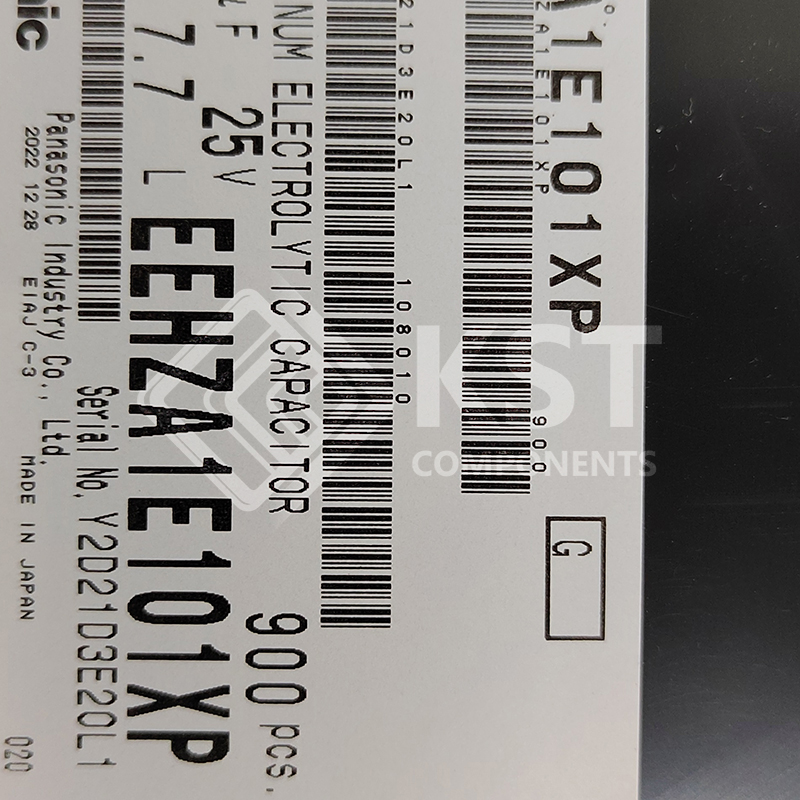

EEHZA1E101XP
INQUIRY ONLINE
|
Category
|
Capacitors
Aluminum – Polymer Capacitors
|
|
|
Manufacturer
|
Panasonic Electronic Components
|
|
|
Series
|
ZA
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
Hybrid
|
|
|
Capacitance
|
100 µF
|
|
|
Tolerance
|
±20%
|
|
|
Voltage – Rated
|
25 V
|
|
|
ESR (Equivalent Series Resistance)
|
30mOhm
|
|
|
Lifetime @ Temp.
|
10000 Hrs @ 105°C
|
|
|
Operating Temperature
|
-55°C ~ 105°C
|
|
|
Ratings
|
AEC-Q200
|
|
|
Applications
|
Automotive
|
|
|
Ripple Current @ Low Frequency
|
300 mA @ 100 Hz
|
|
|
Ripple Current @ High Frequency
|
2 A @ 100 kHz
|
|
|
Lead Spacing
|
–
|
|
|
Size / Dimension
|
0.248″ Dia (6.30mm)
|
|
|
Height – Seated (Max)
|
0.315″ (8.00mm)
|
|
|
Surface Mount Land Size
|
0.260″ L x 0.260″ W (6.60mm x 6.60mm)
|
|
|
Mounting Type
|

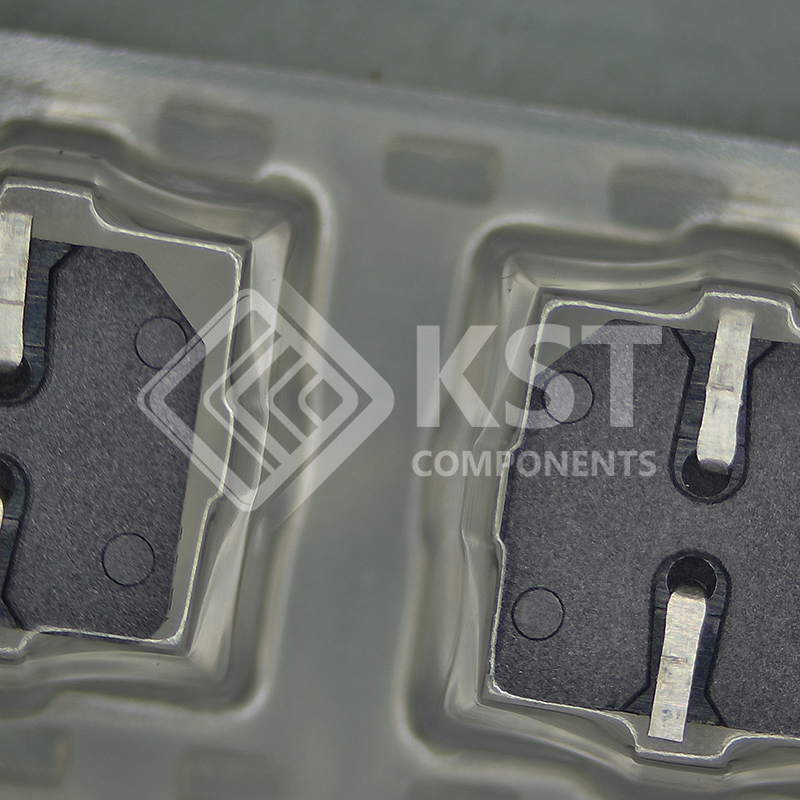

Surface Mount
|
|
|
Package / Case
|

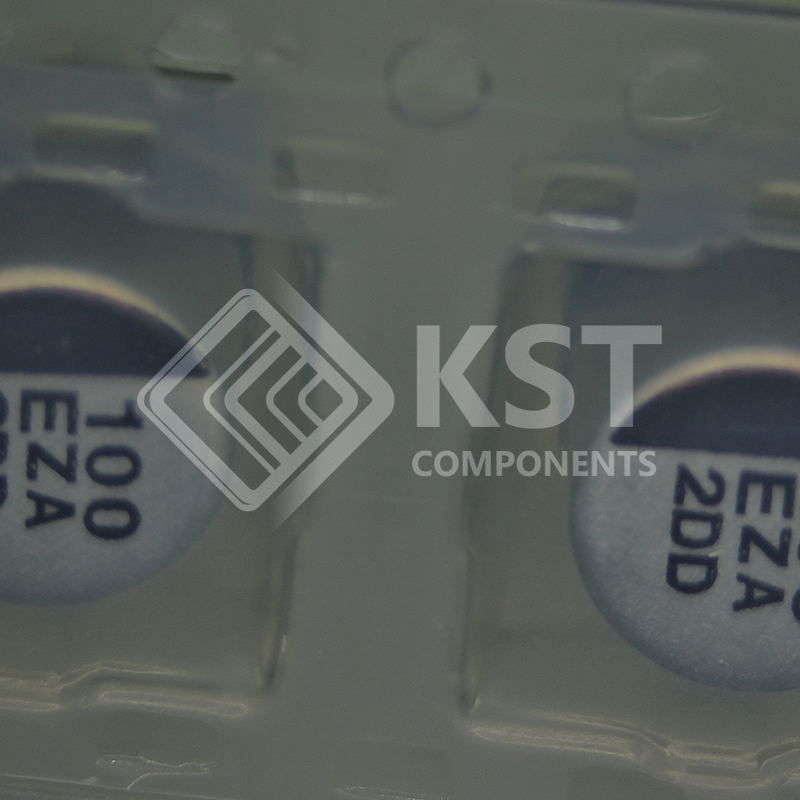

Radial, Can – SMD
|
|
|
Base Product Number
|
EEH-ZA
|
