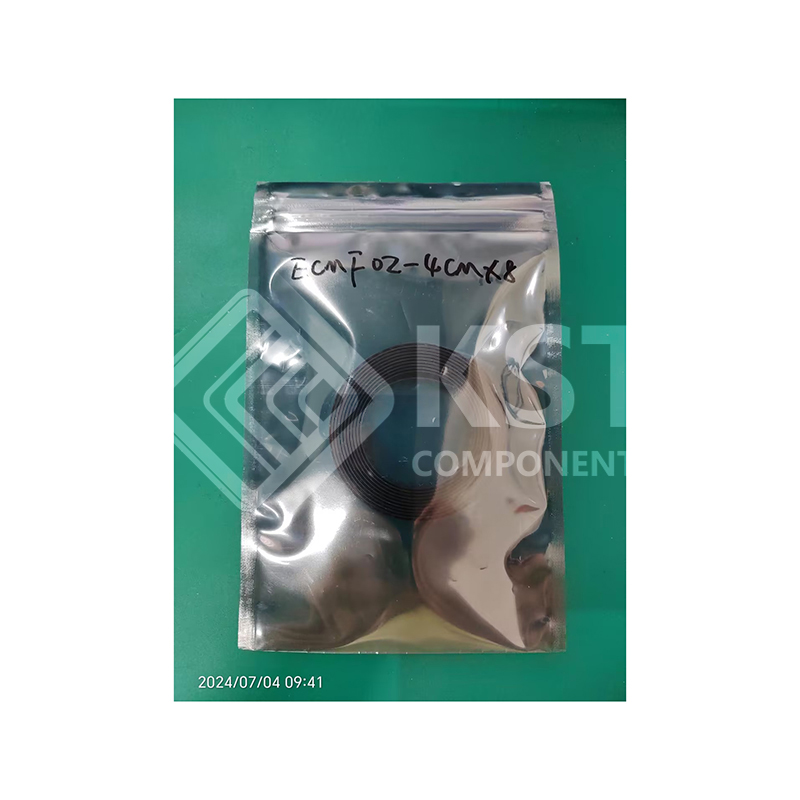

ECMF02-4CMX8
INQUIRY ONLINE
|
Category
|
Filters
Common Mode Chokes
|
|
|
Manufacturer
|
STMicroelectronics
|
|
|
Series
|
ECMF
|
|
|
Packaging
|

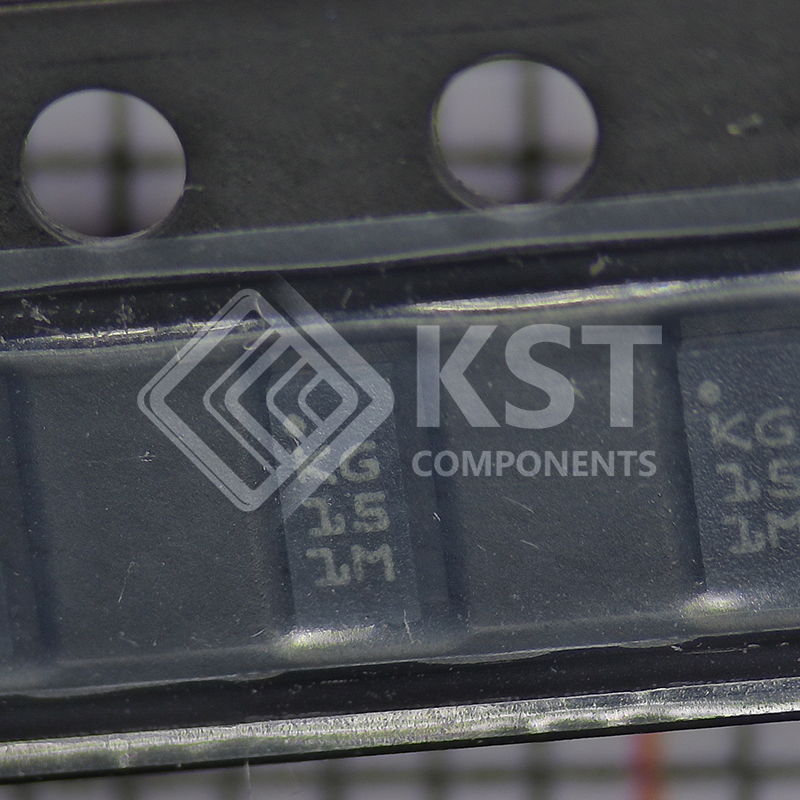

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Filter Type
|
Signal Line
|
|
|
Number of Lines
|
2
|
|
|
Current Rating (Max)
|
–
|
|
|
DC Resistance (DCR) (Max)
|
4Ohm
|
|
|
Voltage Rating – DC
|
–
|
|
|
Voltage Rating – AC
|
–
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Ratings
|
–
|
|
|
Approval Agency
|
–
|
|
|
Features
|
TVS Diode ESD Protection
|
|
|
Mounting Type
|
Surface Mount
|
|
|

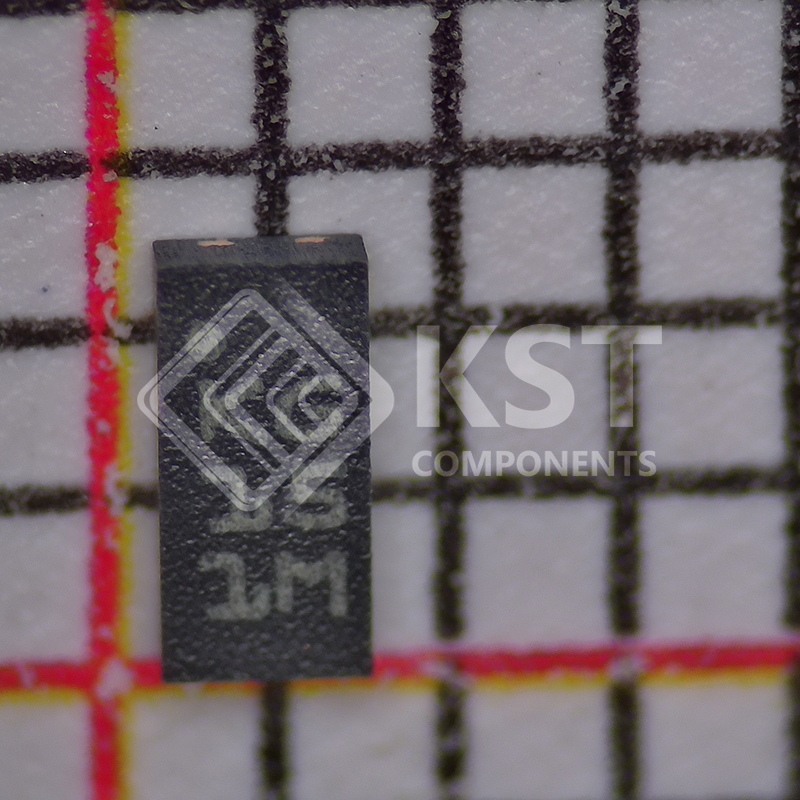

Size / Dimension
|
0.098″ L x 0.047″ W (2.50mm x 1.20mm)
|
|
|
Height (Max)
|
0.022″ (0.55mm)
|
|
|

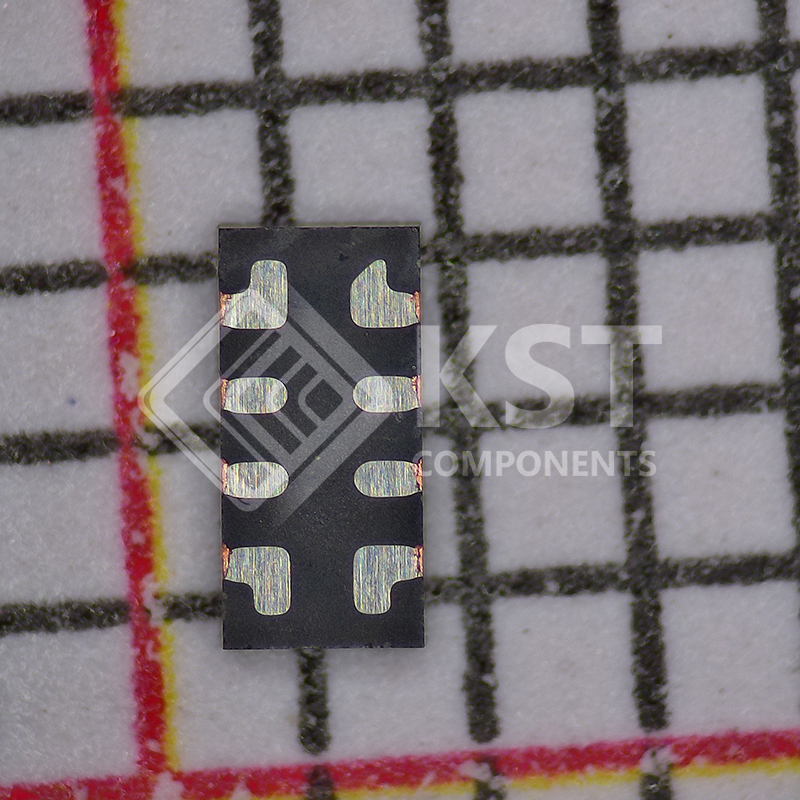

Package / Case
|
8-UFDFN
|
|
|
Base Product Number
|
ECMF02
|
