ECLAMP2357NQTCT
INQUIRY ONLINE
|
Category
|
Filters
EMI/RFI Filters (LC, RC Networks)
|
|
|
Manufacturer
|
Semtech Corporation
|
|
|
Series
|
EMIClamp®
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
Low Pass
|
|
|
Filter Order
|
3rd
|
|
|
Technology
|
RC (Pi)
|
|
|
Number of Channels
|
6
|
|
|
Center / Cutoff Frequency
|
–
|
|
|
Attenuation Value
|
30dB @ 1.8GHz
|
|
|
Resistance – Channel (Ohms)
|
100
|
|
|
Values
|
R = 100Ohms, C = 12pF
|
|
|
ESD Protection
|
Yes
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Applications
|
–
|
|
|
Voltage – Rated
|
–
|
|
|
Grade
|
Automotive
|
|
|
Qualification
|
AEC-Q100
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

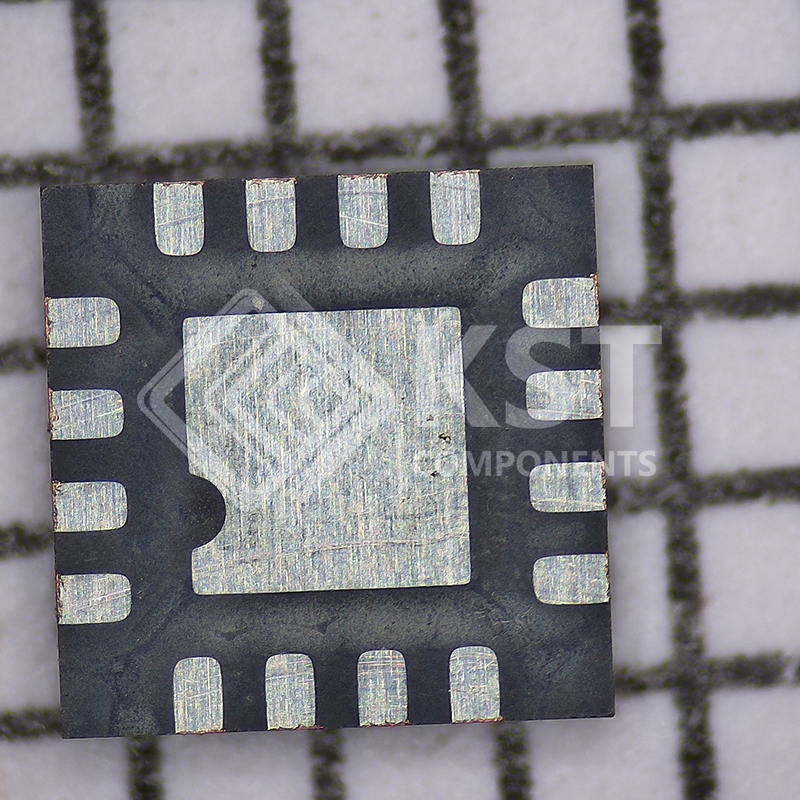

16-UFQFN Exposed Pad
|
|
|
Size / Dimension
|
0.118″ L x 0.118″ W (3.00mm x 3.00mm)
|
|
|
Height
|
0.028″ (0.70mm)
|
|
|
Base Product Number
|
ECLAMP2357
|
