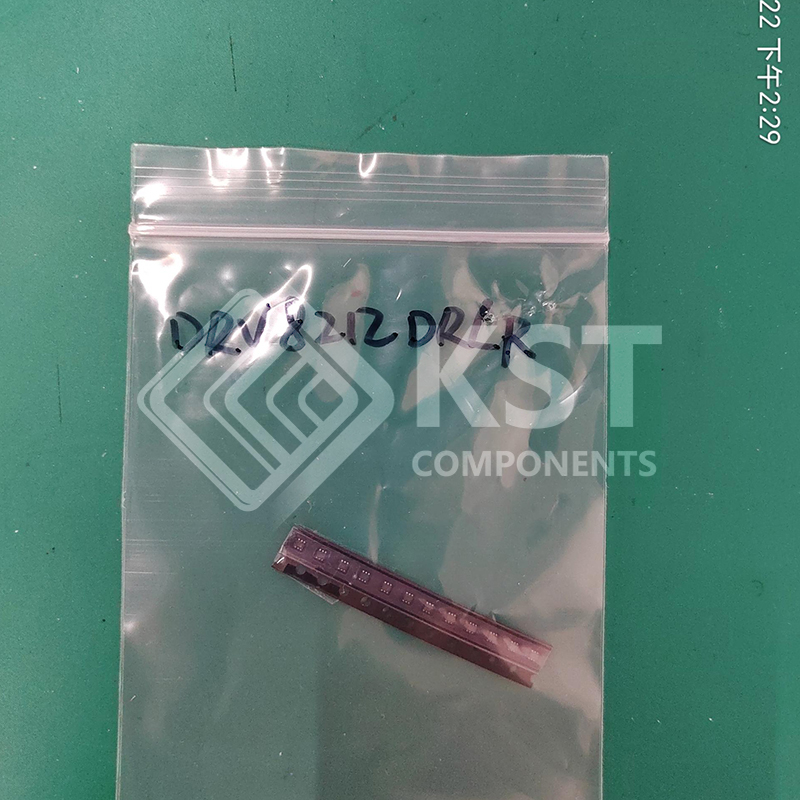

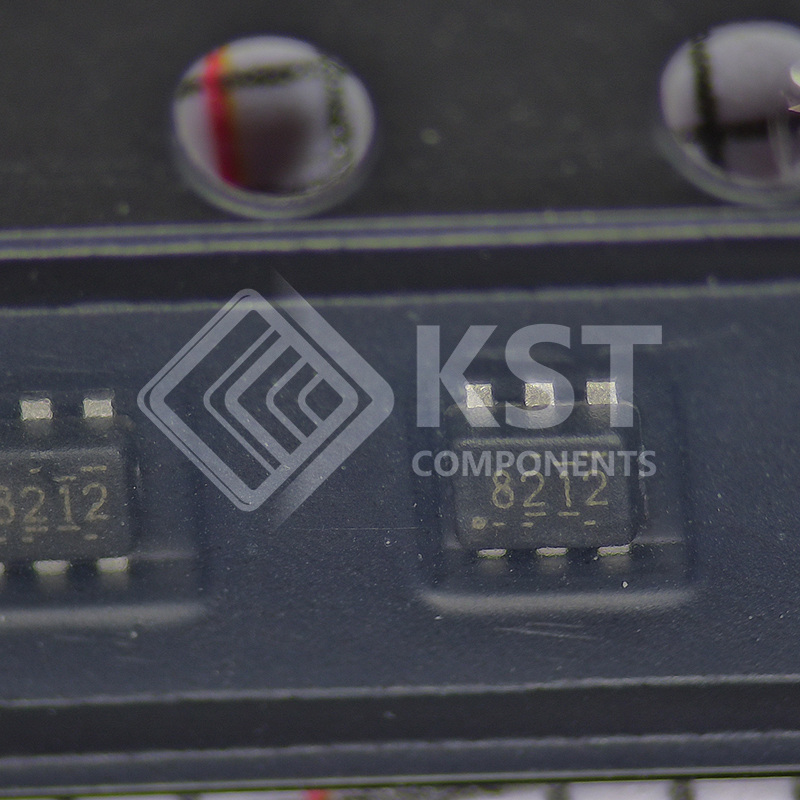

DRV8212DRLR

The DRV8212 is an integrated motor driver with
four N-channel power FETs, charge pump regulator,
and protection circuitry. The tripler charge pump
architecture allows the device to operate down to 1.65
V to accommodate 1.8-V supply rails and low-battery
conditions. The charge pump integrates all capacitors
to reduce the overall solution size of the motor driver
on a PCB and allows for 100% duty cycle operation.
The DRV8212 supports multiple control interface
modes including: PWM (IN1/IN2), phase/enable (PH/
EN), independent half-bridge, and parallel half-bridge.
Each interface supports a low-power sleep mode to
achieve ultra-low quiescent current draw by shutting
down most of the internal circuitry.
The device can supply up to 4-A peak output current.
It operates with a supply voltage from 1.65 V to 5.5 V.
The driver offers robust internal protection features
include supply undervoltage lockout (UVLO), output
overcurrent (OCP), and device overtemperature
(TSD).
The DRV8212 is part of a family of devices which
come in pin-to-pin scalable RDS(on) and supply voltage
options to support various loads and supply rails with
minimal design changes. See Device Comparison for
information on the devices in this family. View our full
portfolio of brushed motor drivers on ti.com.
