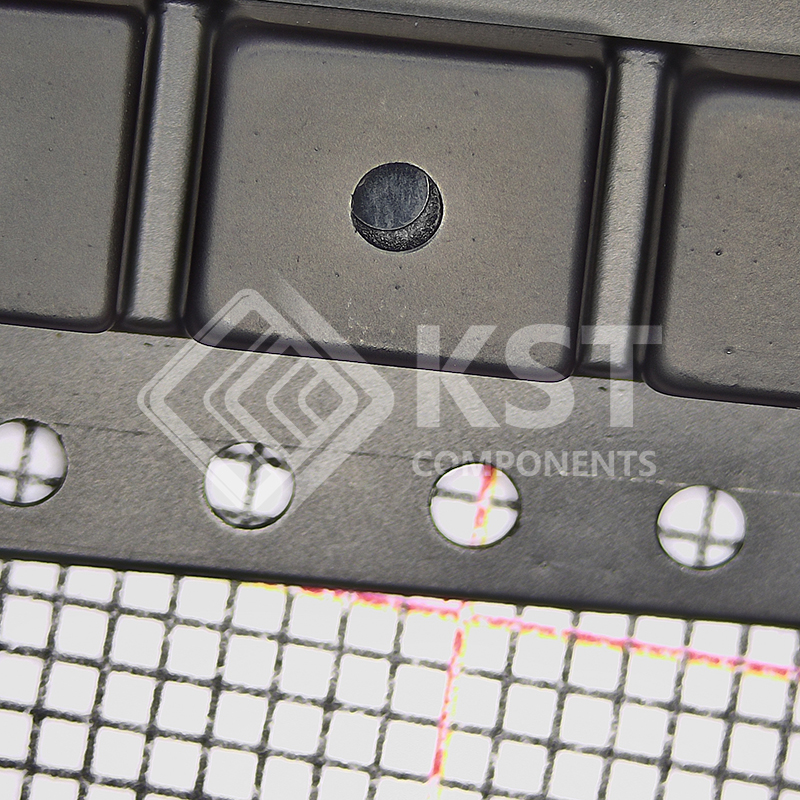

DMP4047SSD-13
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
FET, MOSFET Arrays
|
|
|
Manufacturer
|
Diodes Incorporated
|
|
|
Series
|
–
|
|
|

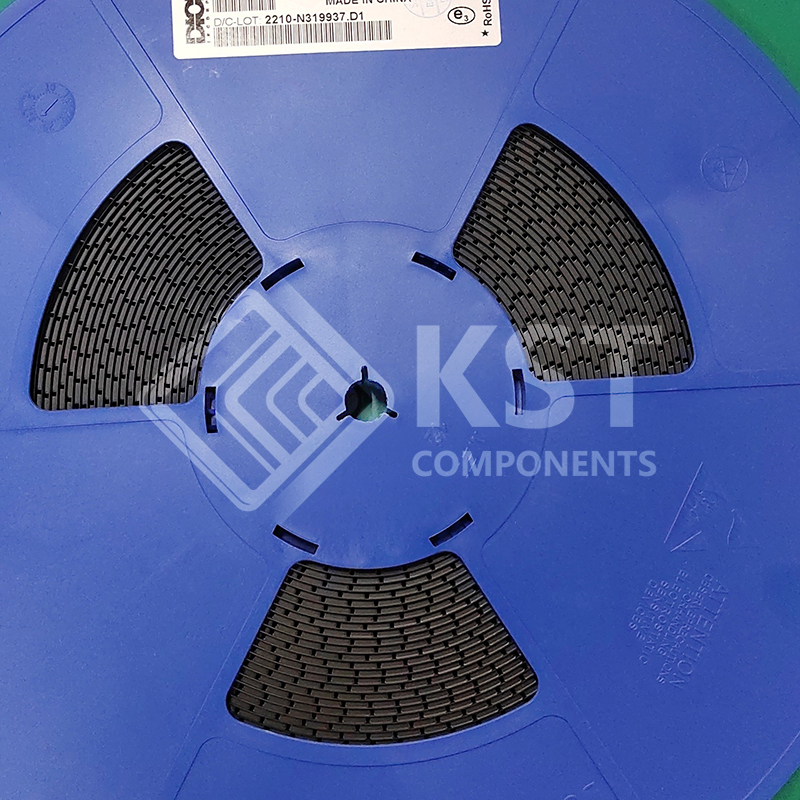

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
|
Configuration
|
2 P-Channel (Dual)
|
|
|
FET Feature
|
Logic Level Gate
|
|
|
Drain to Source Voltage (Vdss)
|
40V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
5.1A
|
|
|
Rds On (Max) @ Id, Vgs
|
45mOhm @ 4.4A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
3V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
21.5nC @ 10V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1154pF @ 20V
|
|
|
Power – Max
|
1.3W
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|

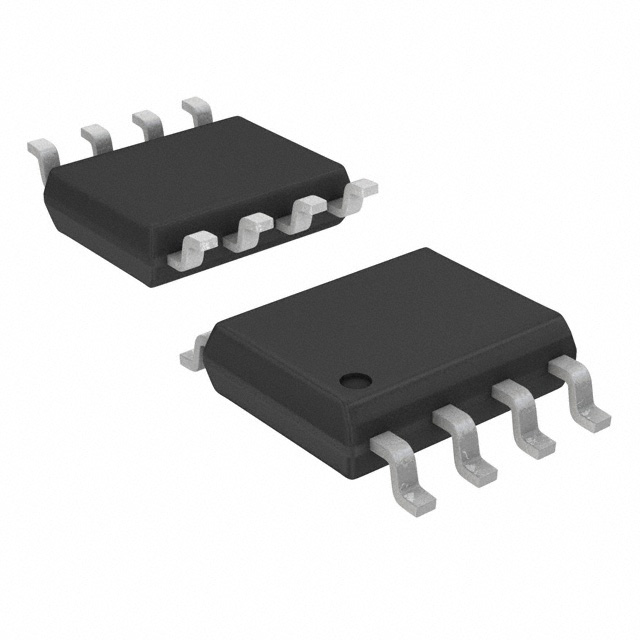

Package / Case
|
8-SOIC (0.154″, 3.90mm Width)
|
|
|
Supplier Device Package
|
8-SO
|
|
|
Base Product Number
|
DMP4047
|
