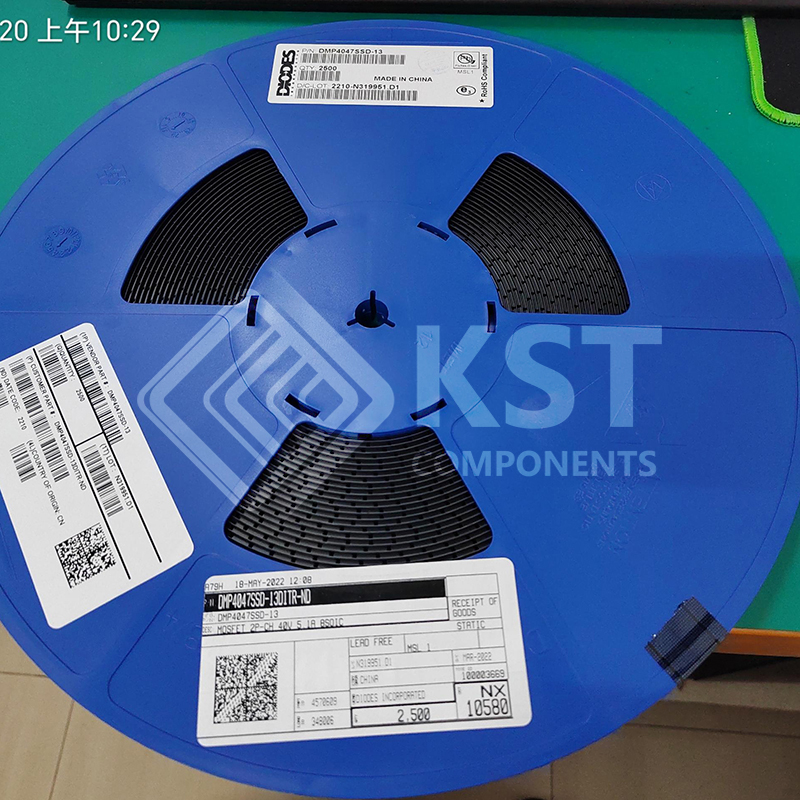

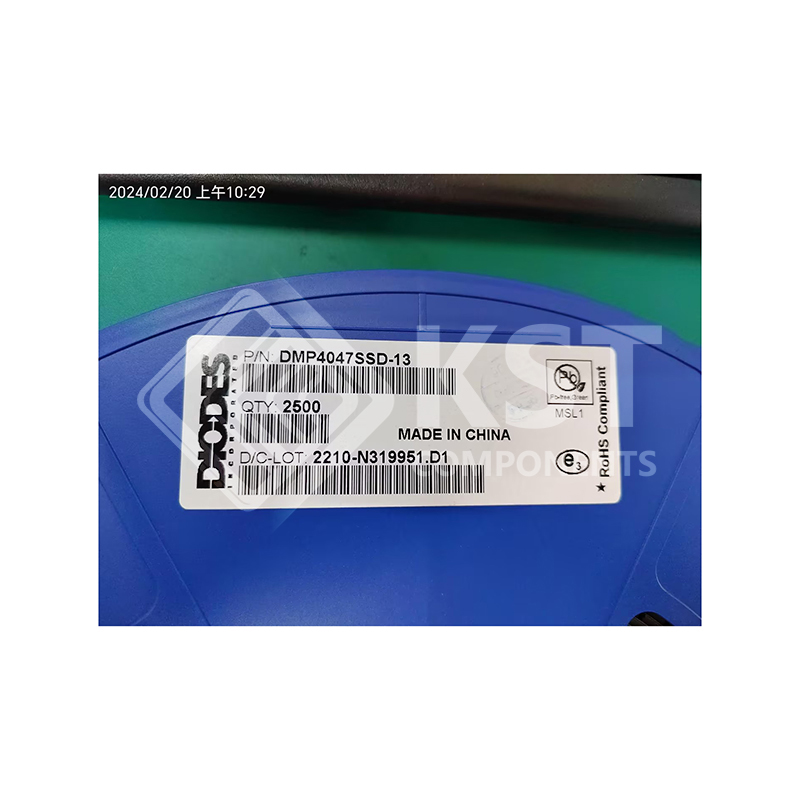

    DMP4047SSD-13

     Package: SO-8
     Package Material: Molded Plastic, “Green” Molding Compound.
    UL Flammability Classification Rating 94V-0
     Moisture Sensitivity: Level 1 per J-STD-020
     Terminal Connections: See Diagram
     Terminals: Finish – Tin Finish annealed over Copper Leadframe.
    Solderable per MIL-STD-202, Method 208
     Weight: 0.074 grams (Approximate)

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

       100% Unclamped Inductive Switching (UIS) Test in Production
       Low on-resistance
       Fast switching speed
       Totally Lead-Free & Fully RoHS Compliant (Note 1 & 2)
       Halogen and Antimony Free. “Green” Device (Note 3)
       For automotive applications requiring specific change
      control (i.e.: parts qualified to AEC-Q100/101/200, PPAP
      capable, and manufactured in IATF 16949 certified facilities),
      please refer to the related automotive grade (Q-suffix) part.
      A listing can be found at
      https://www.diodes.com/products/automotive/automotiveproducts/.
       This part is qualified to JEDEC standards (as references in
      AEC-Q) for High Reliability.
      https://www.diodes.com/quality/product-definitions/
       An Automotive-Compliant Part is Available Under Separate
      Datasheet (DMP4047SSDQ)
