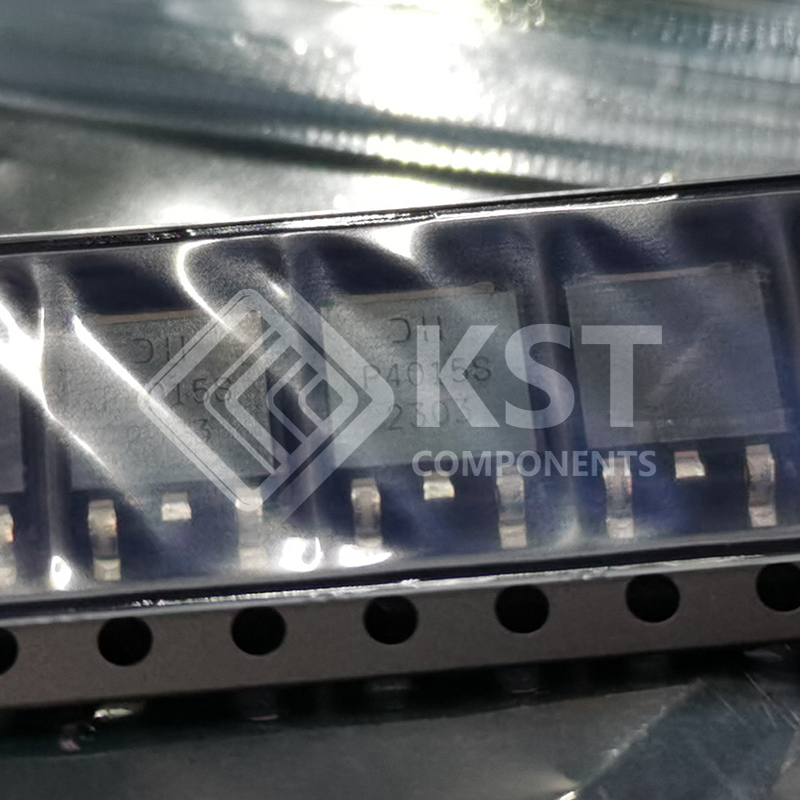

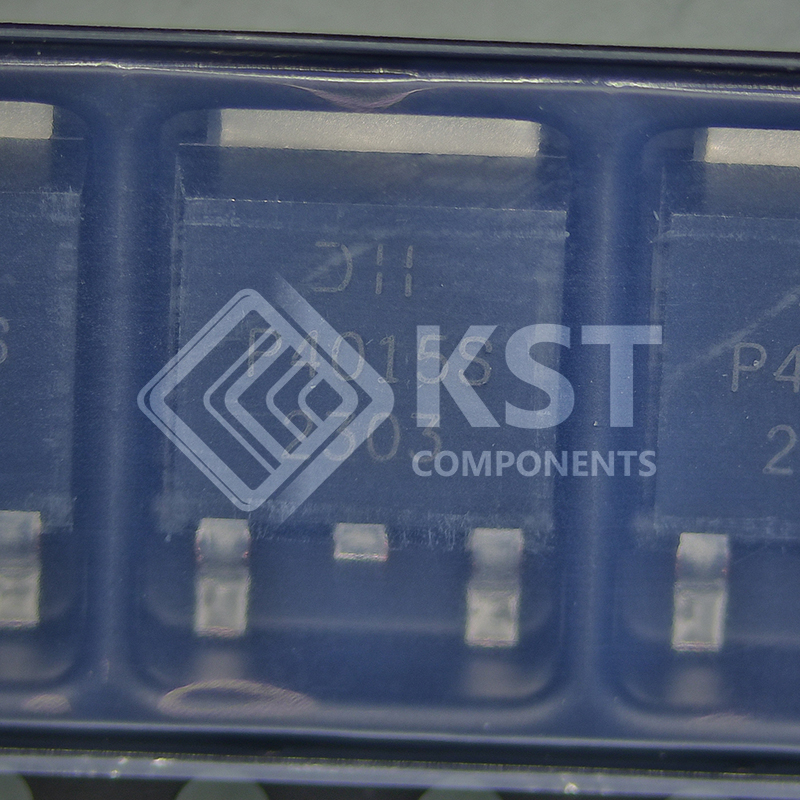

DMP4015SK3-13
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr
|
Diodes Incorporated
|
|
|
Series
|
–
|
|
|

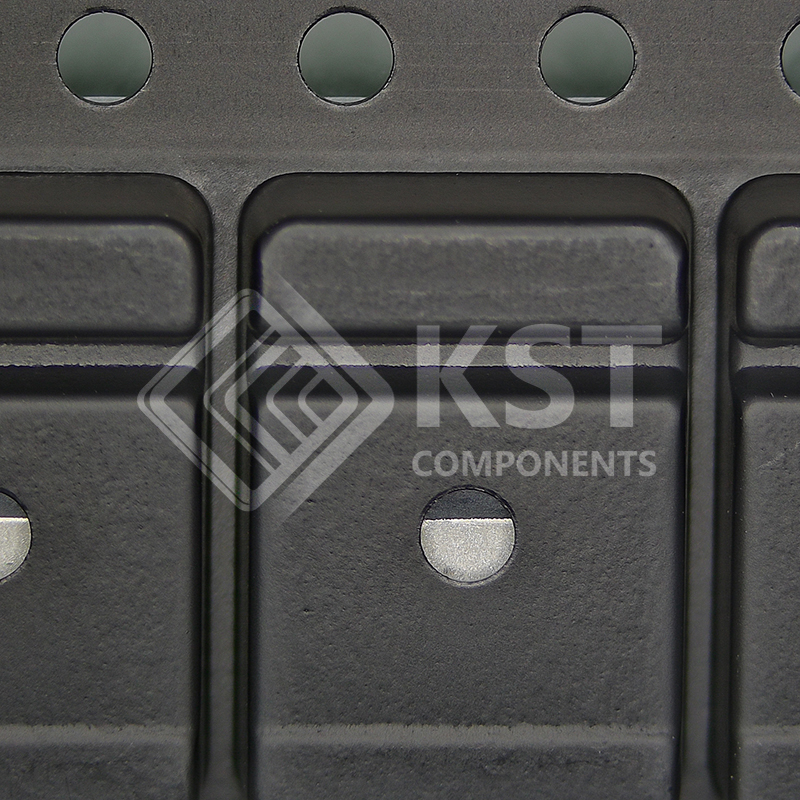

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
P-Channel
|
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
|
Drain to Source Voltage (Vdss)
|
40 V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
14A (Ta)
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs
|
11mOhm @ 9.8A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
2.5V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
47.5 nC @ 5 V
|
|
|
Vgs (Max)
|
±25V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
4234 pF @ 20 V
|
|
|
FET Feature
|
–
|
|
|
Power Dissipation (Max)
|
3.5W (Ta)
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
TO-252-3
|
|
|
Package / Case
|
TO-252-3, DPAK (2 Leads + Tab), SC-63
|
|
|
Base Product Number
|
DMP4015
|
