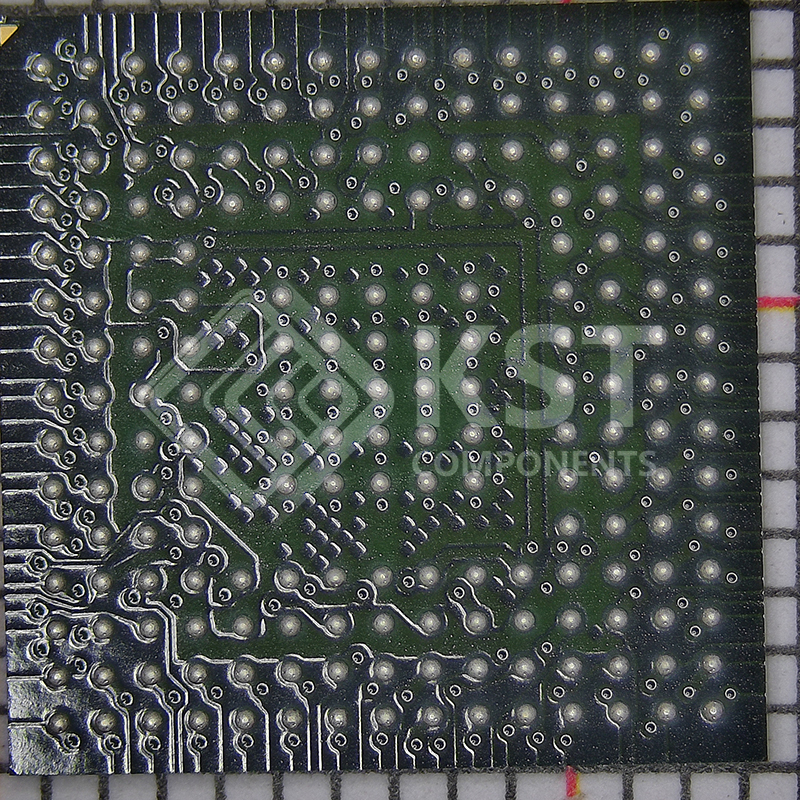

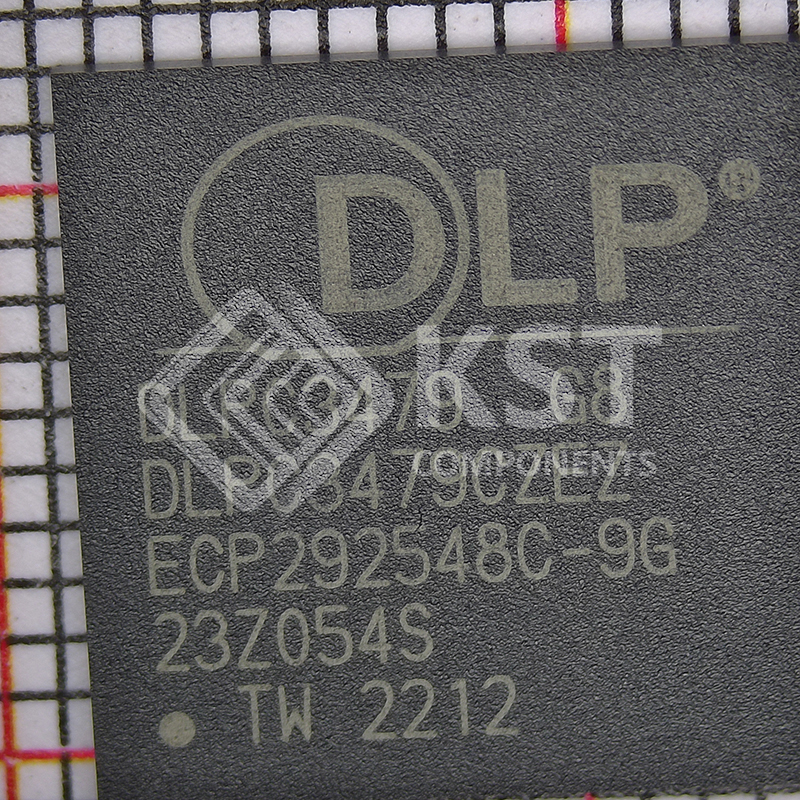

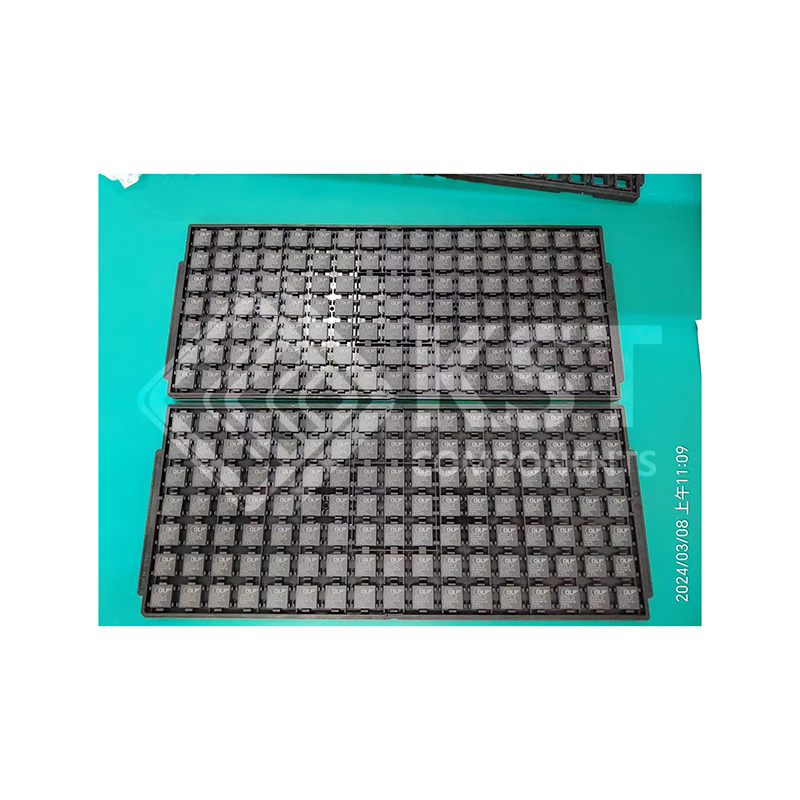

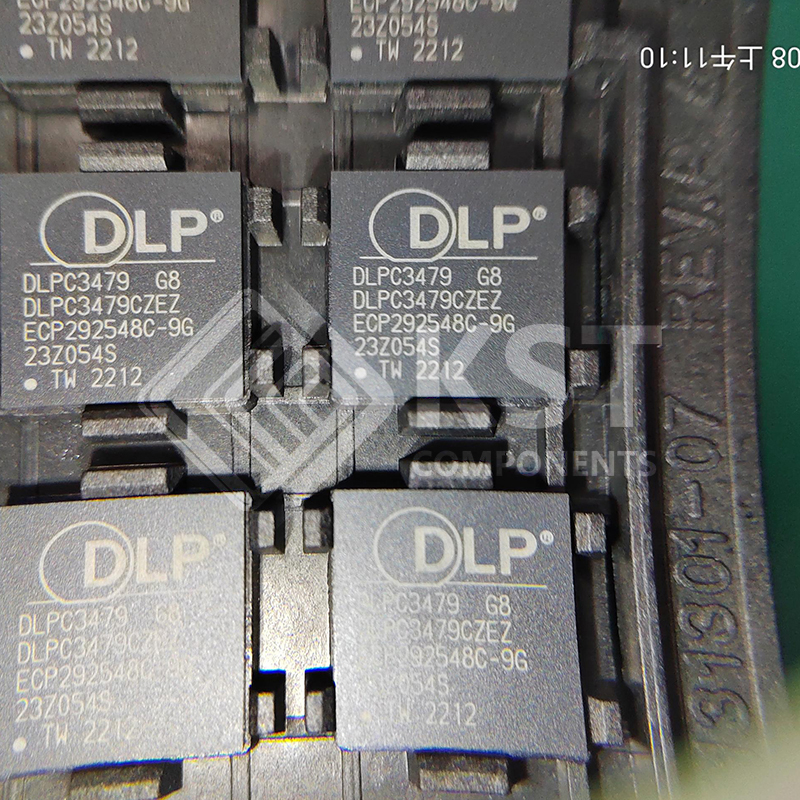

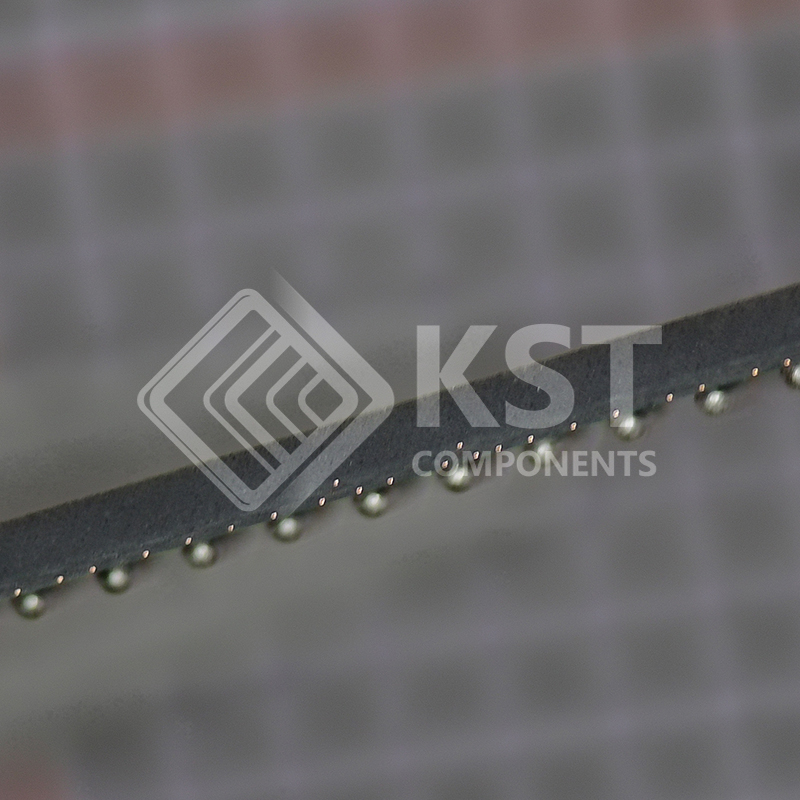

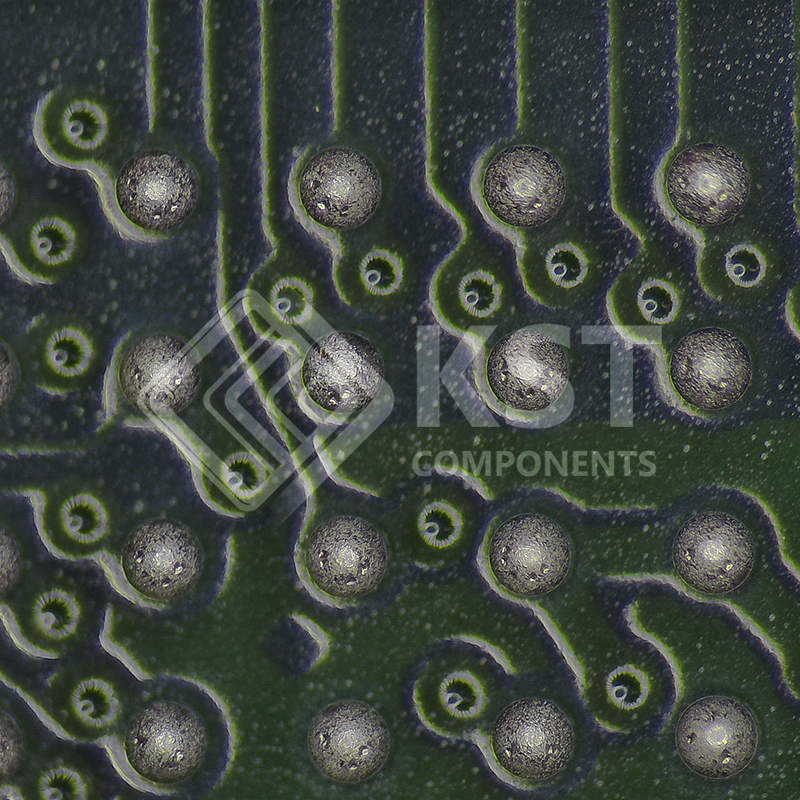

DLPC3479CZEZ

• Display and light controller for DLP4710LC (0.47
full HD) DMD
• Light control features:
– Pattern display optimized for machine vision
and digital exposure
– Flexible internal (1D) and external (2D) pattern
streaming modes
• Programmable exposure times
• High speed pattern rates up to 1440 Hz (1-
bit) and 180 Hz (8-bit)
– Programmable 2D static patterns
– Internal pattern streaming mode enables
simplified system design
• Eliminates the need for video interface
• Store > 1000 patterns in the flash memory
– Flexible trigger signals for camera or sensor
synchronization
• One configurable input trigger
• Two configurable output triggers
• Display features
– Supports input image sizes up to 1080p
– Input frame rates up to 120 Hz (60 Hz at 1080p
resolution)
– 24-bit, input pixel interface support:
• Parallel or BT656, interface protocols
• Pixel clock up to 155 MHz
– Image processing – IntelliBright™ algorithms,
image resizing, 1D keystone, programmable
degamma
• System features:
– I
2C control of device configuration
– Programmable splash screens
– Programmable LED current control
– Auto DMD parking at power down
