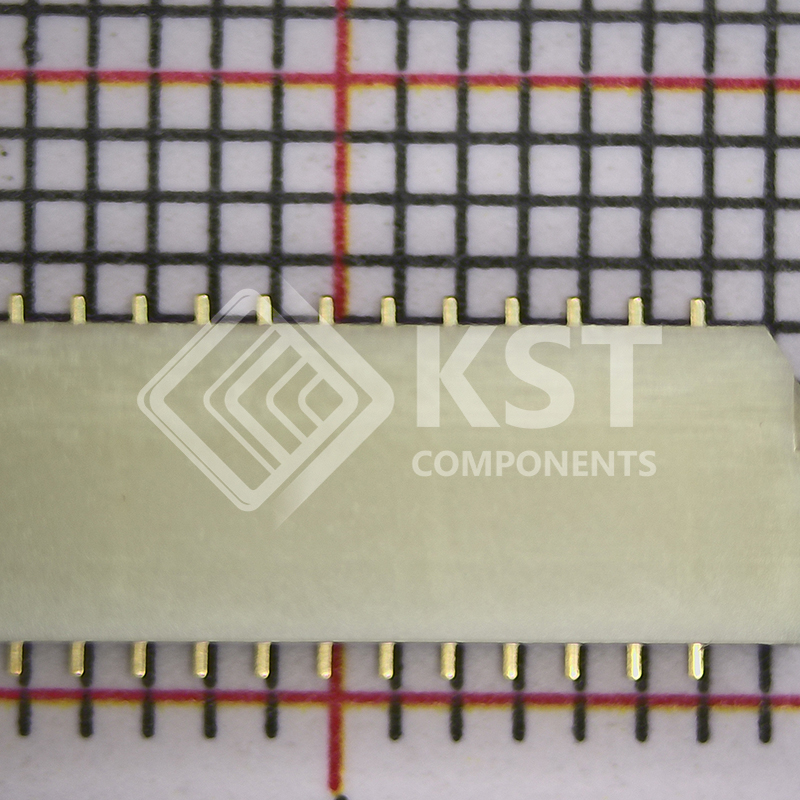

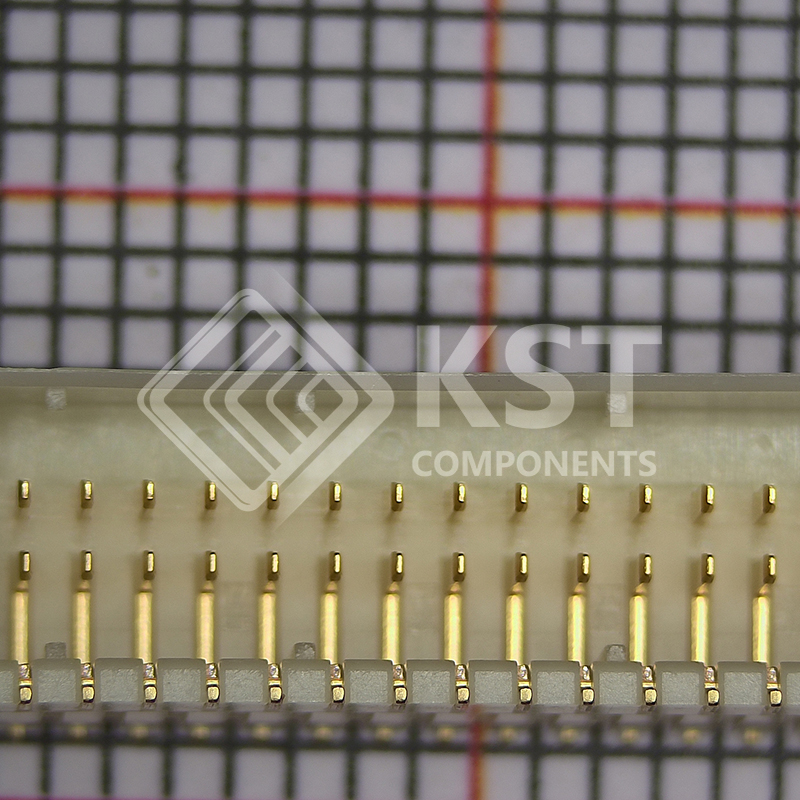

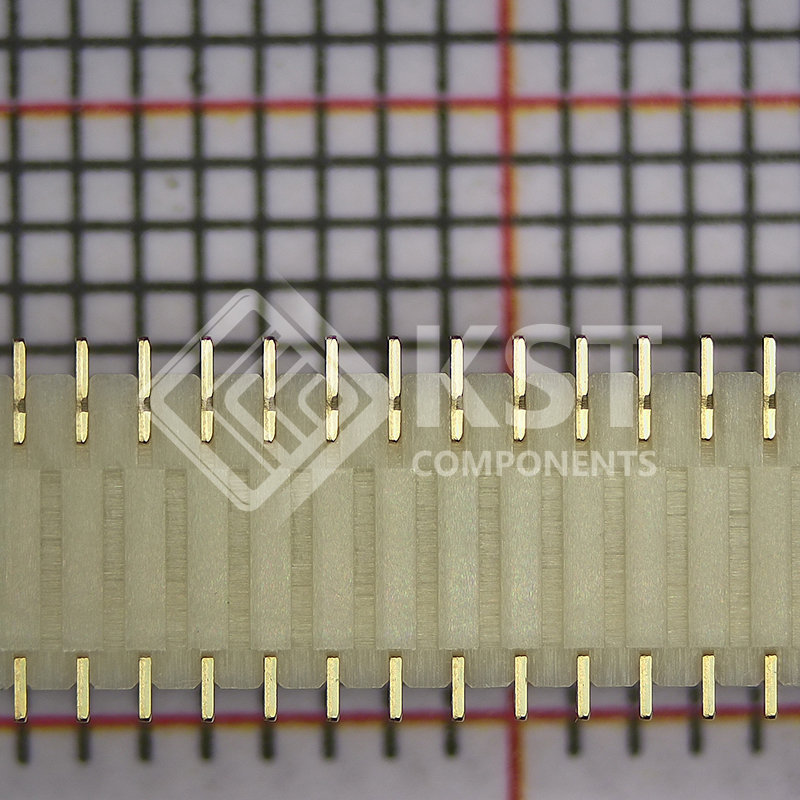

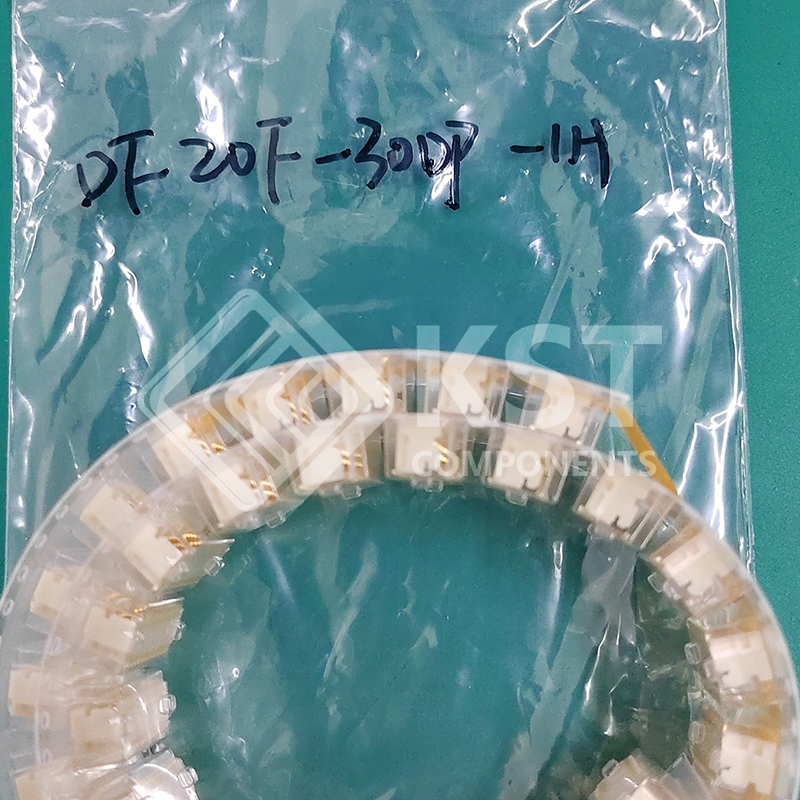

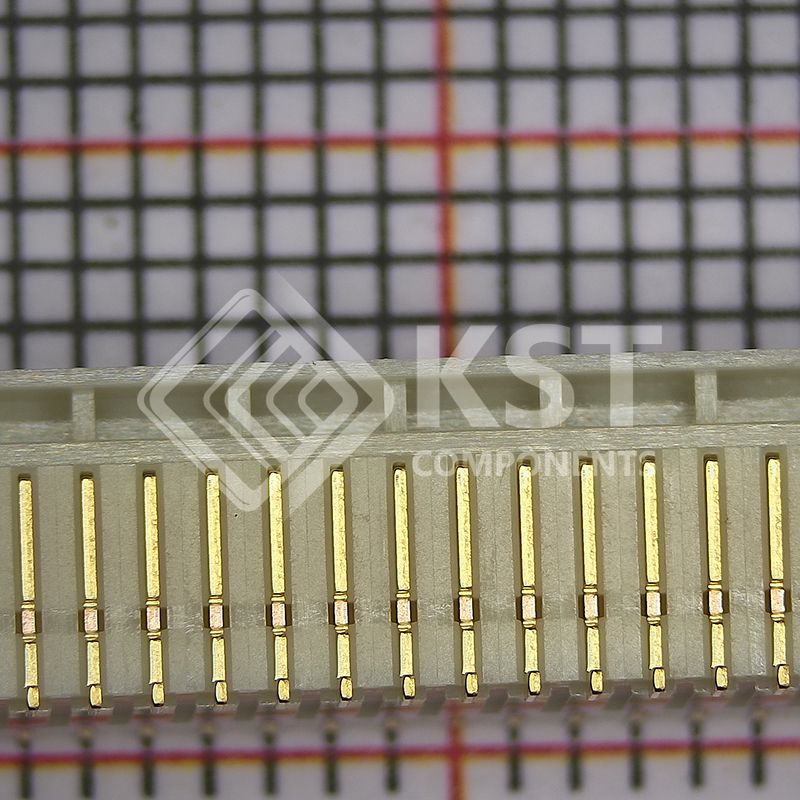

DF20F-30DP-1H(59)
INQUIRY ONLINE
| Mfr | Hirose Electric Co Ltd |
| Series | DF20 |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch – Mating | 0.039″ (1.00mm) |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Row Spacing – Mating | 0.039″ (1.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded – 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length – Mating | – |
| Contact Length – Post | – |
| Overall Contact Length | – |
| Insulation Height | 0.217″ (5.51mm) |
| Contact Shape | Square |
| Contact Finish – Mating | Tin |
| Contact Finish Thickness – Mating | 39.4µin (1.00µm) |
| Contact Finish – Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Solder Retention |
| Operating Temperature | -35°C ~ 85°C |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 1A |
| Voltage Rating | 100V |
| Mated Stacking Heights | – |
| Contact Finish Thickness – Post | – |
| Applications | – |
| Base Product Number | DF20F |
