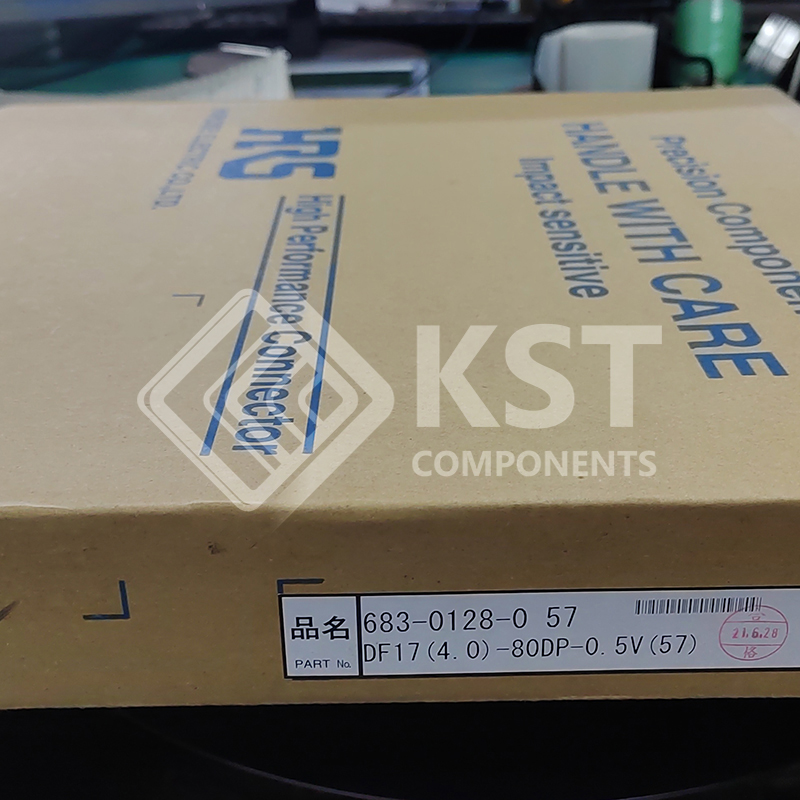

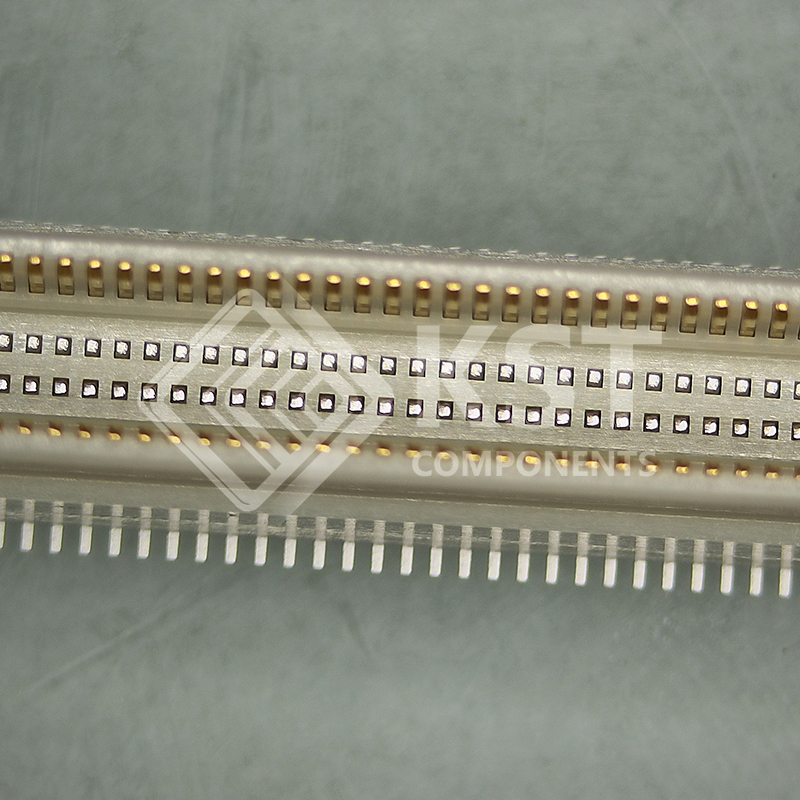

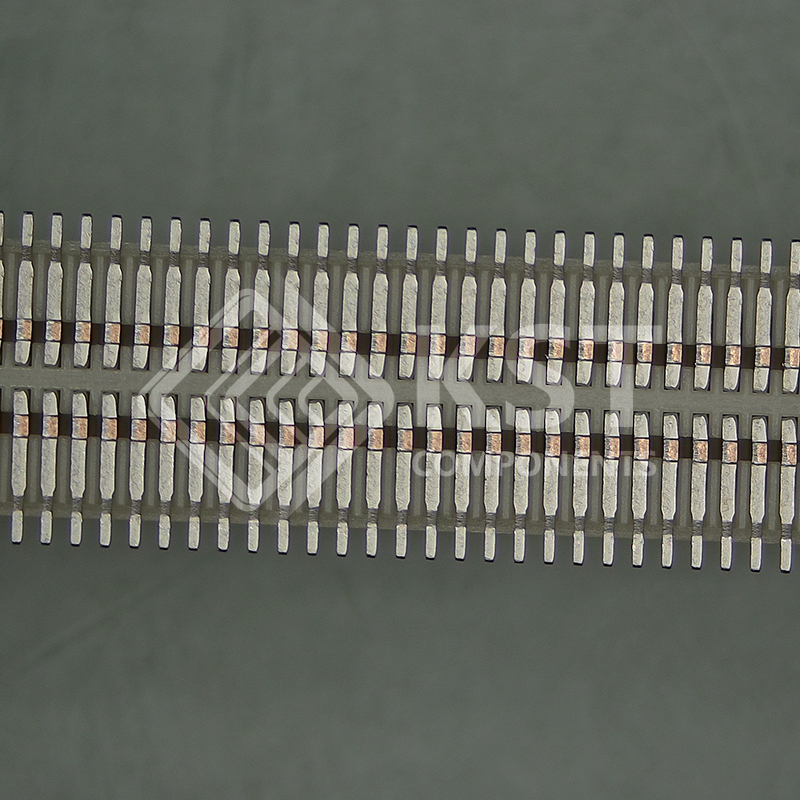

DF17(4.0)-80DP-0.5V(57)
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Rectangular Connectors
Arrays, Edge Type, Mezzanine (Board to Board)
|
|
|
Manufacturer
|
Hirose Electric Co Ltd
|
|
|
Series
|
DF17
|
|
|
Packaging
|

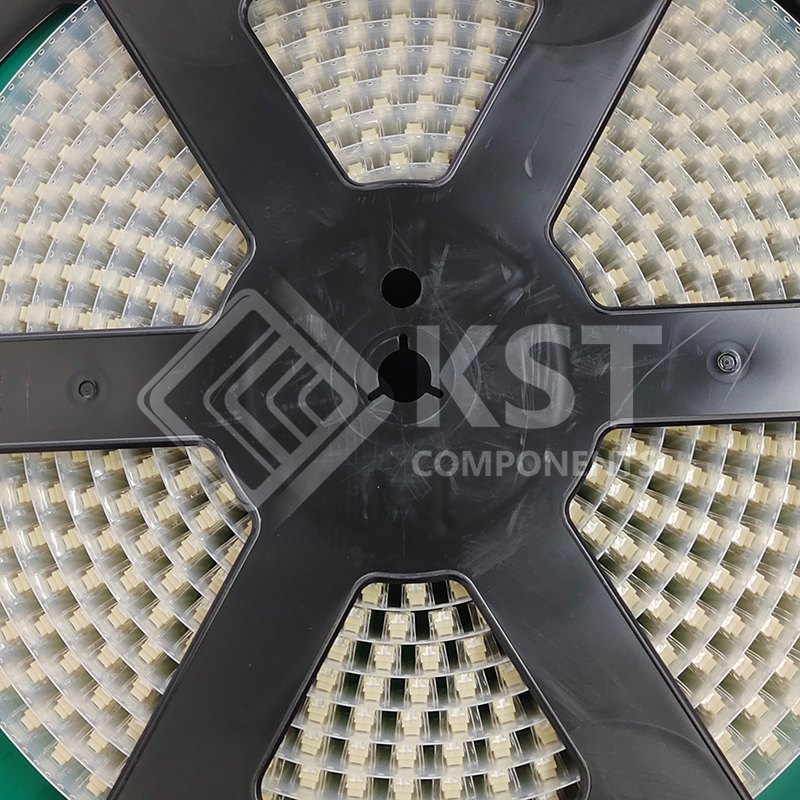

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Header, Outer Shroud Contacts
|
|
|
Number of Positions
|
80
|
|
|
Pitch
|
0.020″ (0.50mm)
|
|
|
Number of Rows
|
2
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Features
|
Board Guide, Solder Retention
|
|
|
Contact Finish
|
Gold
|
|
|
Contact Finish Thickness
|
–
|
|
|
Mated Stacking Heights
|
7mm, 8mm
|
|
|
Height Above Board
|
0.248″ (6.30mm)
|
|
|
Base Product Number
|
DF17(4.0)
|
