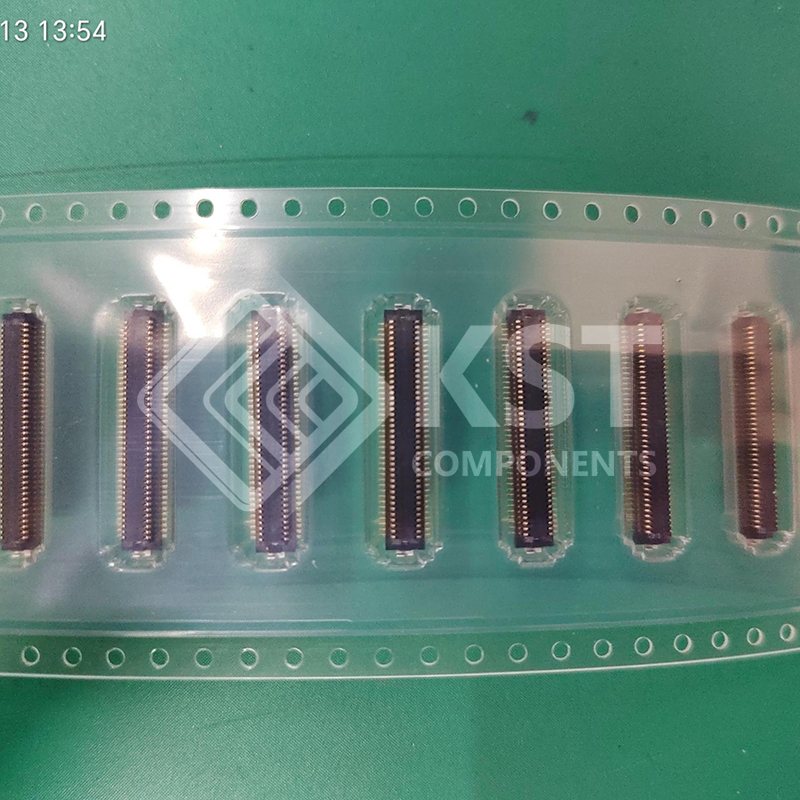

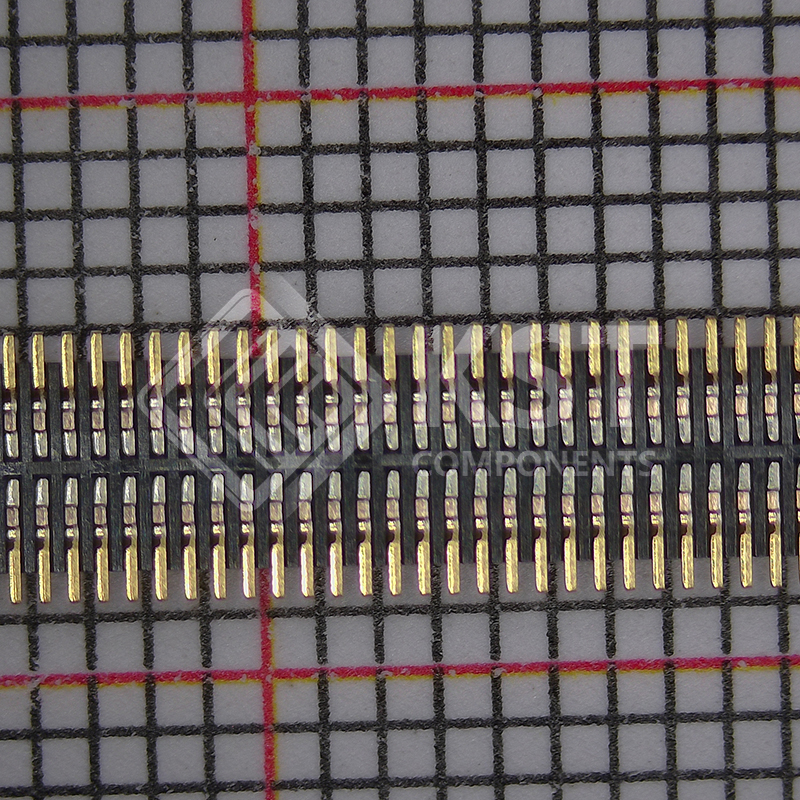

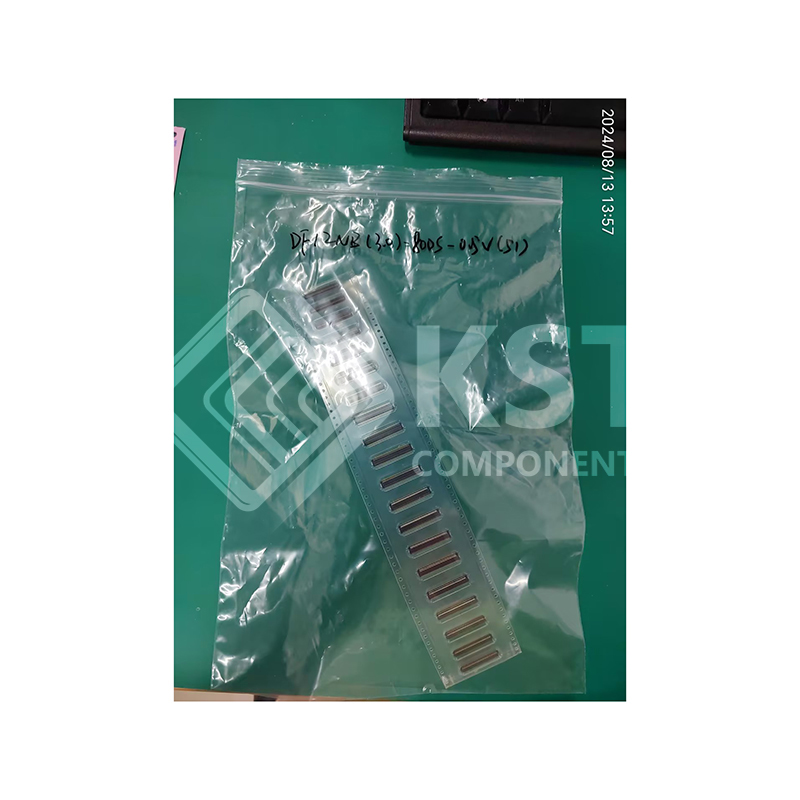

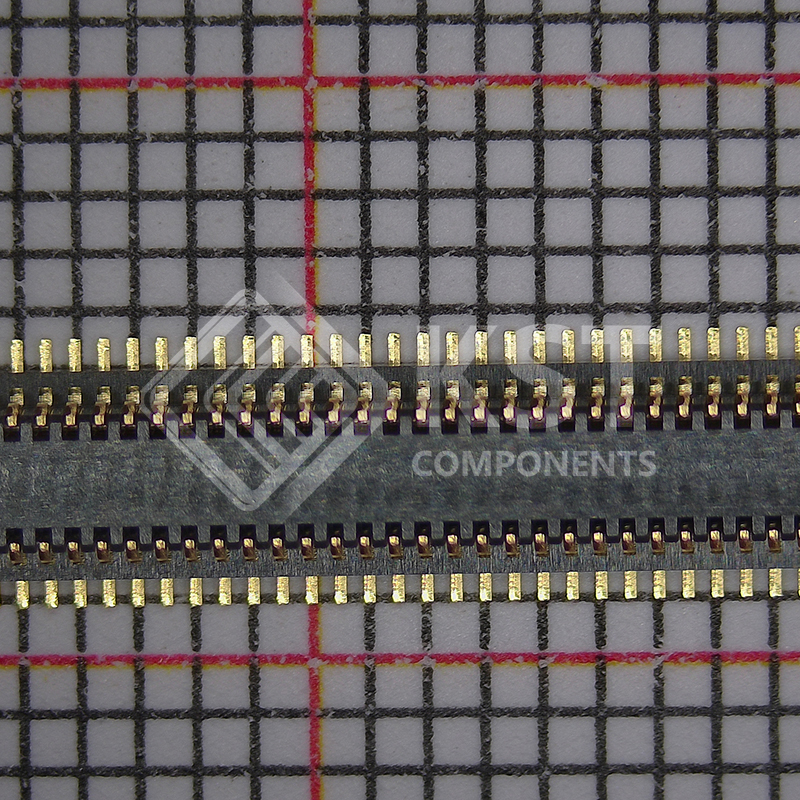

DF12NB(3.0)-80DS-0.5V(51)

CONN RCPT 80POS SMD GOLD


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Category
    Connectors, Interconnects
    Rectangular Connectors
    Arrays, Edge Type, Mezzanine (Board to Board)
    Manufacturer
    Hirose Electric Co Ltd
    Series
    DF12

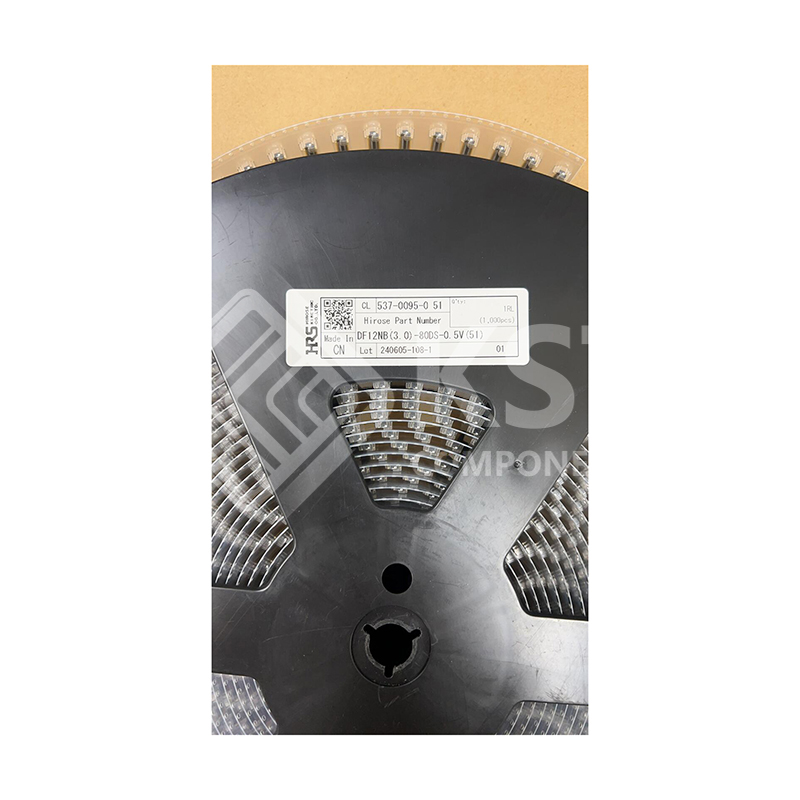

    Packaging
    Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status
    Active
    Connector Type
    Receptacle, Center Strip Contacts
    Number of Positions
    80
    Pitch
    0.020″ (0.50mm)
    Number of Rows
    2
    Mounting Type
    Surface Mount
    Features
    Solder Retention
    Contact Finish
    Gold
    Contact Finish Thickness
    8.00µin (0.203µm)
    Mated Stacking Heights
    3mm
    Height Above Board
    0.087″ (2.20mm)
    Base Product Number
    DF12NB(3.0)
