DF11-4DP-2DSA(24)
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr
|
Hirose Electric Co Ltd
|
|
|
Series
|
DF11
|
|
|

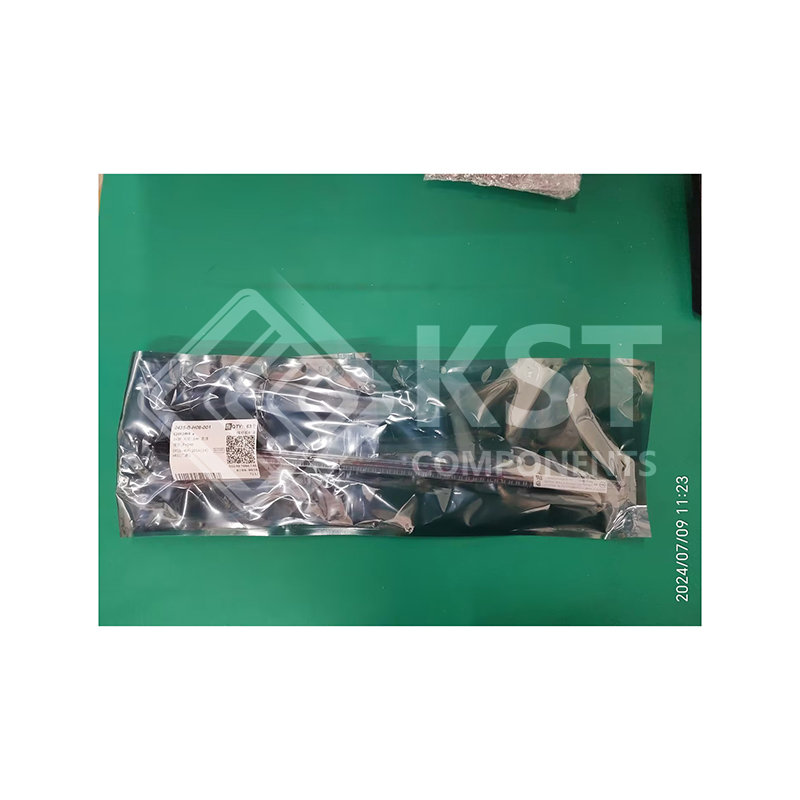

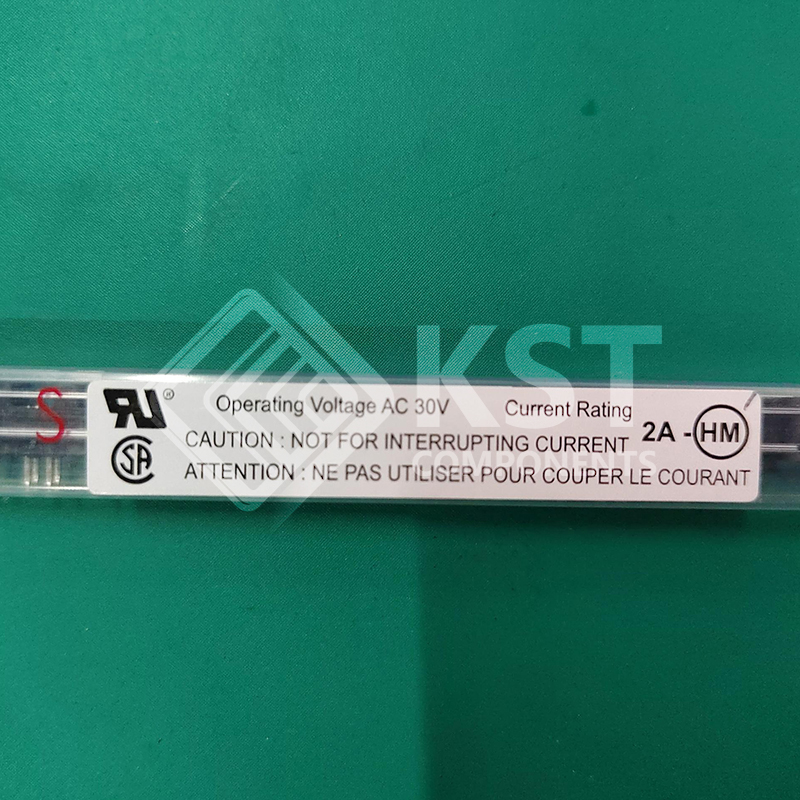

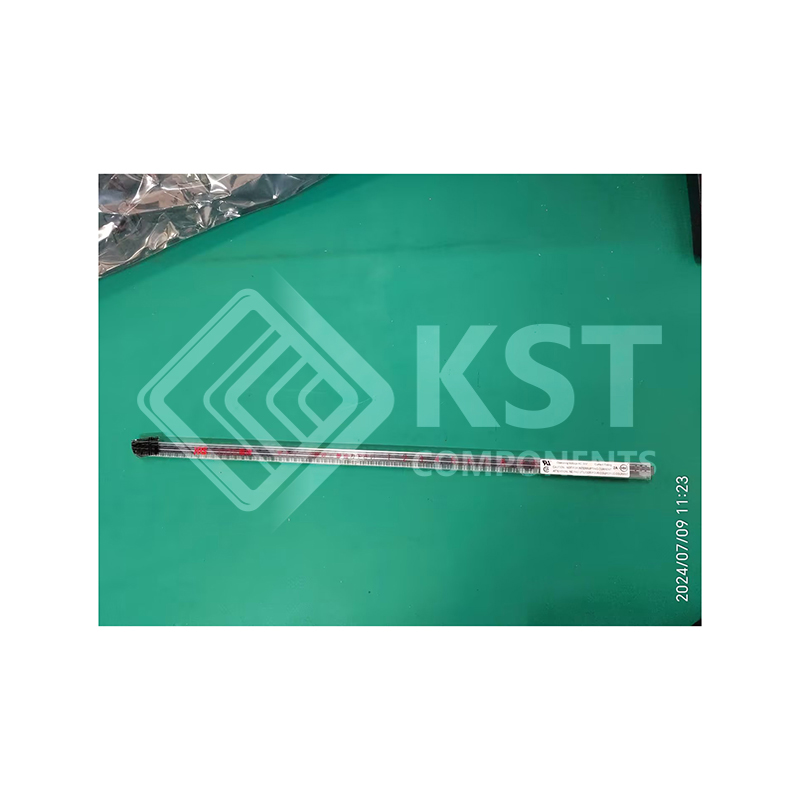

Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Header
|
|
|
Contact Type
|
Male Pin
|
|
|
Pitch – Mating
|
0.079″ (2.00mm)
|
|
|
Number of Positions
|
4
|
|
|
Number of Rows
|
2
|
|
|
Row Spacing – Mating
|
0.079″ (2.00mm)
|
|
|
Number of Positions Loaded
|
All
|
|
|
Style
|
Board to Board or Cable
|
|
|
Shrouding
|
Shrouded – 4 Wall
|
|
|
Mounting Type
|
Through Hole
|
|
|
Termination
|
Solder
|
|
|
Fastening Type
|
Detent Lock
|
|
|
Contact Length – Mating
|
0.118″ (3.00mm)
|
|
|
Contact Length – Post
|
0.118″ (3.00mm)
|
|
|
Overall Contact Length
|
0.299″ (7.60mm)
|
|
|
Insulation Height
|
0.260″ (6.60mm)
|
|
|
Contact Shape
|
Square
|
|
|
Contact Finish – Mating
|
Tin
|
|
|
Contact Finish Thickness – Mating
|
39.4µin (1.00µm)
|
|
|
Contact Finish – Post
|
Tin
|
|
|
Contact Material
|
Brass
|
|
|
Insulation Material
|
Polyamide (PA), Nylon
|
|
|
Features
|
–
|
|
|
Operating Temperature
|
-30°C ~ 85°C
|
|
|
Ingress Protection
|
–
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Insulation Color
|
Black
|
|
|
Current Rating (Amps)
|
2A
|
|
|
Voltage Rating
|
250V
|
|
|
Mated Stacking Heights
|
7.55, 7.8mm, 8.9mm
|
|
|
Contact Finish Thickness – Post
|
–
|
|
|
Applications
|
–
|
|
|
Base Product Number
|
DF11
|
