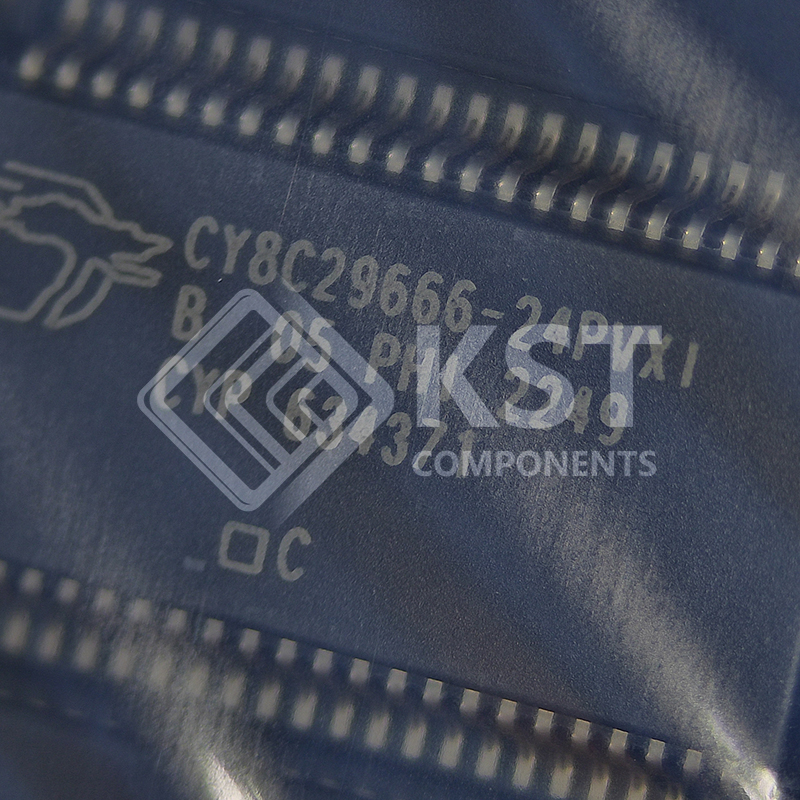

CY8C29666-24PVXIT

■ Powerful Harvard-architecture processor
❐ M8C processor speeds to 24 MHz
❐ Two 8 × 8 multiply, 32-bit accumulate
❐ Low power at high speed
❐ Operating voltage: 3.0 V to 5.25 V
❐ Operating voltages down to 1.0 V using on-chip switch mode
pump (SMP)
❐ Industrial temperature range: –40 °C to +85 °C
■ Advanced peripherals (PSoC® blocks)
❐ 12 rail-to-rail analog PSoC blocks provide:
• Up to 14-bit analog-to-digital converters (ADCs)
• Up to 9-bit digital-to-analog converters (DACs)
• Programmable gain amplifiers (PGAs)
• Programmable filters and comparators
❐ 16 digital PSoC blocks provide:
• 8- to 32-bit timers and counters, 8- and 16-bit pulse-width
modulators (PWMs)
• Cyclical redundancy check (CRC) and pseudo random
sequence (PRS) modules
• Up to four full-duplex universal asynchronous receiver
transmitters (UARTs)
• Multiple serial peripheral interface (SPI) masters or slaves
• Can connect to all general-purpose I/O (GPIO) pins
❐ Create complex peripherals by combining blocks
■ Precision, programmable clocking
❐ Internal ±5% [1] 24- / 48-MHz main oscillator
❐ 24- / 48-MHz with optional 32.768 kHz crystal
❐ Optional external oscillator, up to 24 MHz
❐ Internal oscillator for watchdog and sleep
■ Flexible on-chip memory
❐ 32 KB flash program storage 50,000 erase/write cycles
❐ 2 KB static random access memory (SRAM) data storage
❐ In-system serial programming (ISSP)
❐ Partial flash updates
❐ Flexible protection modes
❐ Electrically erasable programmable read-only memory
(EEPROM) emulation in flash
■ Programmable pin configurations
❐ 25-mA sink, 10-mA source on all GPIOs
❐ Pull-up, pull-down, high Z, strong, or open-drain drive modes
on all GPIOs
❐ Eight standard analog inputs on GPIOs, plus four additional
analog inputs with restricted routing
❐ Four 40 mA analog outputs on GPIOs
❐ Configurable interrupt on all GPIOs
■ Additional system resources
❐ I
2C slave, master, and multi-master to 400 kHz
❐ Watchdog and sleep timers
❐ User-configurable low-voltage detection (LVD)
❐ Integrated supervisory circuit
❐ On-chip precision voltage reference
■ Complete development tools
❐ Free development software (PSoC Designer™)
❐ Full-featured in-circuit emulator (ICE) and
programmer
❐ Full-speed emulation
❐ Complex breakpoint structure
❐ 128 KB trace memory
❐ Complex events
❐ C compilers, assembler, and linker
