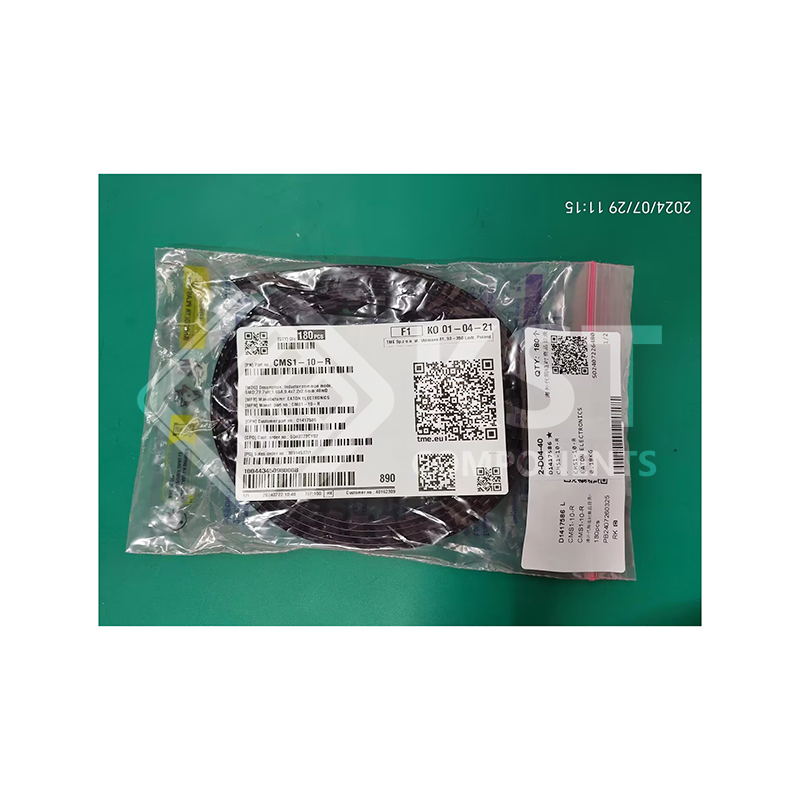

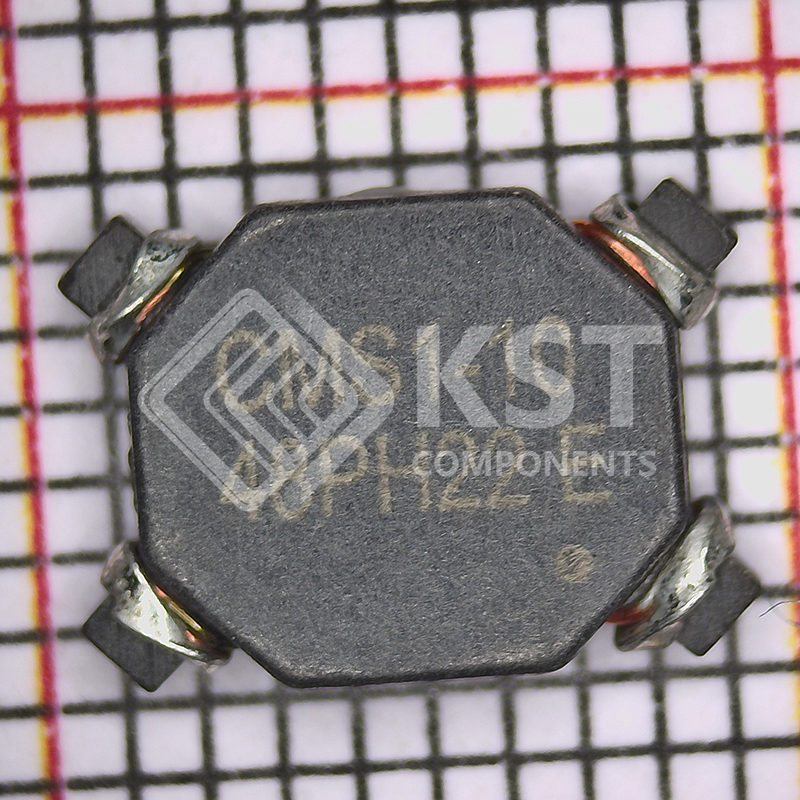

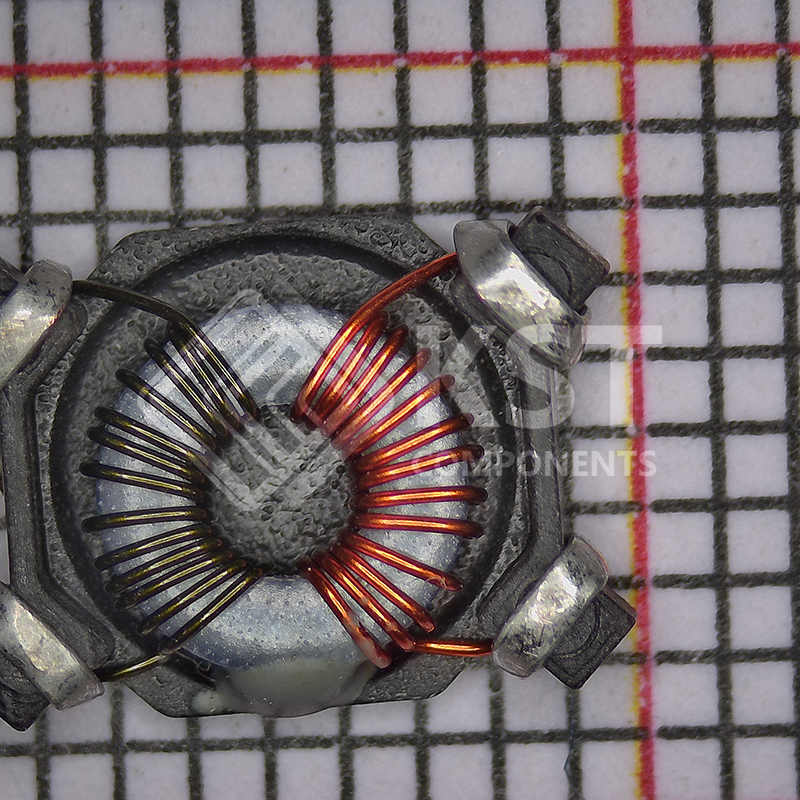

CMS1-10-R
INQUIRY ONLINE
|
Category
|
Filters
Common Mode Chokes
|
|
|
Manufacturer
|
Eaton – Electronics Division
|
|
|
Series
|
CMS
|
|
|
Packaging
|

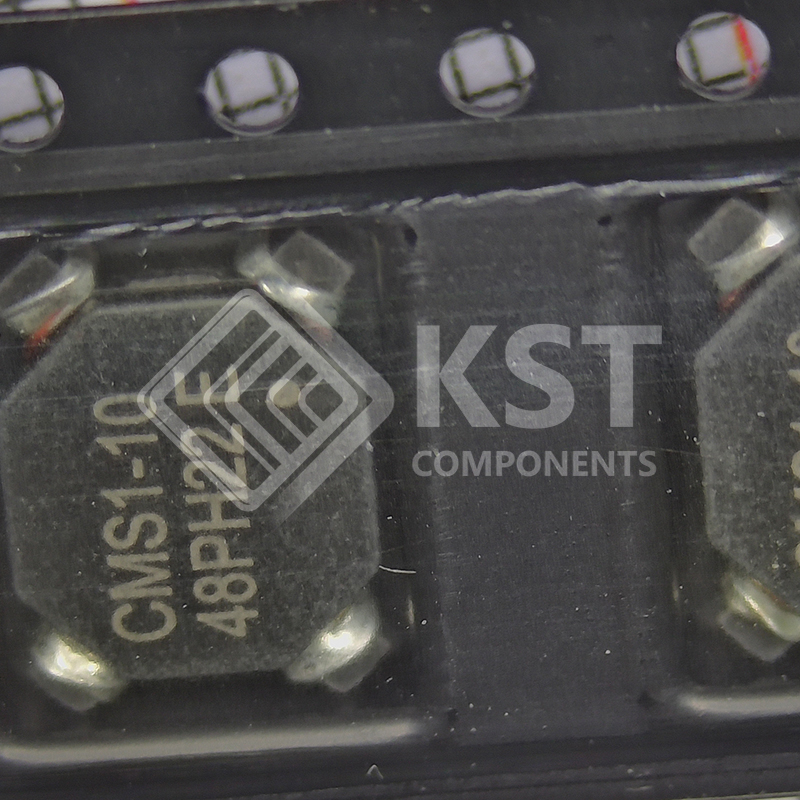

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Filter Type
|
Power Line
|
|
|
Number of Lines
|
2
|
|
|
Inductance @ Frequency
|
73.7 µH @ 100 kHz
|
|
|
Current Rating (Max)
|
1.65A
|
|
|
DC Resistance (DCR) (Max)
|
48mOhm (Typ)
|
|
|
Voltage Rating – DC
|
–
|
|
|
Voltage Rating – AC
|
–
|
|
|
Operating Temperature
|
-40°C ~ 160°C
|
|
|
Ratings
|
–
|
|
|
Approval Agency
|
–
|
|
|
Features
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Size / Dimension
|
0.370″ L x 0.283″ W (9.40mm x 7.20mm)
|
|
|
Height (Max)
|
0.102″ (2.60mm)
|
|
|
Package / Case
|
Horizontal, 4 PC Pad
|
