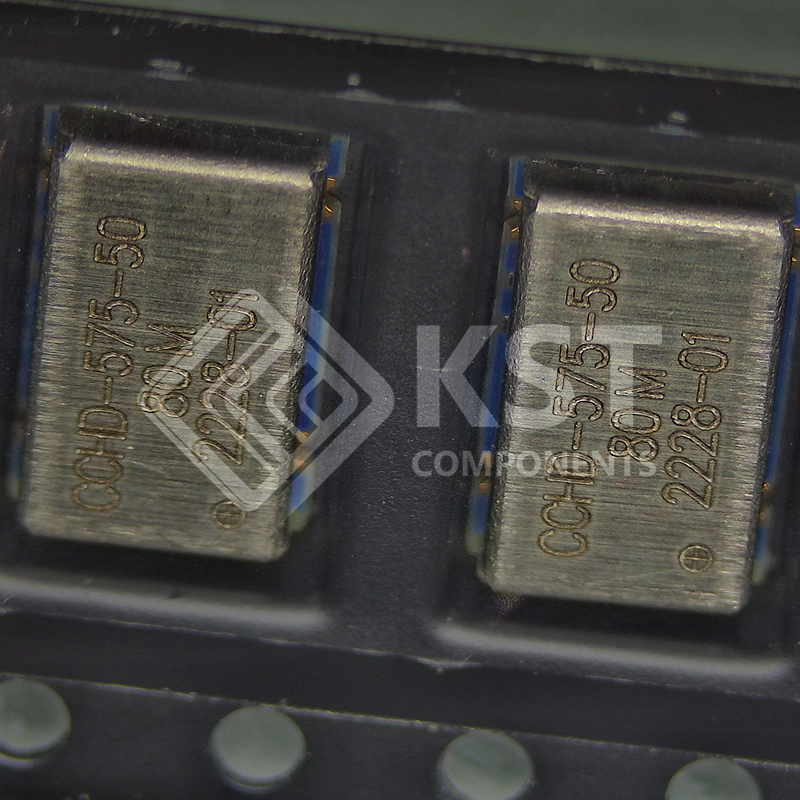

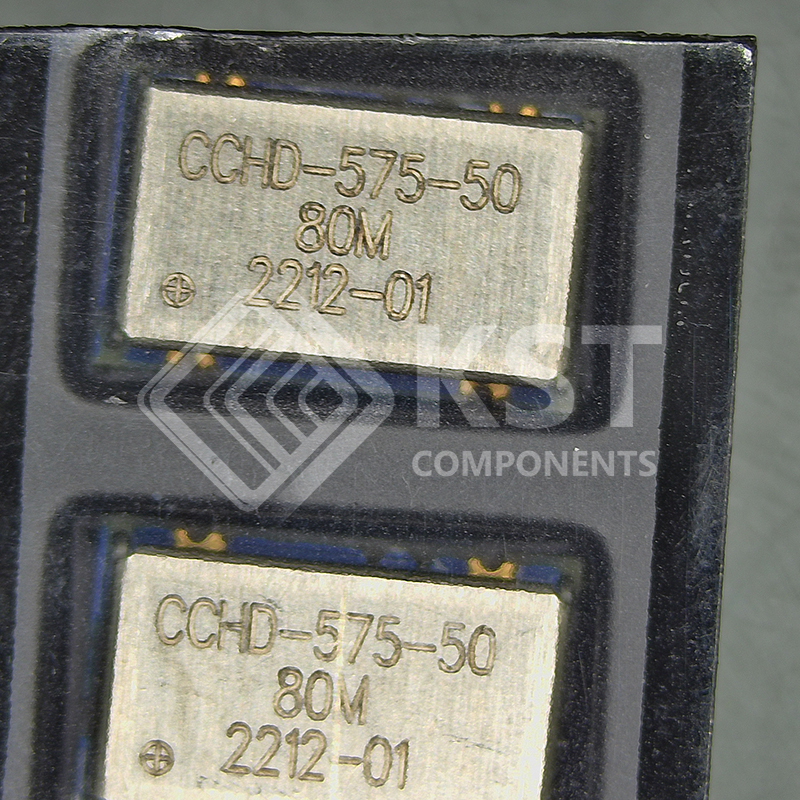

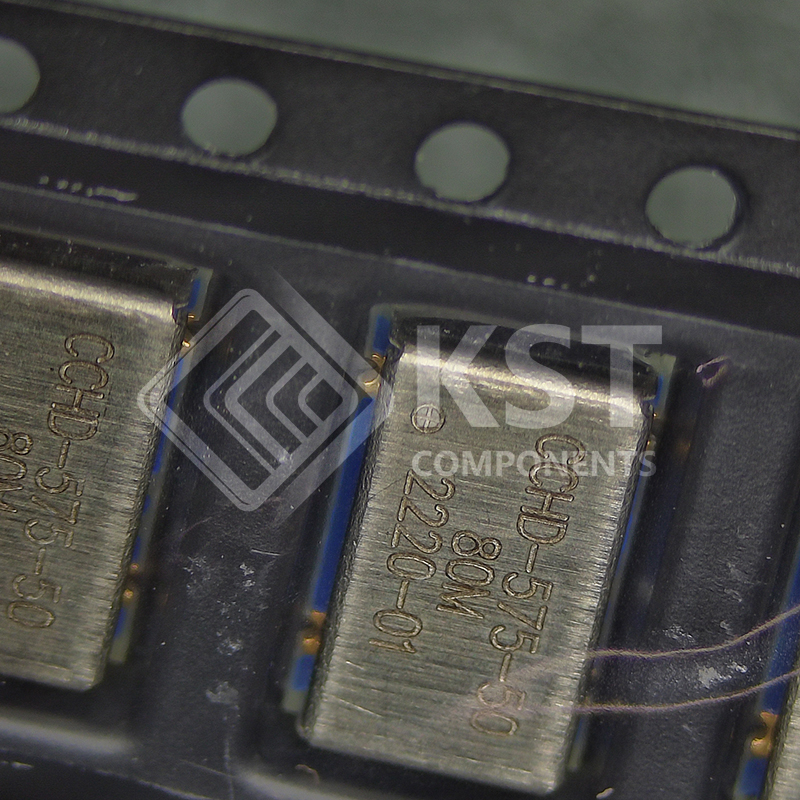

CCHD-575-50-80.000

Model CCHD-575 is the industry’s lowest jitter clock oscillator in a 5×7.5 mm package. It features a
typical phase jitter of 82fs RMS at 100 MHz. Close-in phase noise is -90 dBc/Hz @ 10 Hz while its
floor is at -168 dBc/Hz. This oscillator may be small in size but it packs a punch inside. Its output
driver is capable of driving ±24mA. This translates to a rise/fall time of ~600ps at 100 MHz with a
15pF load.
Applications include
DACs
ADCs
Low Phase Signal Sources
Test and Measurement

Category: Crystals and Oscillators

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE

SPECIFICATION

Frequency Range: 12 MHz to 125 MHz*
Temperature Range: 0°C to +70°C
(Option M) -20°C to +70°C
(Option X) -40°C to +85°C
Storage: -45°C to 90°C
Input Voltage: 3.3V ±0.3V
Input Current: 15mA Typical, 25mA Max
Output: HCMOS
Symmetry: 45/55% Max @ 50% Vdd
Rise/Fall Time: 2ns Max @ 20% to 80% Vdd
Logic: “0” = 10% Vdd Max
“1” = 90% Vdd Min
Load: 15pF
Output Current: ±24mA Max
Phase Jitter: (12kHz~80MHz) 82fs RMS Typical @ 100 MHz
Phase Noise Typical: See plot
Phase Noise Floor: -168 dBc/Hz Typical, -165 dBc/Hz Max
Sub-harmonics: None
Aging: <3ppm 1st year, <1ppm thereafter
CCHD-575 Options:
Temperature Range: 0°C to +70°C (±20ppm, ±25ppm, ±50ppm)
-20°C to +70°C (±25ppm, ±50ppm)
-40°C to +85°C (±25ppm, ±50ppm)
Part Number Example:
CCHD-575X-25-100.000 = 3.3V, 45/55, -40°C to +85°C (±25ppm), 100 MHz
