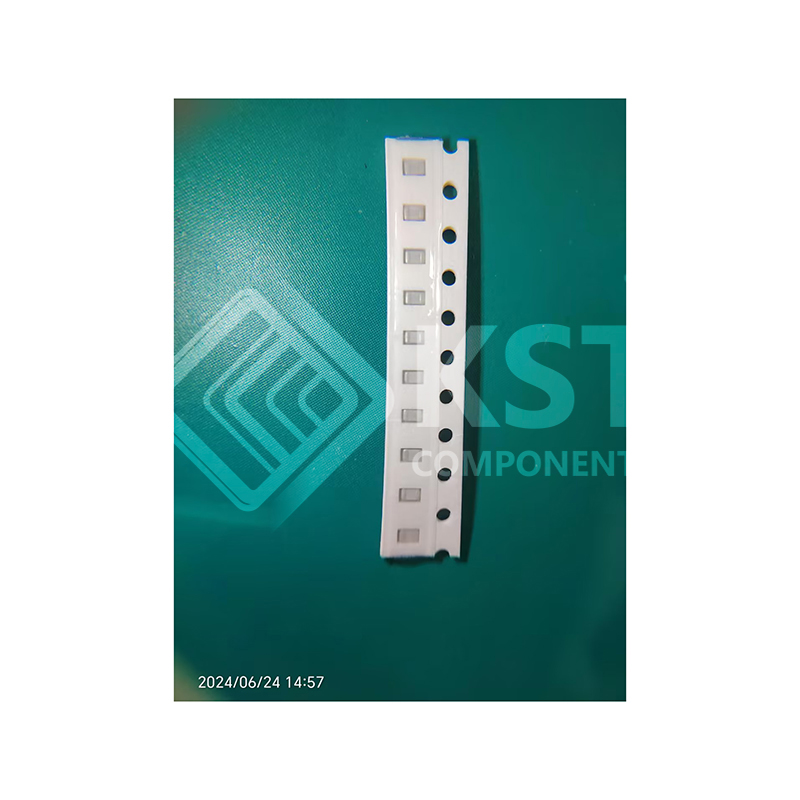

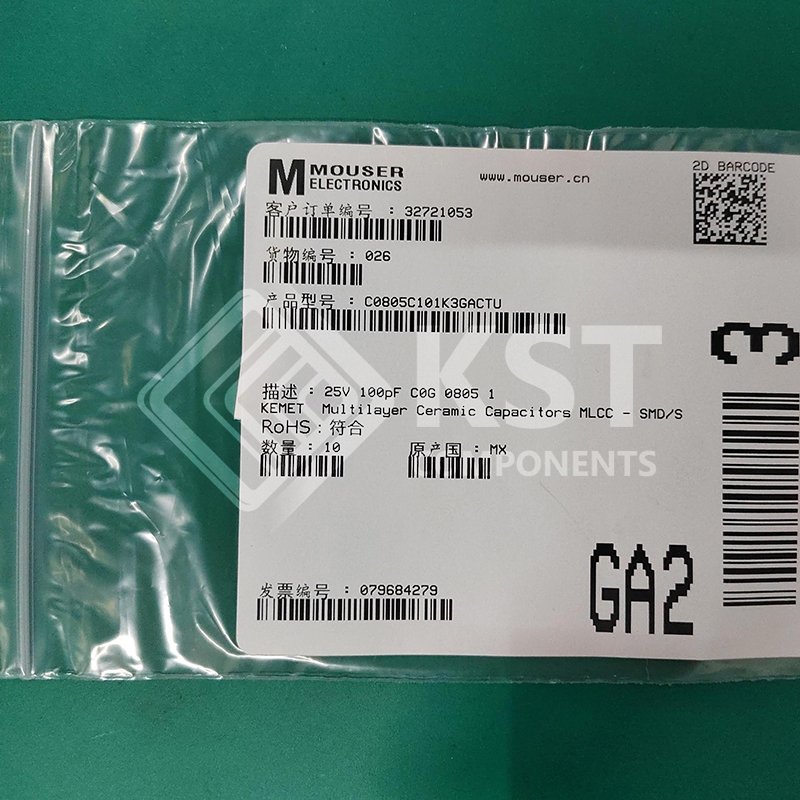

C0805C101K3GACTU

KEMET’s C0G dielectric features a 125°C maximum
operating temperature and is considered “stable.”
The Electronics Components, Assemblies & Materials
Association (EIA) characterizes C0G dielectric as a
Class I material. Components of this classification are
temperature compensating and are suited for resonant
circuit applications or those where Q and stability of
capacitance characteristics are required. C0G exhibits no
change in capacitance with respect to time and voltage and
boasts a negligible change in capacitance with reference to
ambient temperature. Capacitance change is limited to
±30 ppm/ºC from −55°C to +125°C.

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • −55°C to +125°C operating temperature range
    • Lead (Pb)-free, RoHS, and REACH compliant
    • EIA 0201, 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825,
    2220, and 2225 case sizes
    • DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V, 200 V, and
    250 V
    • Capacitance offerings ranging from 0.5 pF up to 0.47 μF
    • Available capacitance tolerances of ±0.10 pF, ±0.25 pF,
    ±0.5 pF, ±1%, ±2%, ±5%, ±10%, and ±20%
    • No piezoelectric noise
    • Extremely low ESR and ESL
    • High thermal stability
    • High ripple current capability
