BZX84-C12,215

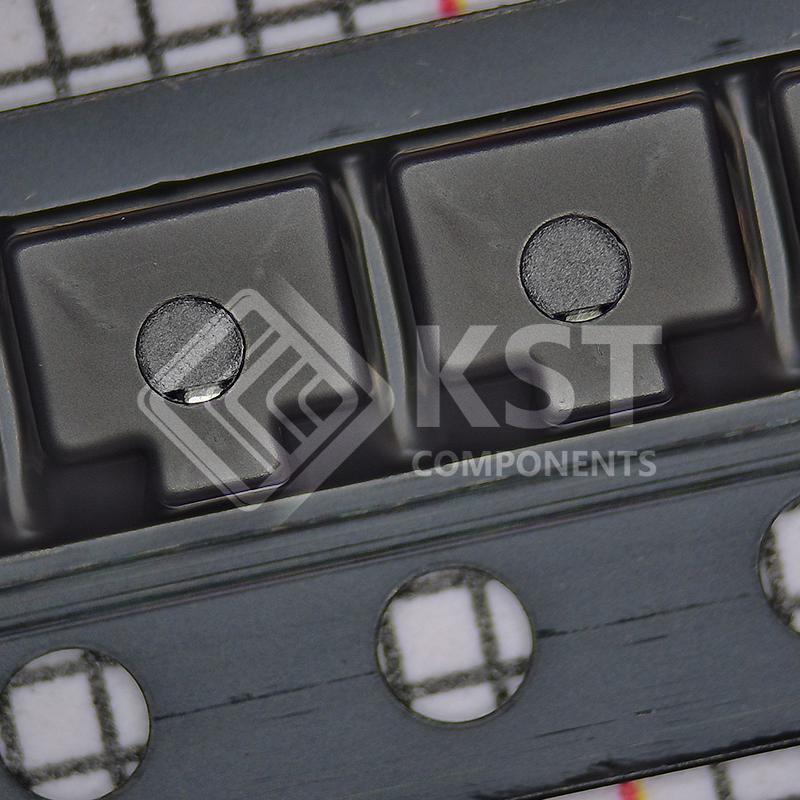

Low-power voltage regulator diodes in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD)
plastic package.
The diodes are available in the normalized E24 ±1 % (BZX84-A), ±2 % (BZX84-B) and
approximately ±5 % (BZX84-C) tolerance range. The series includes 37 breakdown voltages with
nominal working voltages from 2.4 V to 75 V.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Total power dissipation: ≤250 mW
    • Three tolerance series: ±1 %, ±2 % and approximately ±5 %
    • Working voltage range: nominal 2.4 V to 75 V (E24 range)
    • Non-repetitive peak reverse power dissipation: ≤ 40 W
