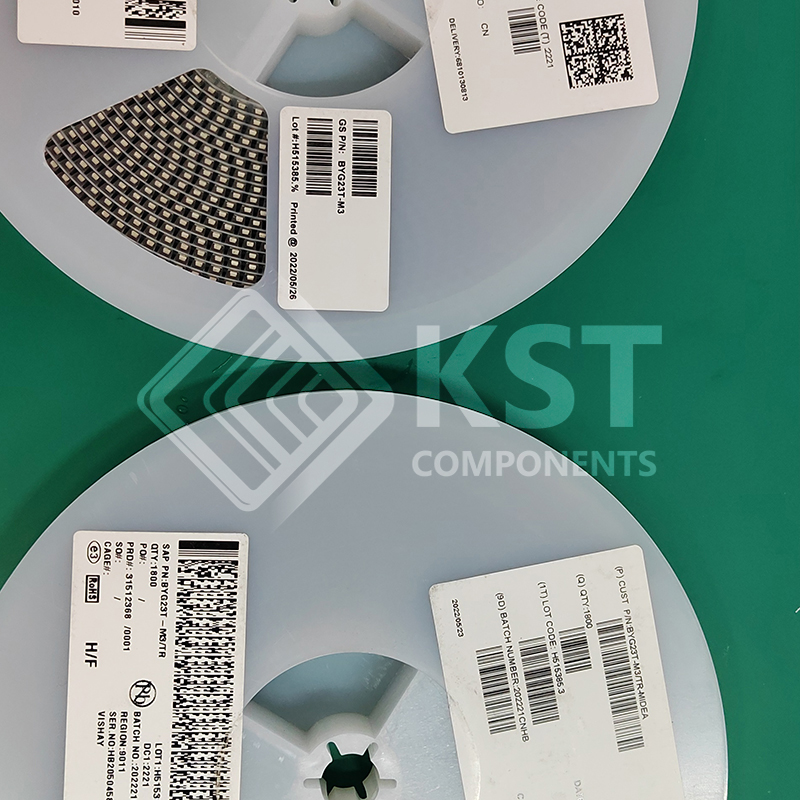

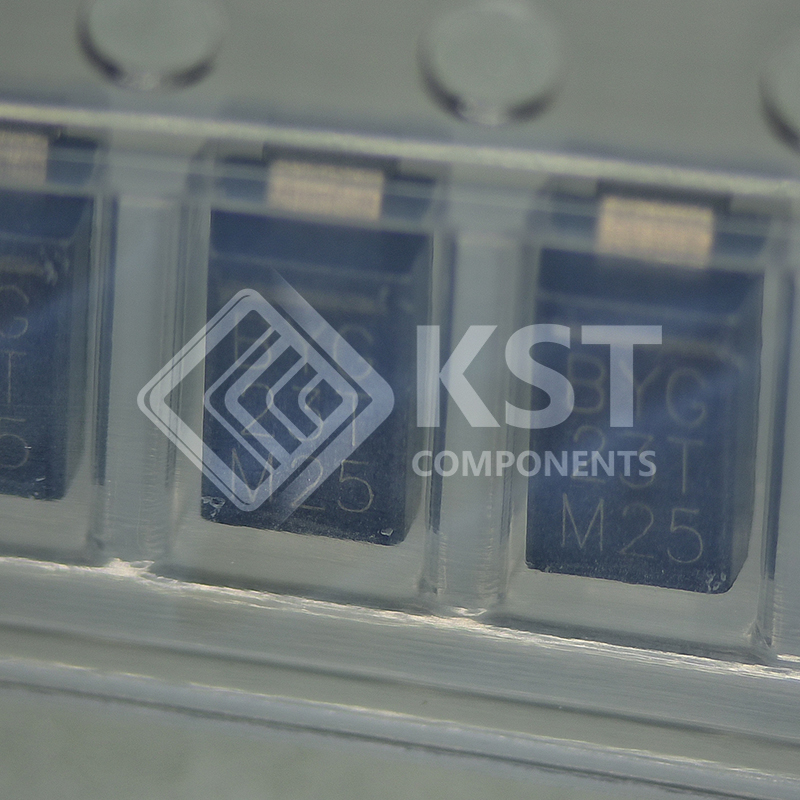

BYG23T-M3TR
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
|
|
|
Mfr
|
Vishay General Semiconductor – Diodes Division
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
Avalanche
|
|
|
Voltage – DC Reverse (Vr) (Max)
|
1300 V
|
|
|
Current – Average Rectified (Io)
|
1A
|
|
|
Voltage – Forward (Vf) (Max) @ If
|
1.9 V @ 1 A
|
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
|
Reverse Recovery Time (trr)
|
75 ns
|
|
|
Current – Reverse Leakage @ Vr
|
5 µA @ 1300 V
|
|
|
Capacitance @ Vr, F
|
9pF @ 4V, 1MHz
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

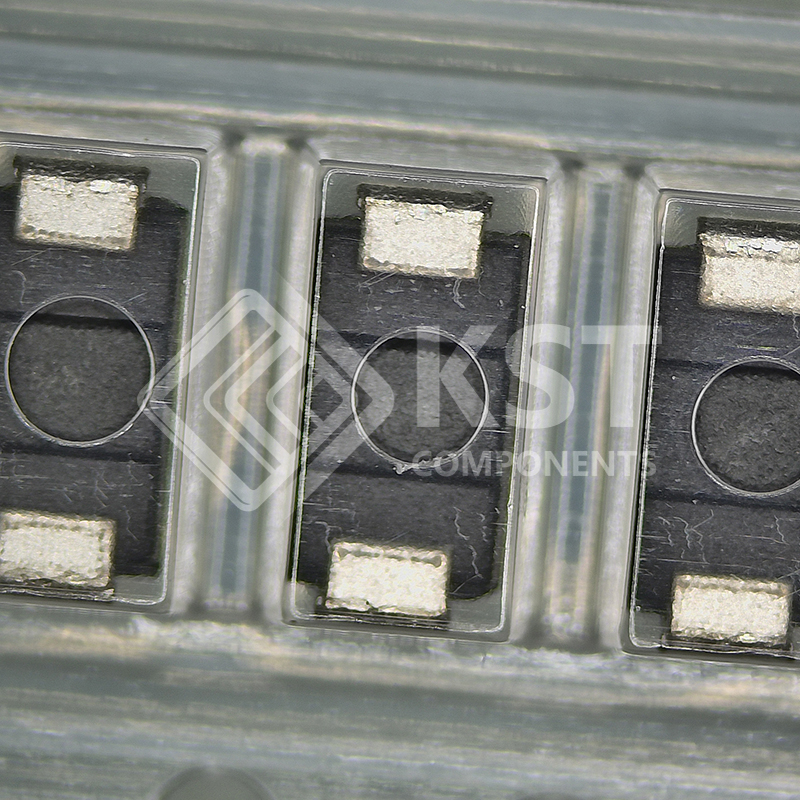

DO-214AC, SMA
|
|
|
Supplier Device Package
|
DO-214AC (SMA)
|
|
|
Operating Temperature – Junction
|
-55°C ~ 150°C
|
|
|
Base Product Number
|
BYG23
|
