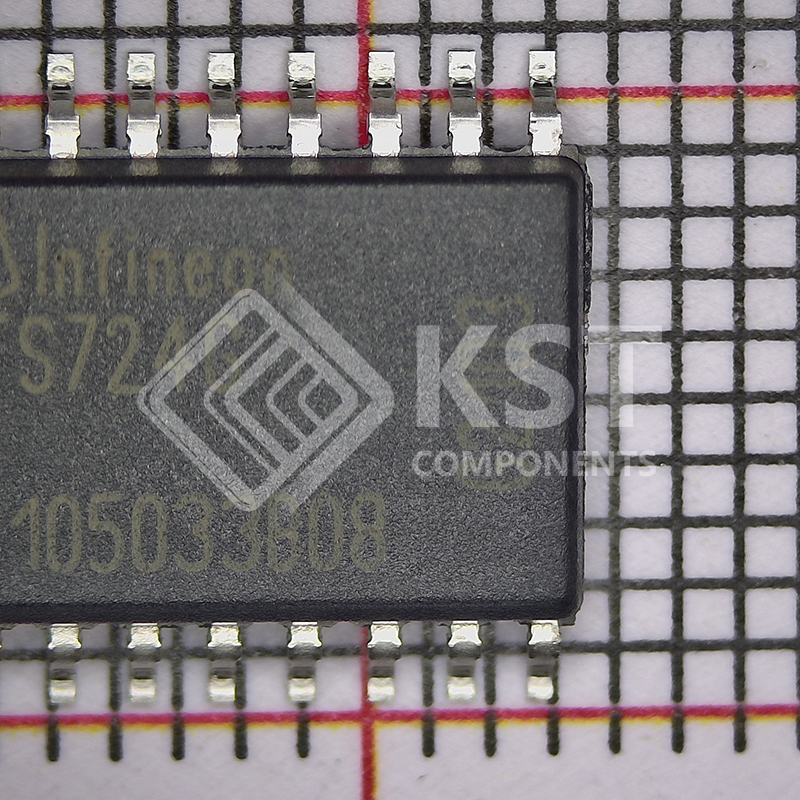

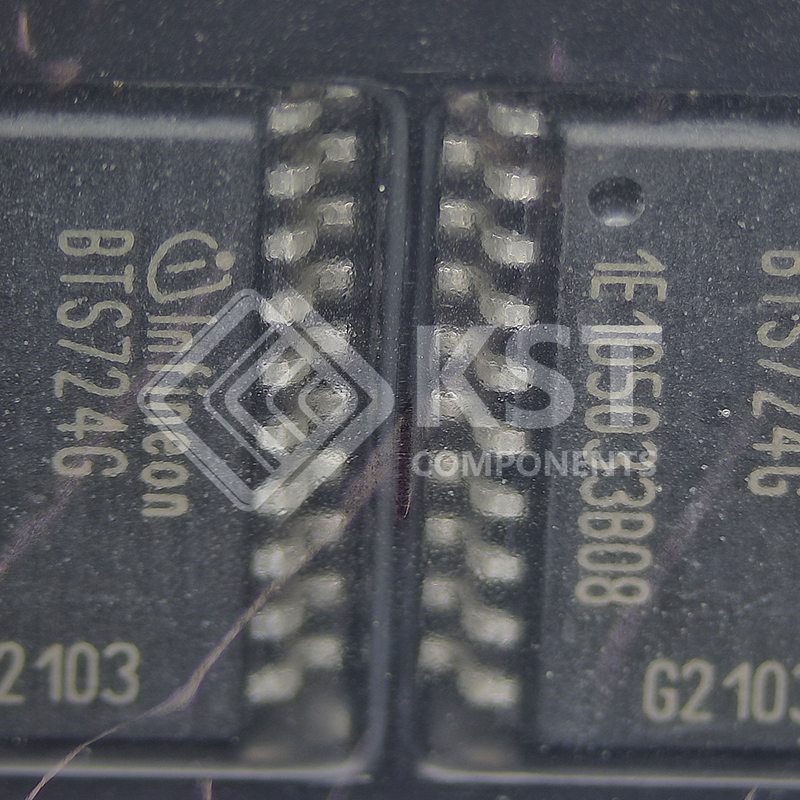

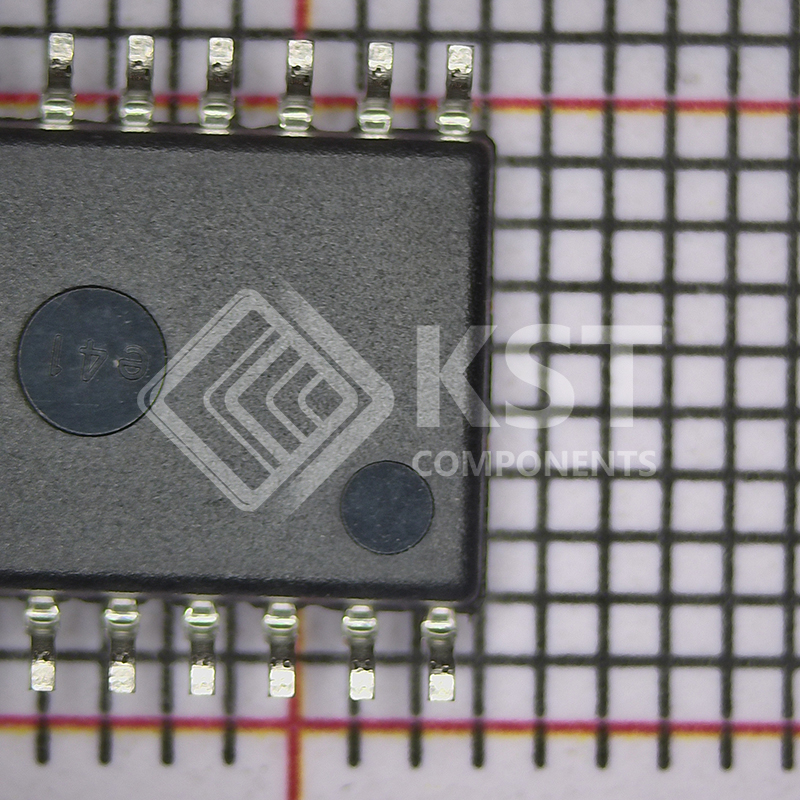

BTS724GXUMA1


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Mfr Infineon Technologies
    Series PROFET®

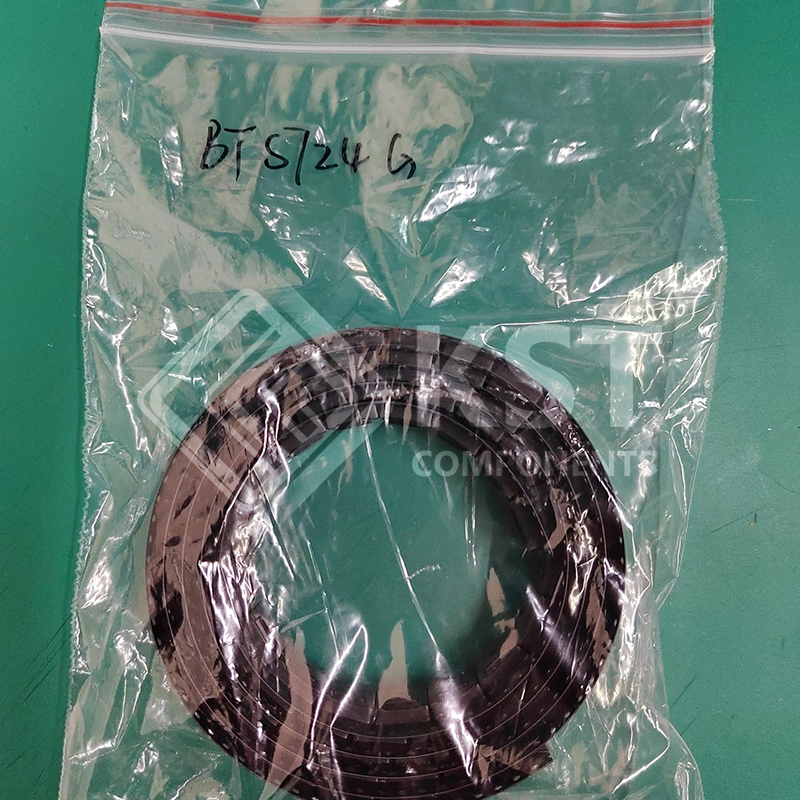

    Packaging Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status Active
    Switch Type General Purpose
    Number of Outputs 4
    Ratio – Input:Output 1:01
    Output Configuration High Side
    Output Type N-Channel
    Interface On/Off
    Voltage – Load 5.5V ~ 40V
    Voltage – Supply (Vcc/Vdd) Not Required
    Current – Output (Max) 3A
    Rds On (Typ) 70mOhm
    Input Type Non-Inverting
    Features Status Flag
    Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
    Operating Temperature -40°C ~ 150°C (TJ)
    Grade Automotive
    Qualification AEC-Q100
    Mounting Type Surface Mount
    Supplier Device Package PG-DSO-20
    Package / Case 20-SOIC (0.295″, 7.50mm Width)
    Base Product Number BTS724
