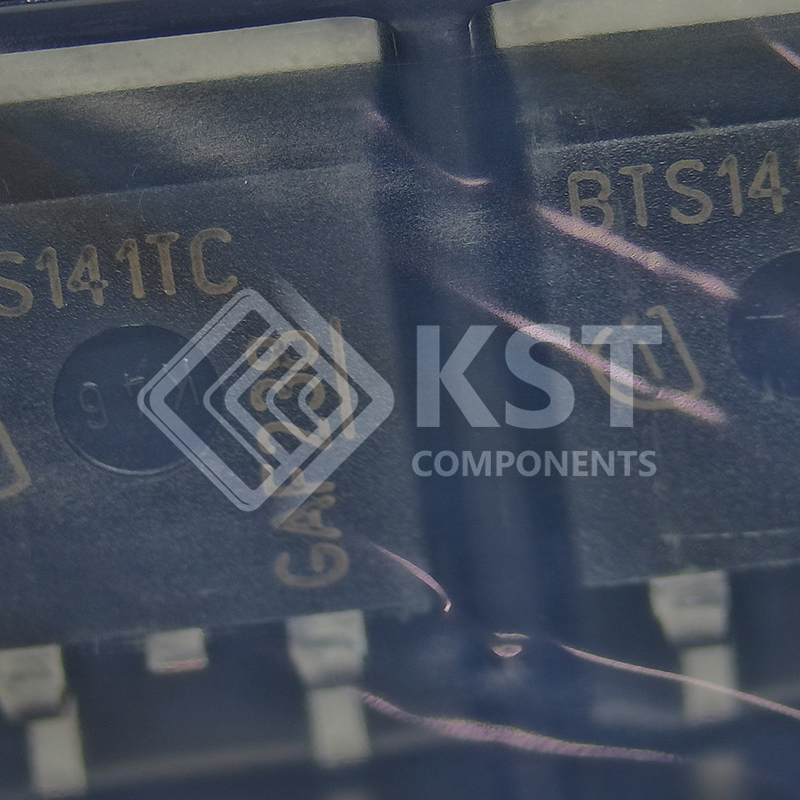

BTS141TCBUMA1
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Power Distribution Switches, Load Drivers
|
|
|
Mfr
|
Infineon Technologies
|
|
|
Series
|
HITFET®
|
|
|

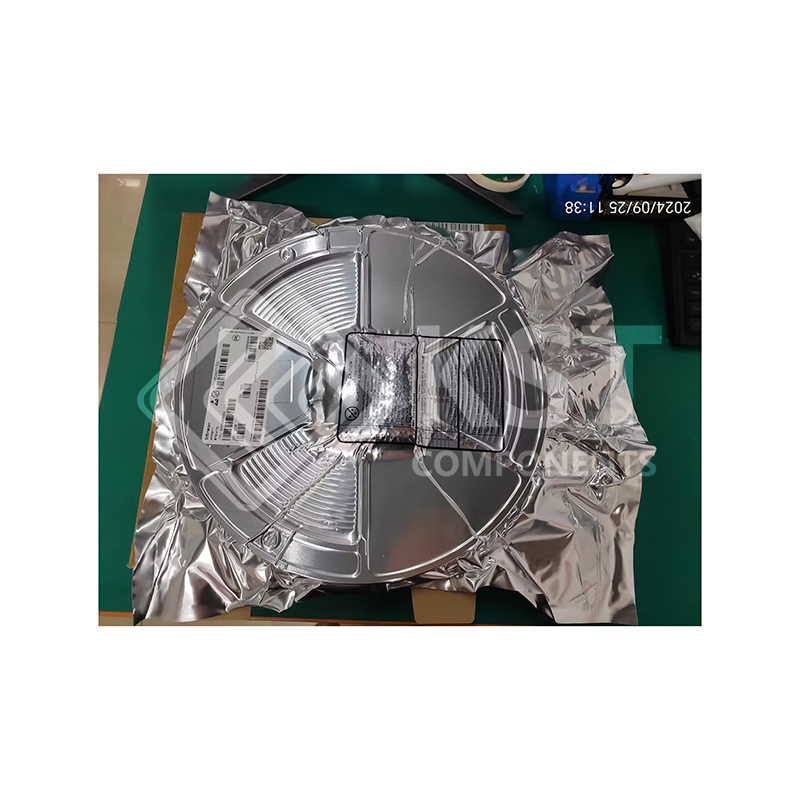

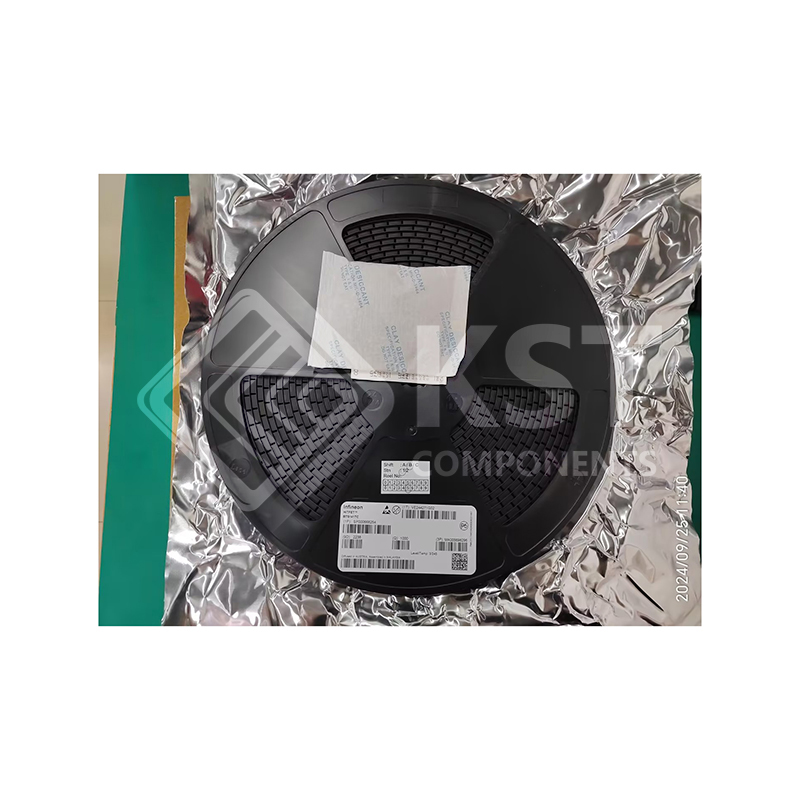

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Last Time Buy
|
|
|
Switch Type
|
General Purpose
|
|
|
Number of Outputs
|
1
|
|
|
Ratio – Input:Output
|
1:1
|
|
|
Output Configuration
|
Low Side
|
|
|
Output Type
|
N-Channel
|
|
|
Interface
|
On/Off
|
|
|
Voltage – Load
|
60V (Max)
|
|
|
Voltage – Supply (Vcc/Vdd)
|
Not Required
|
|
|
Current – Output (Max)
|
12A
|
|
|
Rds On (Typ)
|
25mOhm
|
|
|
Input Type
|
Non-Inverting
|
|
|
Features
|
–
|
|
|
Fault Protection
|
Current Limiting (Fixed), Over Temperature, Over Voltage
|
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
PG-TO263-3-2
|
|
|
Package / Case
|
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
|
|
|
Base Product Number
|
BTS141
|
