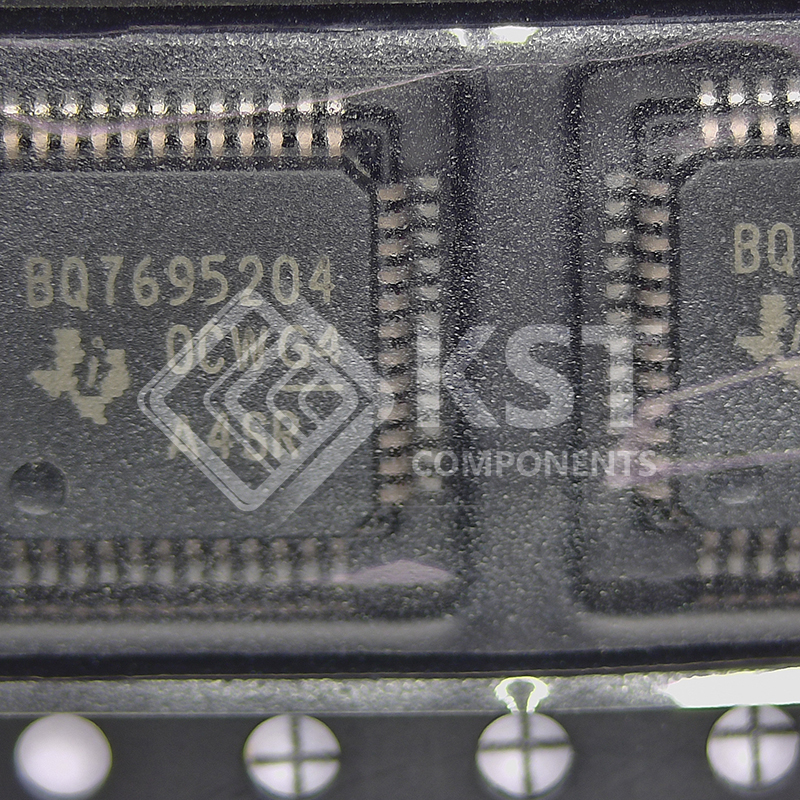

BQ7695204PFBR

• Battery monitoring capability for 3-series to 16-
series cells
• Integrated charge pump for high-side NFET
protection with optional autonomous recovery
• Extensive protection suite including voltage,
temperature, current, and internal diagnostics
• Two independent ADCs
– Support for simultaneous current and voltage
sampling
– High-accuracy coulomb counter with input
offset error < 1 µV (typical)
– High accuracy cell voltage measurement < 10
mV (typical)
• Wide-range current applications (±200-mV
measurement range across sense resistor)
• Integrated secondary chemical fuse drive
protection
• Autonomous or host-controlled cell balancing
• Multiple power modes (typical battery pack
operating range conditions)
– NORMAL mode: 286 µA
– Multiple SLEEP mode options: 24 µA to 41 µA
– Multiple DEEPSLEEP mode options: 9 µA to 10
µA
– SHUTDOWN mode: 1 µA
• High-voltage tolerance of 85 V on cell connect and
select additional pins
• Tolerant of random cell attach sequence on
production line
• Support for temperature sensing using internal
sensor and up to nine external thermistors
• Integrated one-time-programmable (OTP) memory
programmable by customers on production line
• Communication options include 400-kHz I2C, SPI,
and HDQ one-wire interface
• Dual-programmable LDOs for external system
usage
• 48-pin TQFP package (PFB)
