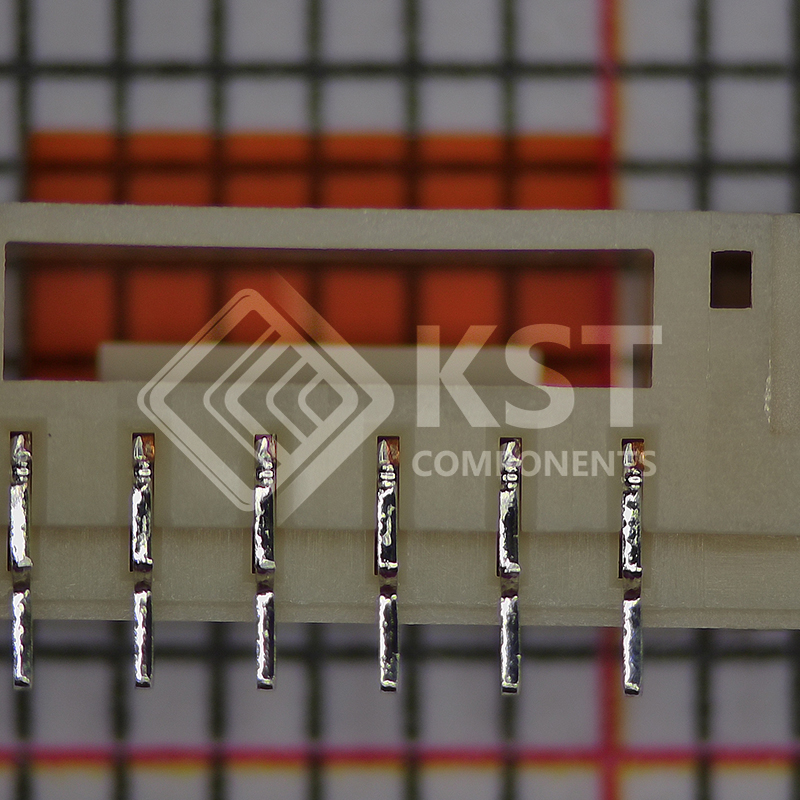

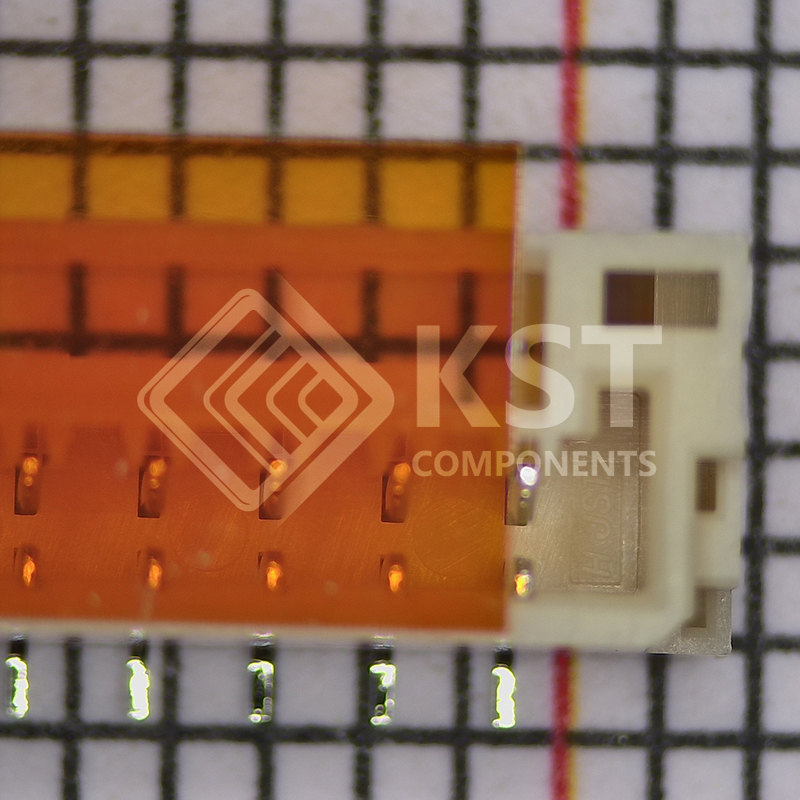

BM06B-GHS-TBT

・ Current rating: 1.0 A　AC/DC（AWG #26）
・ Voltage rating: 50 V　AC/DC
・Temperature range: -25℃ to +85℃
(including temperature rise in
applying electrical current)
・Contact resistance:
Initial value/ 30 mΩ max.
After environmental tests/ 50 mΩ max.
・ Insulation resistance: 100 MΩ min.
・Withstanding voltage:
There shall be no breakdown or flashover while
applying 500 VAC for one minute.
・Applicable wire range:
Conductor size/ AWG #30 to AWG #26
Insulation O.D./ φ0.76 mm to φ1.0 mm
* Please refer to the “Handling Precautions for Terminals
and Connectors” on our website (listed in the “Technical
Documents” column on the Product Information page)
before use.
* RoHS2 compliance
* Dimensional unit: mm
* Contact JST for details.
