BC817-40,215
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
Bipolar (BJT)
Single Bipolar Transistors
|
|
|
Mfr
|
Nexperia USA Inc.
|
|
|
Series
|
BC817
|
|
|
Packaging
|

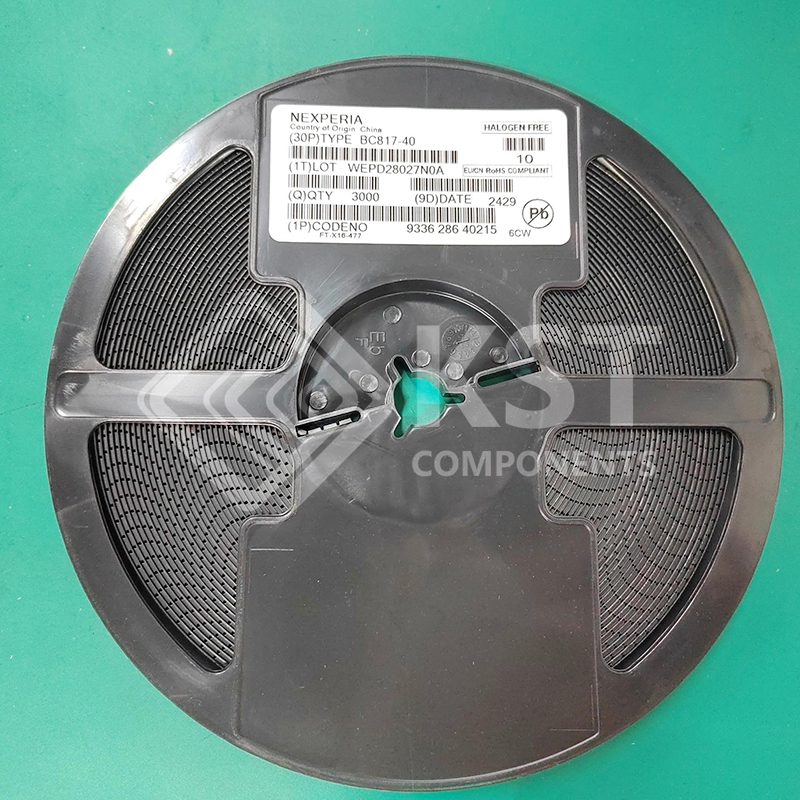

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Transistor Type
|
NPN
|
|
|
Current – Collector (Ic) (Max)
|
500 mA
|
|
|
Voltage – Collector Emitter Breakdown (Max)
|
45 V
|
|
|
Vce Saturation (Max) @ Ib, Ic
|
700mV @ 50mA, 500mA
|
|
|
Current – Collector Cutoff (Max)
|
100nA (ICBO)
|
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
250 @ 100mA, 1V
|
|
|
Power – Max
|
250 mW
|
|
|
Frequency – Transition
|
100MHz
|
|
|
Operating Temperature
|
150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package
|
TO-236AB
|
|
|
Base Product Number
|
BC817
|
