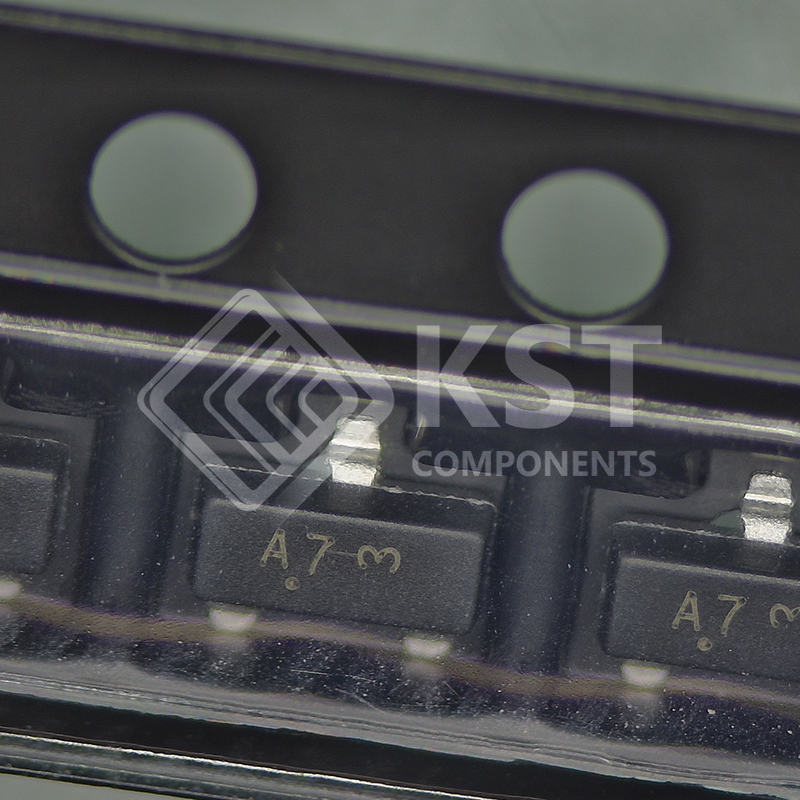

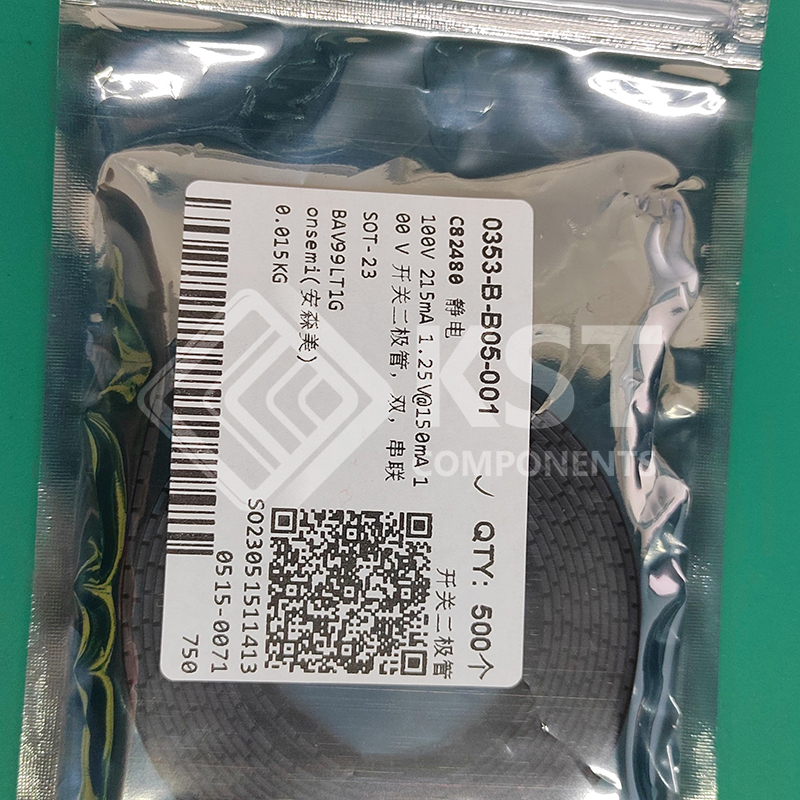

BAV99LT1G
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Diodes
Rectifiers
Diode Arrays
|
|
|
Manufacturer
|
onsemi
|
|
|
Series
|
–
|
|
|
Packaging
|

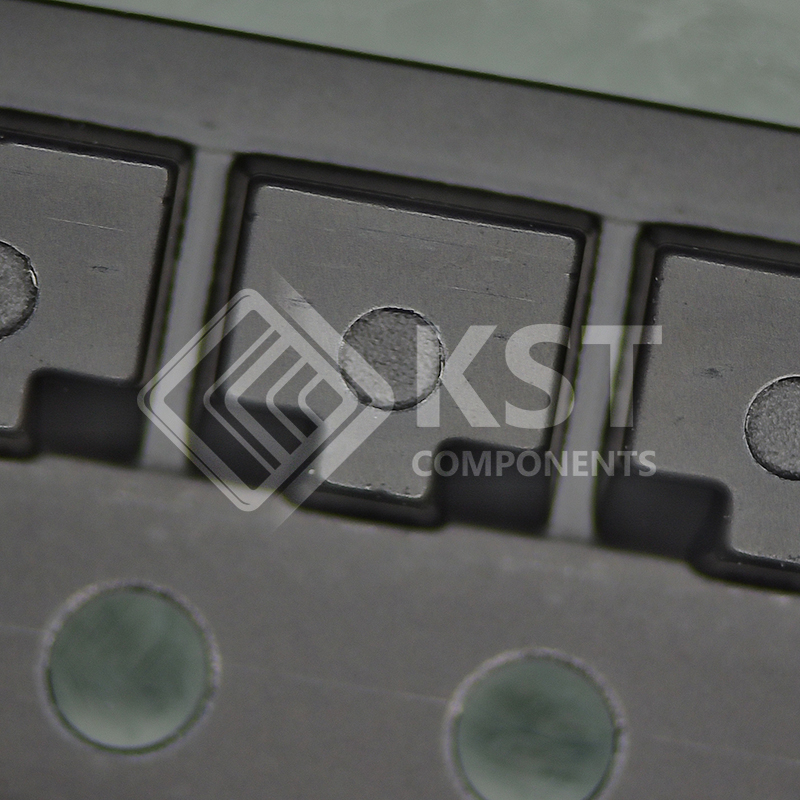

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Diode Configuration
|
1 Pair Series Connection
|
|
|
Technology
|
Standard
|
|
|
Voltage – DC Reverse (Vr) (Max)
|
100 V
|
|
|
Current – Average Rectified (Io) (per Diode)
|
215mA (DC)
|
|
|
Voltage – Forward (Vf) (Max) @ If
|
1.25 V @ 150 mA
|
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
|
Reverse Recovery Time (trr)
|
6 ns
|
|
|
Current – Reverse Leakage @ Vr
|
2.5 µA @ 70 V
|
|
|
Operating Temperature – Junction
|
-65°C ~ 150°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

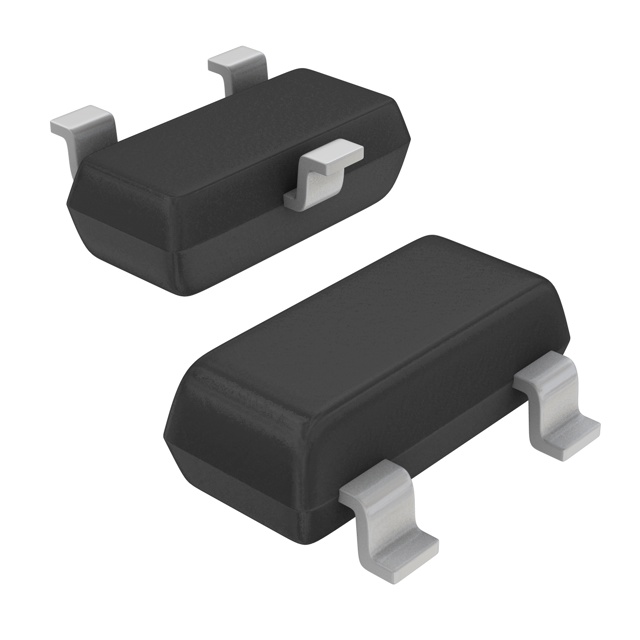

TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package
|
SOT-23-3 (TO-236)
|
|
|
Base Product Number
|
BAV99
|
