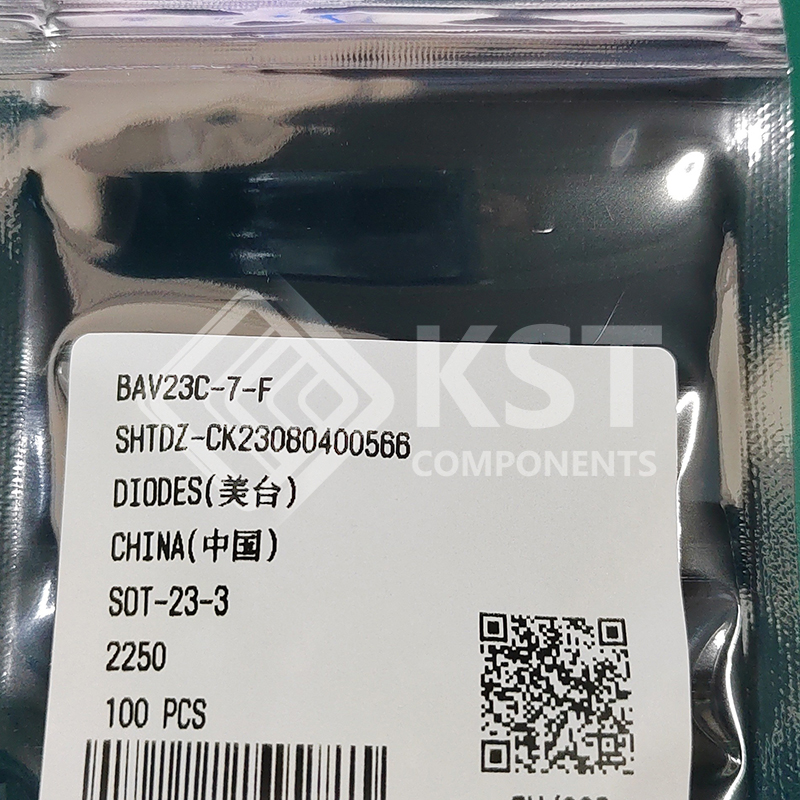

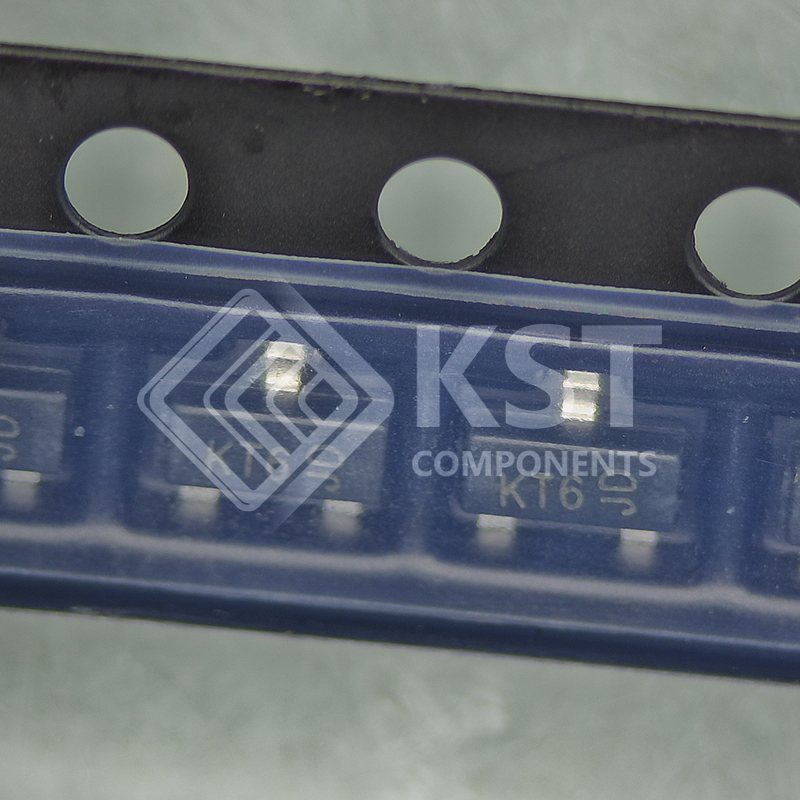

    BAV23C-7-F

     Package: SOT23
     Package Material: Molded Plastic. UL Flammability
    Classification Rating 94V-0
     Moisture Sensitivity: Level 1 per J-STD-020
     Terminals: Finish—Lead-Free Plating (Matte Tin Finish
    Annealed over Alloy 42 Leadframe). Solderable per MIL-STD202, Method 208
     Polarity: See Diagrams Below
     Weight: 0.008 grams (Approximate)

    Categories: ,

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

       Fast Switching Speed
       Ideal for Battery-Powered, Portable Applications
       High Reverse Breakdown Voltage
       Low Leakage Current
       Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
       Halogen and Antimony Free. “Green” Device (Note 3)
       This part is qualified to JEDEC standards (as references in
      AEC-Q) for High Reliability.
      https://www.diodes.com/quality/product-definitions/
       An automotive-compliant part is available under separate
      datasheet (BAV23AQ/CQ/SQ)
