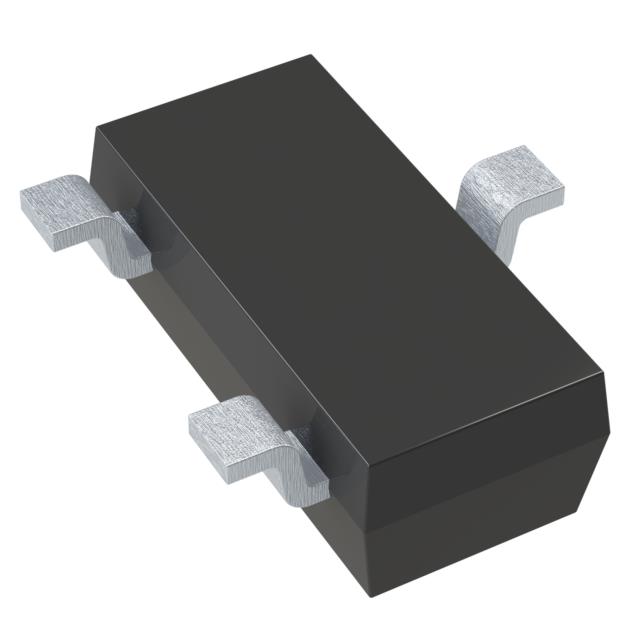

BAT54C-TP
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Diodes
Rectifiers
Diode Arrays
|
|
|
Manufacturer
|
Micro Commercial Co
|
|
|
Series
|
–
|
|
|

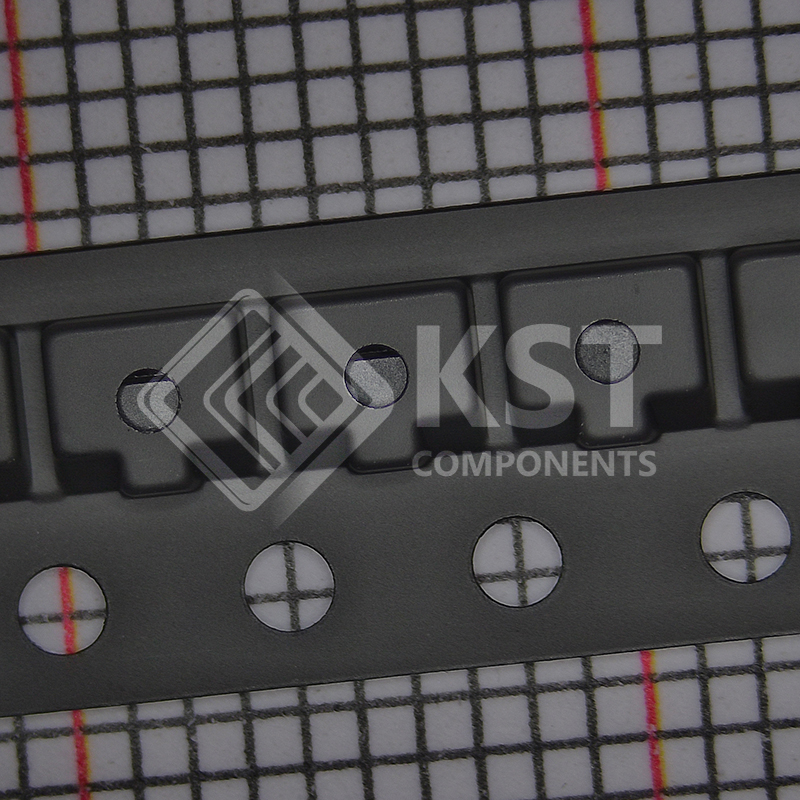

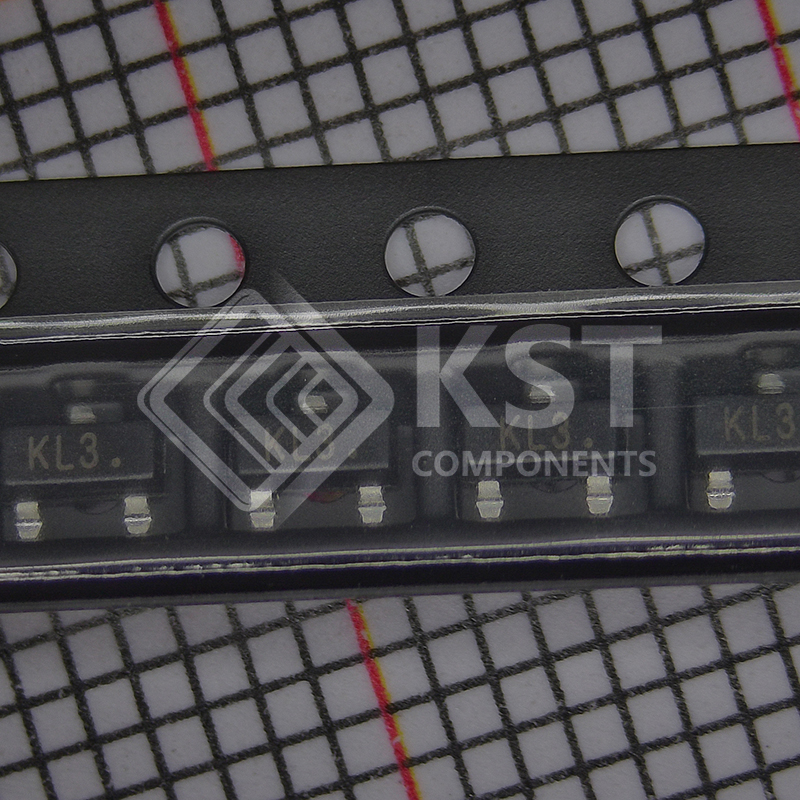

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Diode Configuration
|
1 Pair Common Cathode
|
|
|
Technology
|
Schottky
|
|
|
Voltage – DC Reverse (Vr) (Max)
|
30 V
|
|
|
Current – Average Rectified (Io) (per Diode)
|
200mA (DC)
|
|
|
Voltage – Forward (Vf) (Max) @ If
|
1 V @ 100 mA
|
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
|
Reverse Recovery Time (trr)
|
5 ns
|
|
|
Current – Reverse Leakage @ Vr
|
2 µA @ 25 V
|
|
|
Operating Temperature – Junction
|
-55°C ~ 125°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package
|
SOT-23
|
|
|
Base Product Number
|
BAT54
|
