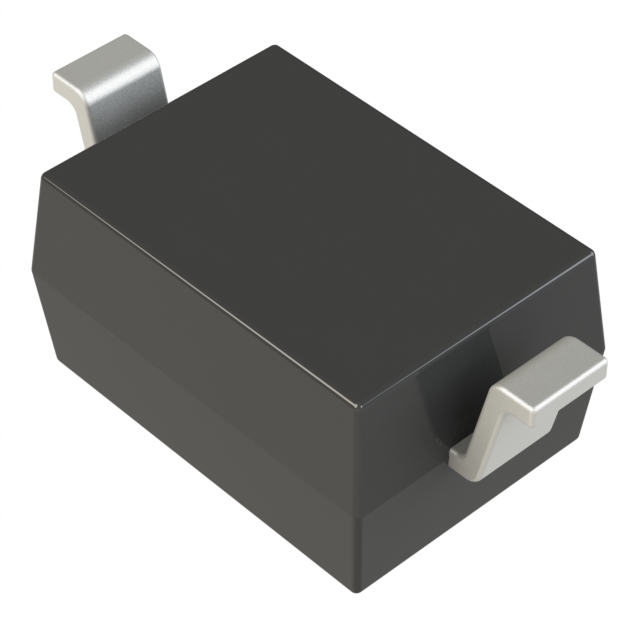

BAT46WQ-7-F
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
|
|
|
Mfr
|
Diodes Incorporated
|
|
|
Series
|
–
|
|
|

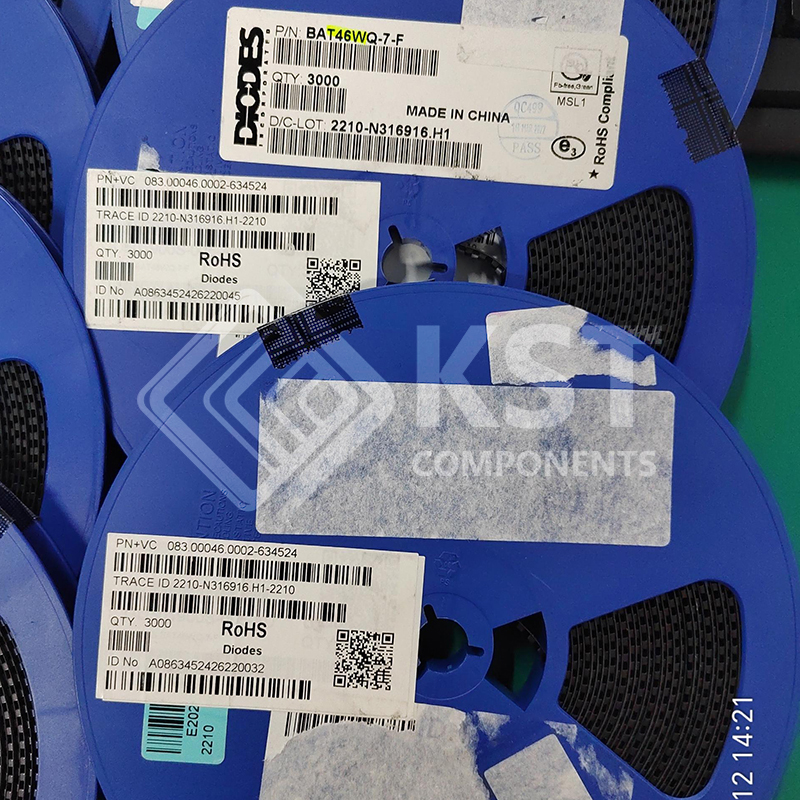

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
Schottky
|
|
|
Voltage – DC Reverse (Vr) (Max)
|
100 V
|
|
|
Current – Average Rectified (Io)
|
150mA
|
|
|
Voltage – Forward (Vf) (Max) @ If
|
450 mV @ 10 mA
|
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
|
Current – Reverse Leakage @ Vr
|
2 µA @ 75 V
|
|
|
Capacitance @ Vr, F
|
12pF @ 1V, 1MHz
|
|
|
Grade
|
Automotive
|
|
|
Qualification
|
AEC-Q101
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
SOD-123
|
|
|
Supplier Device Package
|
SOD-123
|
|
|
Operating Temperature – Junction
|
-55°C ~ 125°C
|
|
|
Base Product Number
|
BAT46
|
