B82790S0513N201
INQUIRY ONLINE
|
Category
|
Filters
Common Mode Chokes
|
|
|
Manufacturer
|
EPCOS – TDK Electronics
|
|
|
Series
|
B82790
|
|
|
Packaging
|

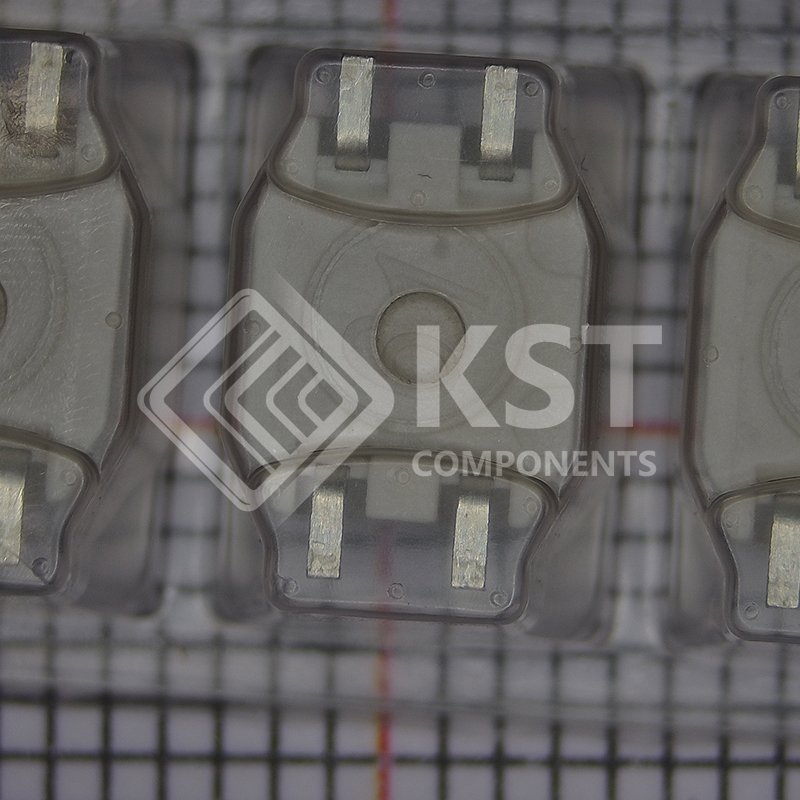

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Filter Type
|
Signal Line
|
|
|
Number of Lines
|
2
|
|
|
Inductance @ Frequency
|
51 µH @ 100 kHz
|
|
|
Current Rating (Max)
|
500mA
|
|
|
DC Resistance (DCR) (Max)
|
140mOhm (Typ)
|
|
|
Voltage Rating – DC
|
80V
|
|
|
Voltage Rating – AC
|
42V
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Ratings
|
AEC-Q200
|
|
|
Approval Agency
|
–
|
|
|
Features
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Size / Dimension
|
0.280″ L x 0.236″ W (7.10mm x 6.00mm)
|
|
|
Height (Max)
|
0.205″ (5.20mm)
|
|
|
Package / Case
|

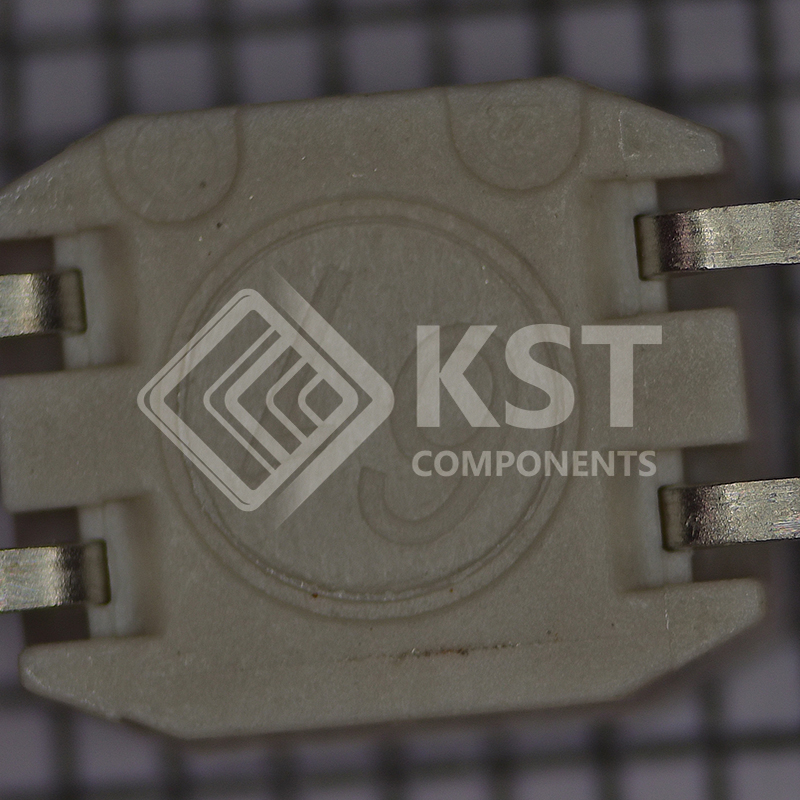

Horizontal, 4 Gull Wing
|
