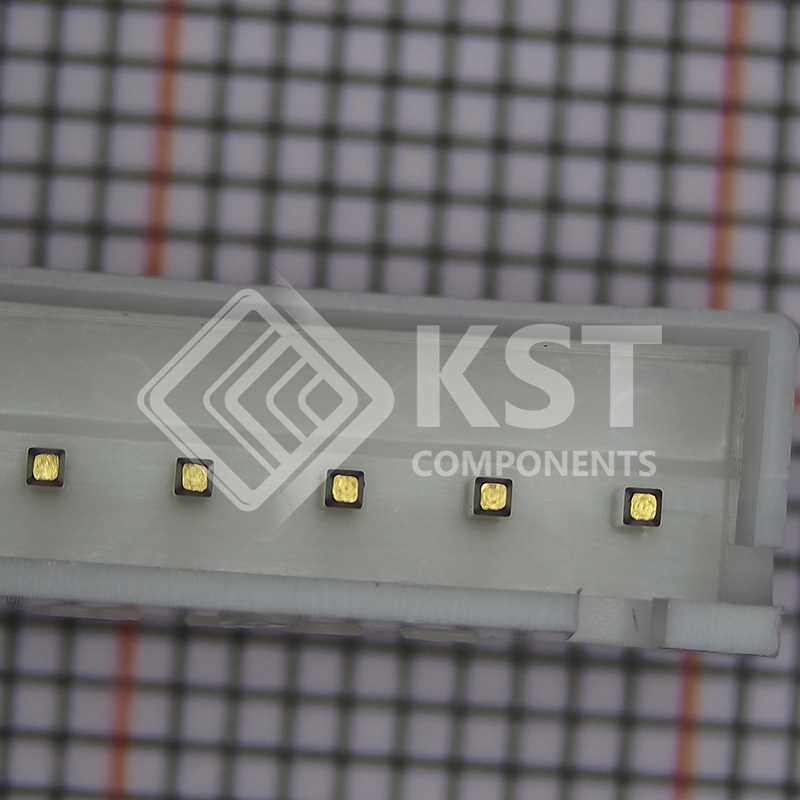

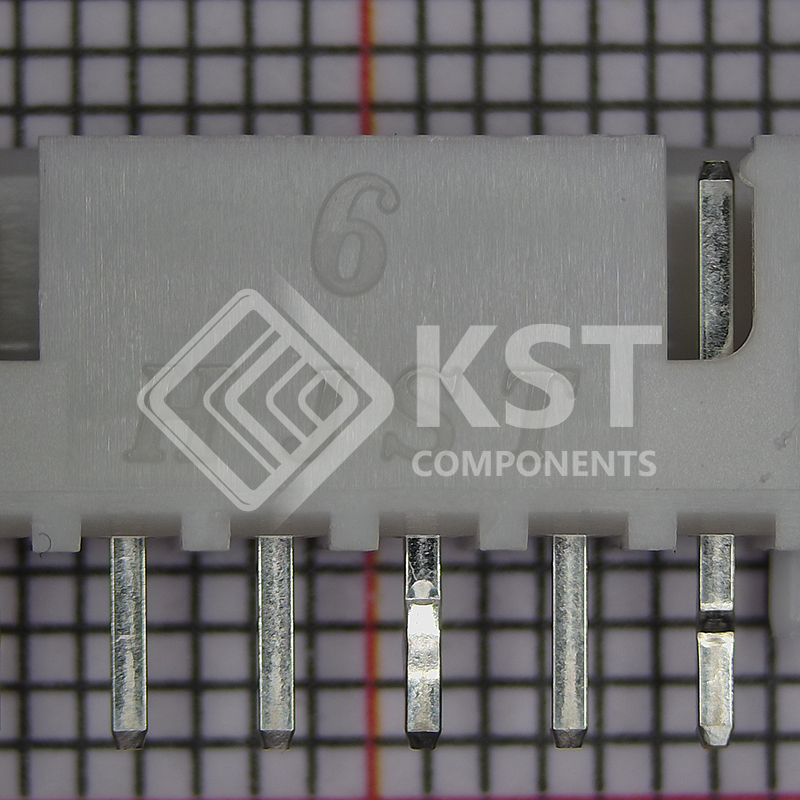

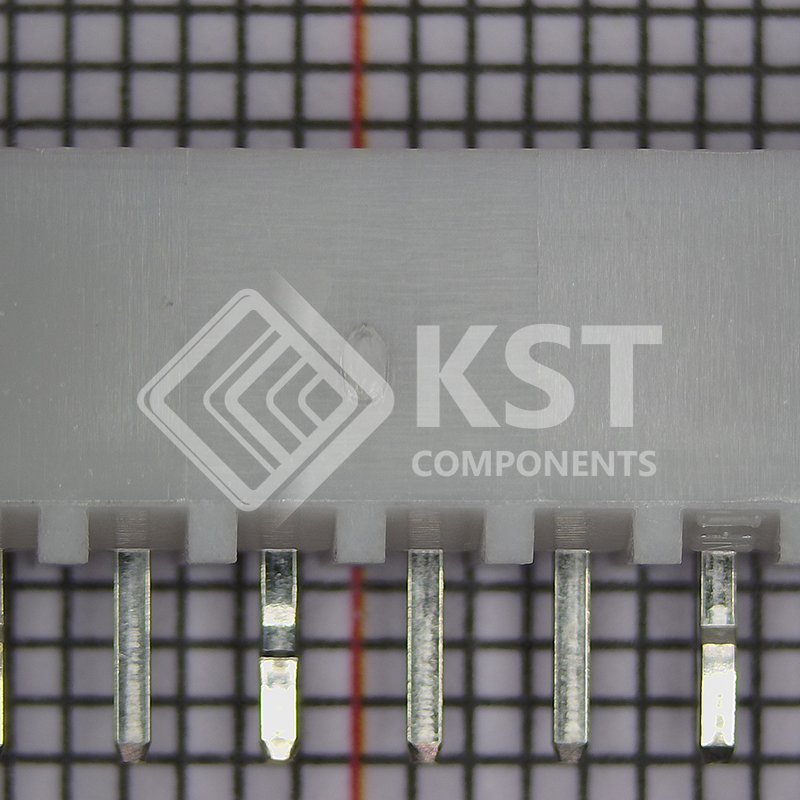

B6B-XH-AM

Highly reliable, versatile 2.5 mm pitch wire-toboard connector with an assembled board
height of 9.8 mm for low profile applications.
■ Specifications
• Current rating: 3 A　AC/DC（AWG #22）
・Voltage rating: 250 V　AC/DC
・Temperature range: -25℃ to +85℃
(including temperature rise in
applying electrical current)
・Contact resistance:
Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
・Insulation resistance: 1,000 MΩ min.
・Withstanding voltage:
There shall be no breakdown or flashover while
applying 1,000 VAC for one minute.
・Applicable wire range:
Conductor size/ AWG #30 to AWG #22
Insulation O.D./ φ 0.9 mm to φ 1.9 mm
・Applicable PC board thickness: 1.6 mm
* Please refer to the “Handling Precautions for Terminals
and Connectors” on our website (listed in the “Technical
Documents” column on the Product Information page)
before use.
* RoHS2 compliance
* Dimensional unit: mm
* Contact JST for details.
■ Standards
For information on overseas standard registrations,
please refer to the “List of Registered Overseas
Standards” on our website (listed in the “Technical
Documents” column on the Product Information page).
* Specifications registered to overseas standards may
differ from the general specifications listed above.
XHCONNECTOR
2.5 mm pitch/Wire-to-Board connectors/Crimp style and Mating style
・Original double-leaf contact design
・Box-shaped shrouded header
・Header is also available with boss
・The 4 pin version conforms to JEMA’s
Home Automation (HA terminal) standards.
