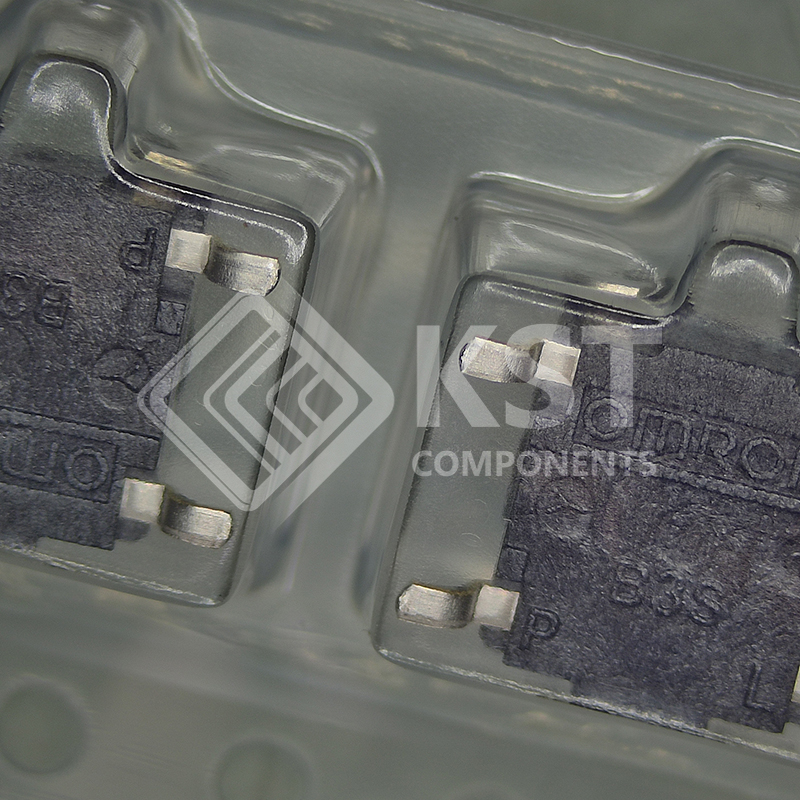

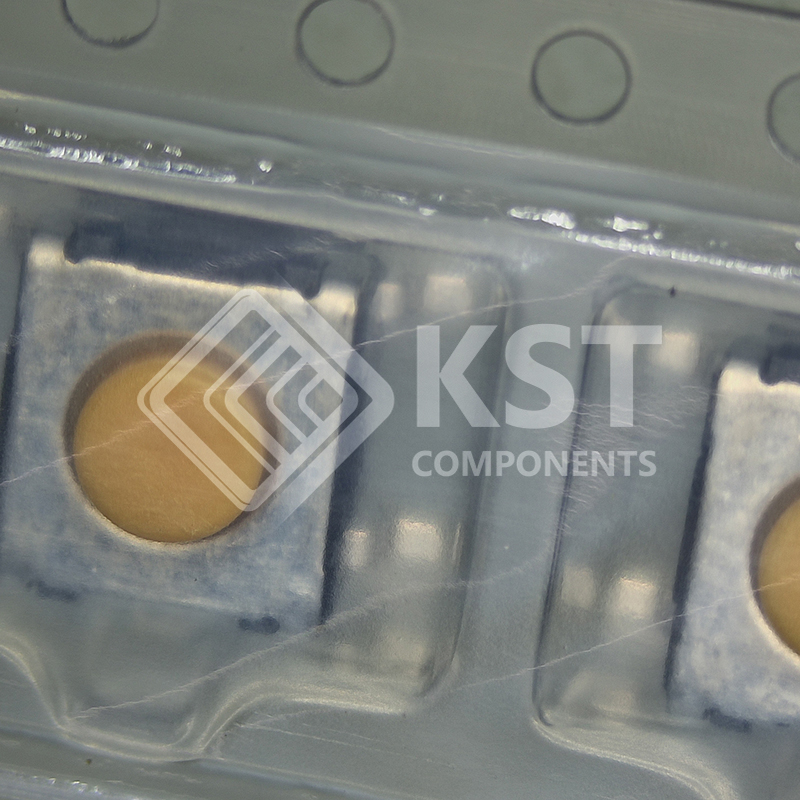

B3S-1002P
INQUIRY ONLINE
|
Category
|
Switches
Tactile Switches
|
|
|
Mfr
|
Omron Electronics Inc-EMC Div
|
|
|
Series
|
B3S
|
|
|

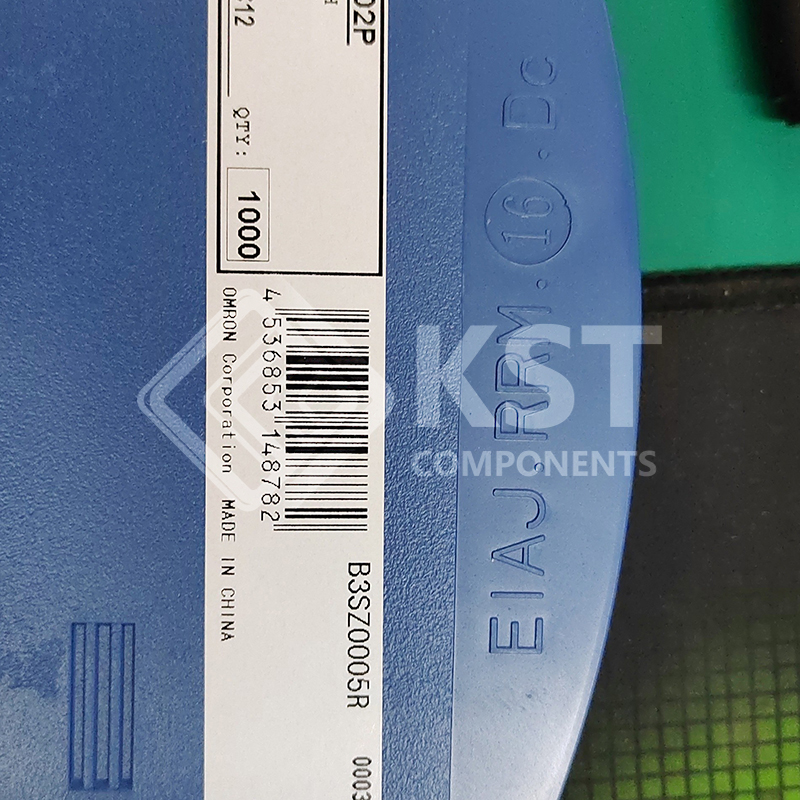

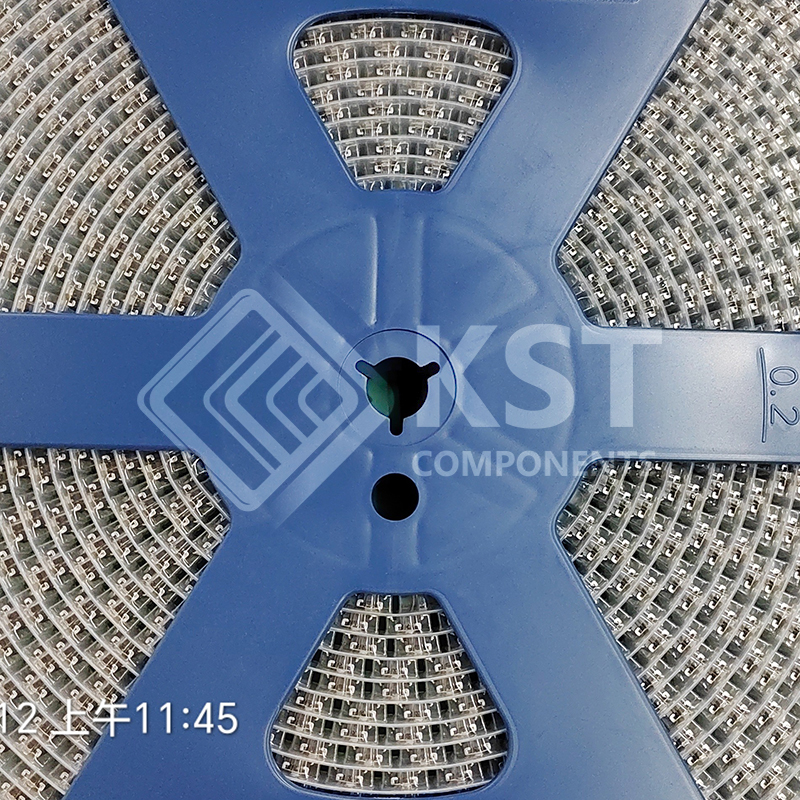

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Circuit
|
SPST-NO
|
|
|
Switch Function
|
Off-Mom
|
|
|
Contact Rating @ Voltage
|
0.05A @ 24VDC
|
|
|
Actuator Type
|
Standard
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Actuator Height off PCB, Vertical
|
4.30mm
|
|
|
Actuator Length, Right Angle
|
–
|
|
|
Actuator Orientation
|
Top Actuated
|
|
|
Termination Style
|
Gull Wing
|
|
|
Outline
|
6.60mm x 6.00mm
|
|
|
Illumination
|
Non-Illuminated
|
|
|
Illumination Type, Color
|
–
|
|
|
Illumination Voltage (Nominal)
|
–
|
|
|
Operating Force
|
230gf
|
|
|
Ingress Protection
|
IP67 – Dust Tight, Waterproof
|
|
|
Features
|
Sealed – Fully
|
|
|
Operating Temperature
|
-25°C ~ 70°C
|
|
|
Actuator Material
|
–
|
|
|
Switch Travel
|
0.25mm
|
|
|
Mechanical Life
|
300,000 Cycles
|
|
|
Base Product Number
|
B3S
|
