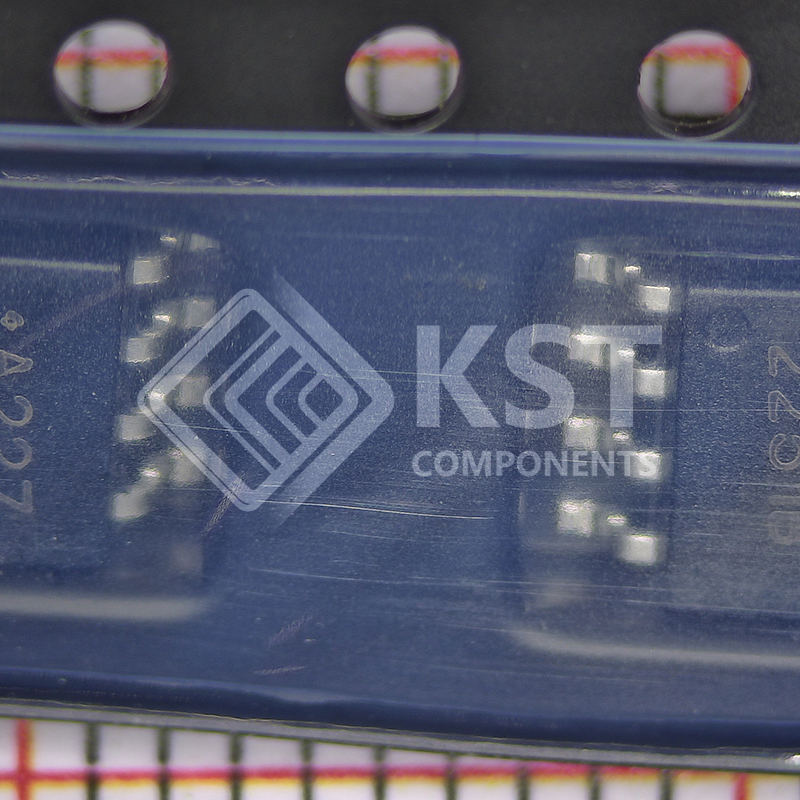

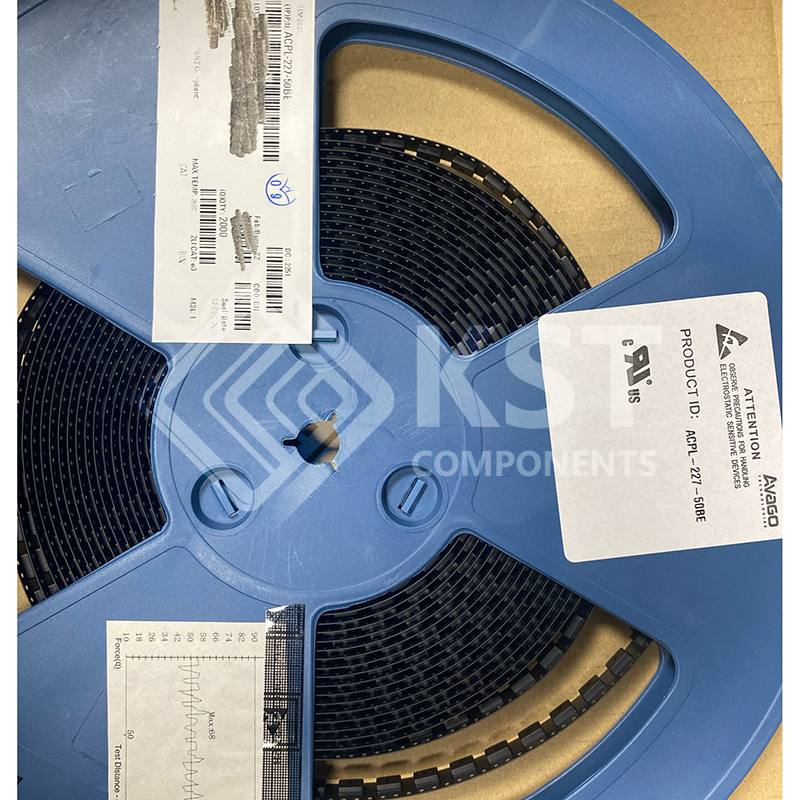

ACPL-227-50BE

The ACPL-227 is a DC-input dual-channel half-pitch
phototransistor optocoupler that contains two light-emitting
diodes optically coupled to two separate phototransistors. It
is packaged in an 8-pin SO package.
Likewise, the ACPL-247 is a DC-input quad-channel halfpitch phototransistor optocoupler that contains four lightemitting diodes optically coupled to four separate
phototransistors. It is packaged in a 16-pin SO package.
For both devices, the input-output isolation voltage is rated
at 3750Vrms. Response time, tr, is 2 µs typically, while
minimum CTR is 50 percent at input current of 5 mA.

Categories: ,

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

     Current transfer ratio
    (CTR: 50% (min) at IF = 5 mA, VCE = 5V)
     High input-output isolation voltage
    (VISO = 3750Vrms)
     Non-saturated response time
    (tr: 2 µs (typ) at VCC = 10V, IC = 2 mA, RL= 100Ω)
     SO package
     CMR 10 kV/µs (typical)
     Safety and regulatory approvals
    – cUL
    – IEC/EN/DIN EN 60747-5-5
     Options available:
    – CTR Ranks 0, B, and C for ACPL-227 and Rank 0
    only for ACPL-247
