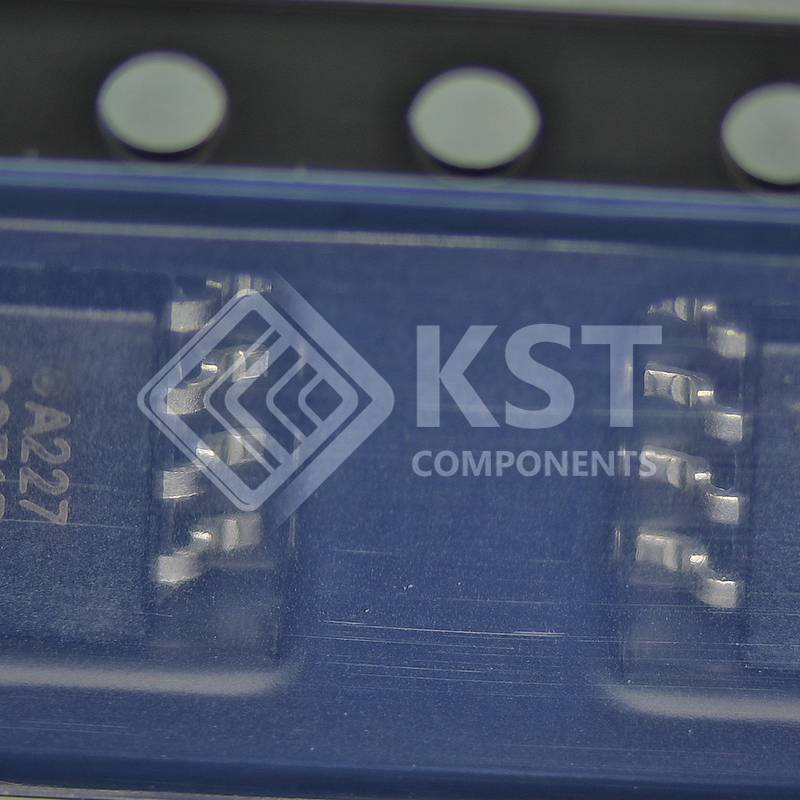

    ACPL-227-50BE

    The ACPL-227 is a DC-input dual-channel half-pitch
    phototransistor optocoupler that contains two light-emitting
    diodes optically coupled to two separate phototransistors. It
    is packaged in an 8-pin SO package.
    Likewise, the ACPL-247 is a DC-input quad-channel halfpitch phototransistor optocoupler that contains four lightemitting diodes optically coupled to four separate
    phototransistors. It is packaged in a 16-pin SO package.
    For both devices, the input-output isolation voltage is rated
    at 3750Vrms. Response time, tr, is 2 µs typically, while
    minimum CTR is 50 percent at input current of 5 mA.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

       Current transfer ratio
      (CTR: 50% (min) at IF = 5 mA, VCE = 5V)
       High input-output isolation voltage
      (VISO = 3750Vrms)
       Non-saturated response time
      (tr: 2 µs (typ) at VCC = 10V, IC = 2 mA, RL= 100Ω)
       SO package
       CMR 10 kV/µs (typical)
       Safety and regulatory approvals
      – cUL
      – IEC/EN/DIN EN 60747-5-5
       Options available:
      – CTR Ranks 0, B, and C for ACPL-227 and Rank 0
      only for ACPL-247
