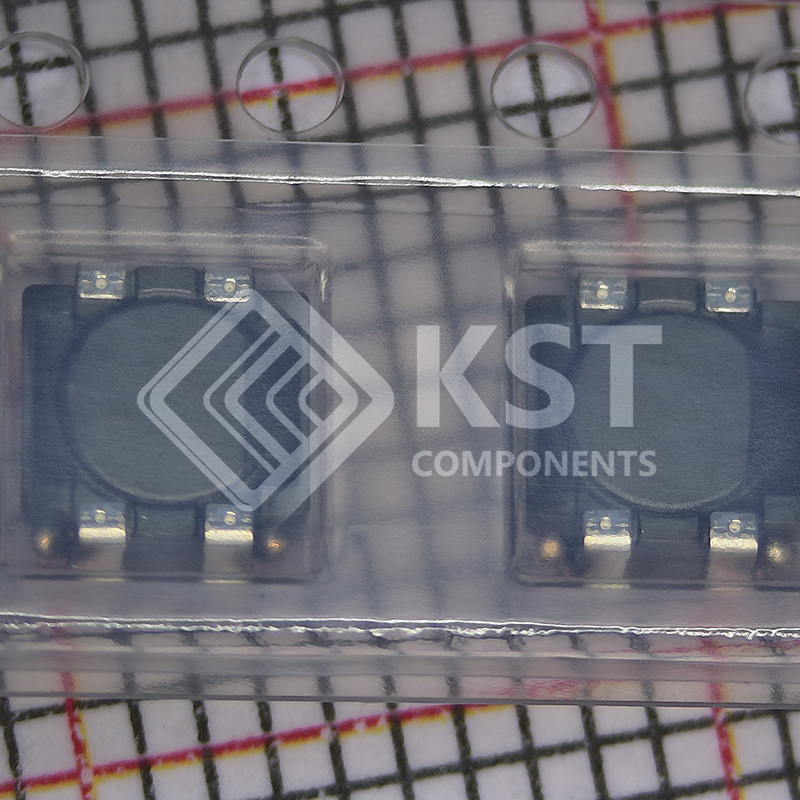

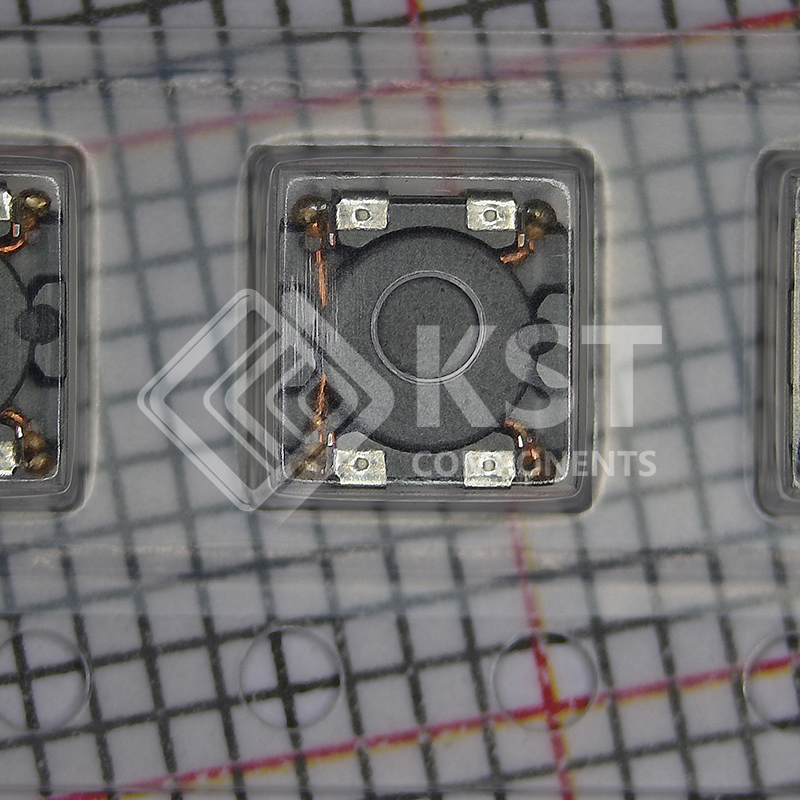

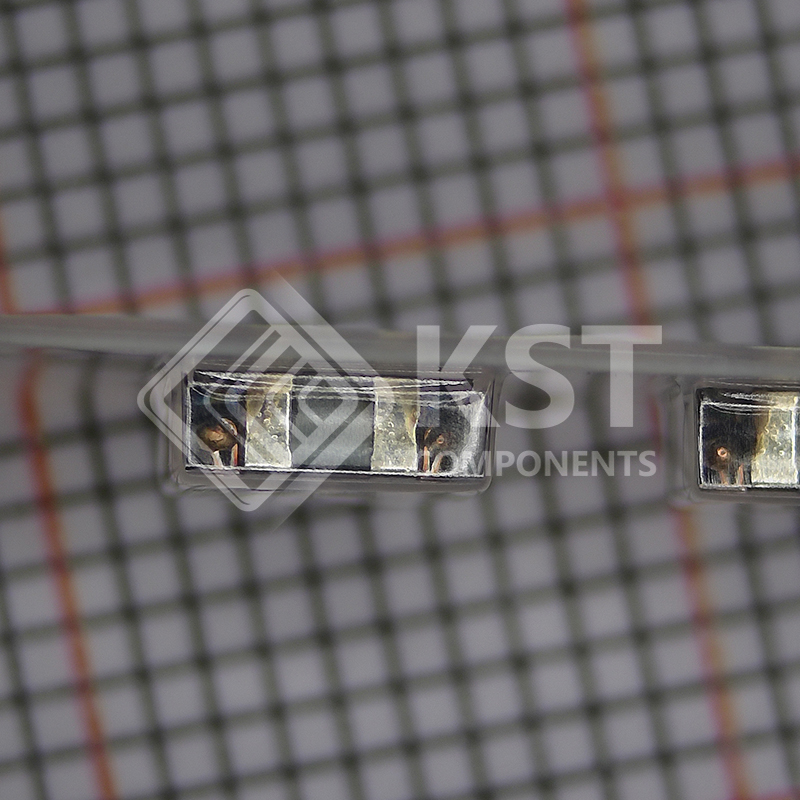

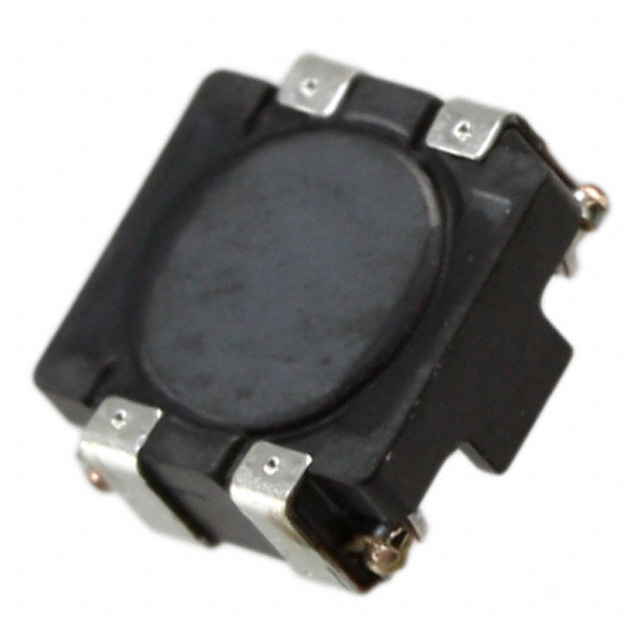

ACM4520-901-2P-T000
INQUIRY ONLINE
|
Category
|
Filters
Common Mode Chokes
|
|
|
Manufacturer
|
TDK Corporation
|
|
|
Series
|
ACM
|
|
|

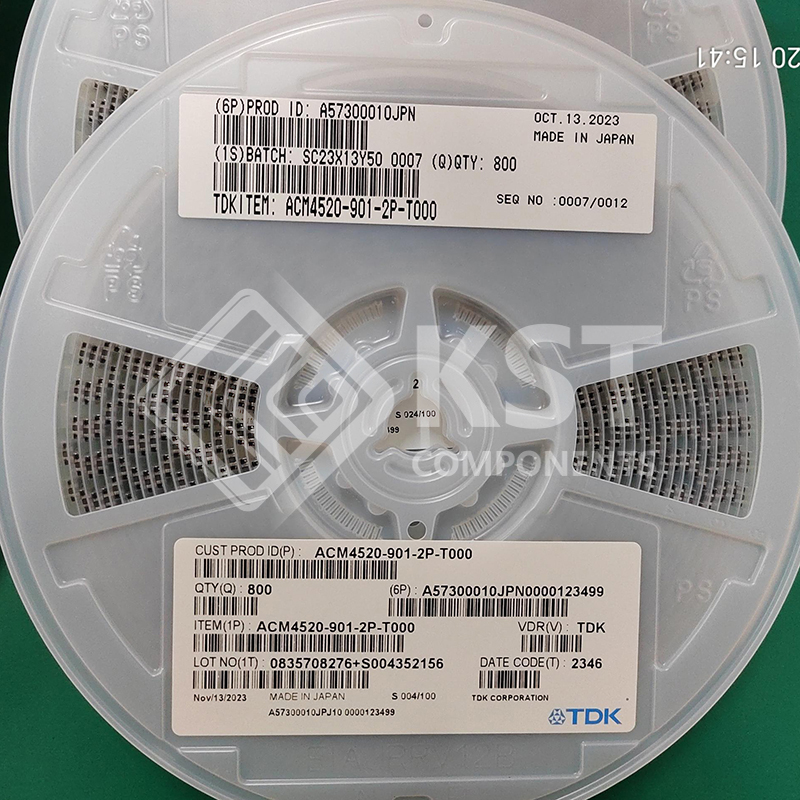

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Filter Type
|
Power Line
|
|
|
Number of Lines
|
2
|
|
|
Impedance @ Frequency
|
900 Ohms @ 100 MHz
|
|
|
Current Rating (Max)
|
2.3A
|
|
|
DC Resistance (DCR) (Max)
|
60mOhm
|
|
|
Voltage Rating – DC
|
50V
|
|
|
Voltage Rating – AC
|
–
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Ratings
|
–
|
|
|
Approval Agency
|
–
|
|
|
Features
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Size / Dimension
|
0.185″ L x 0.177″ W (4.70mm x 4.50mm)
|
|
|
Height (Max)
|
0.079″ (2.00mm)
|
|
|
Package / Case
|
Horizontal, 4 PC Pad
|
