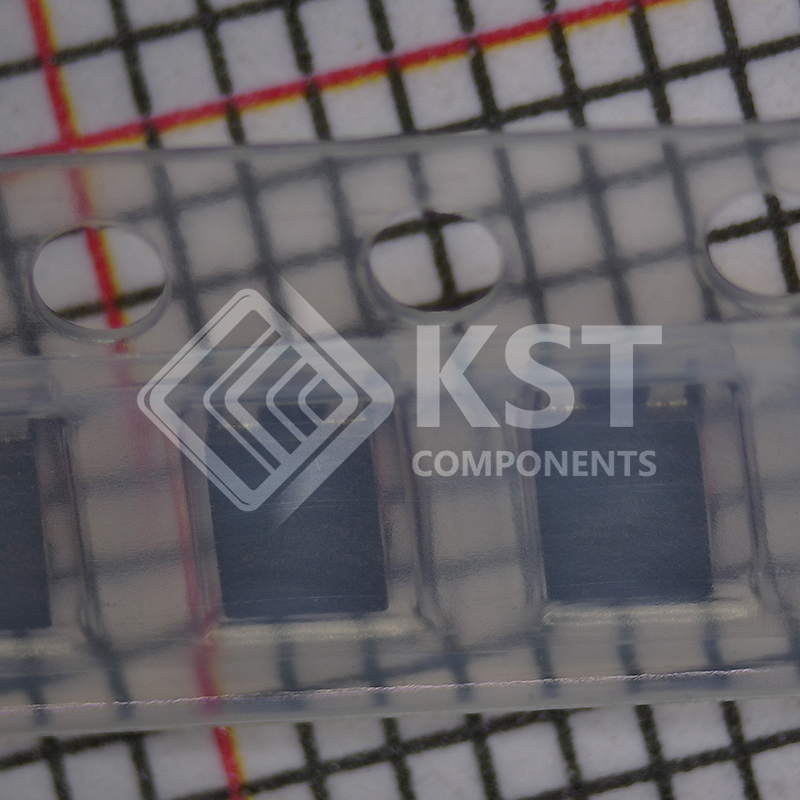

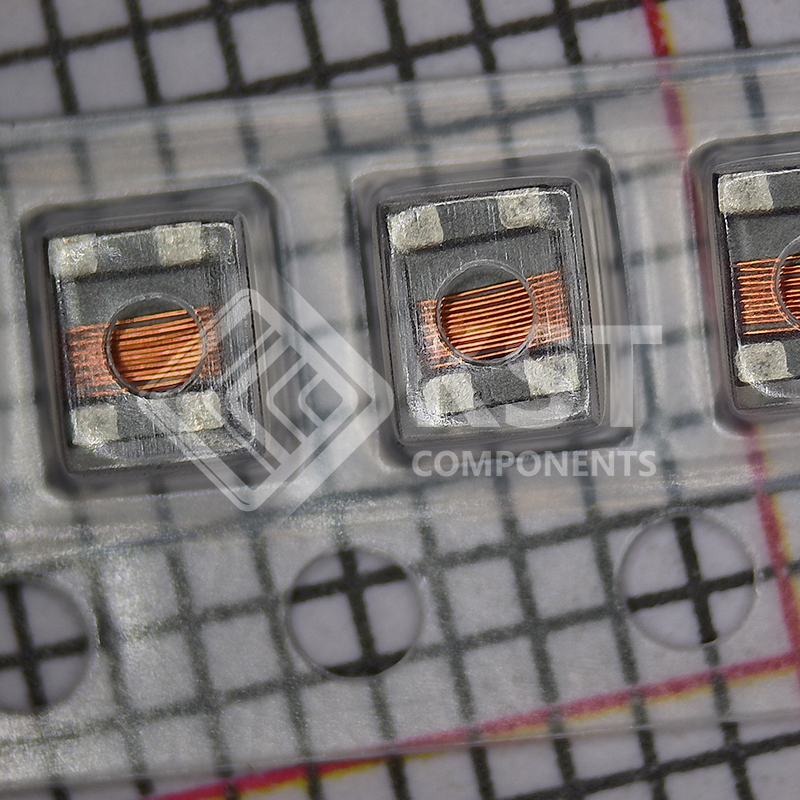

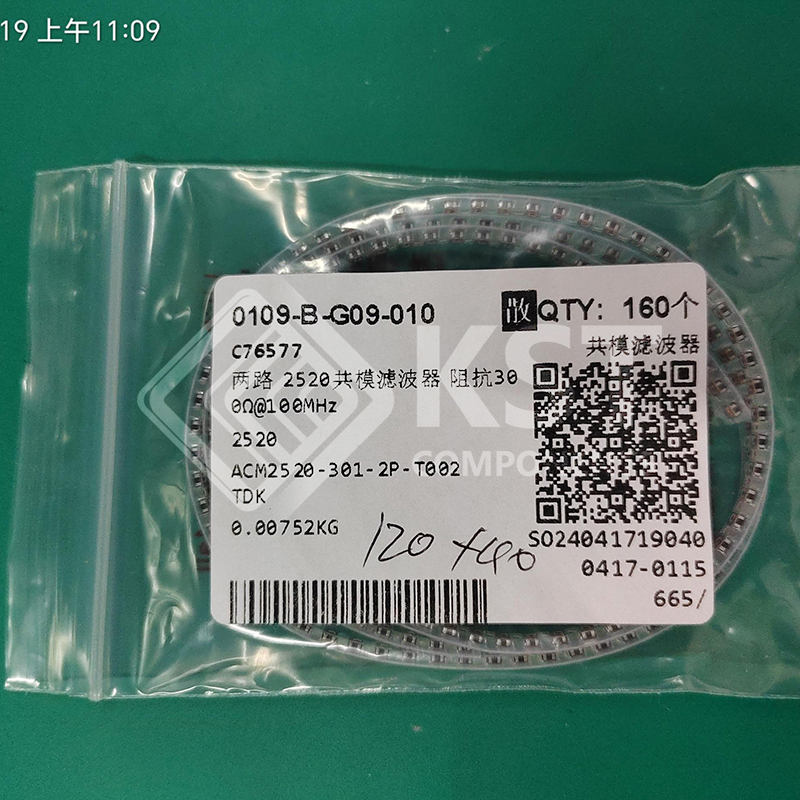

ACM2520-301-2P-T002

2 Line Common Mode Choke Surface Mount 300 Ohms @ 100 MHz 400mA DCR 350mOhm

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Downsized wound type chip common mode filter that maintains required common mode filter characteristics.
    Impedance for common mode noise can clear 1000 [100MHz], and has excellent EMC suppression.
    Differential mode impedance is suppressed, so there is virtually no affect on high speed signals.
    There is a two-line type and a three-line type, so they can be used for various circuits and noise.
    Operating temperature range: –40 to +85°C
