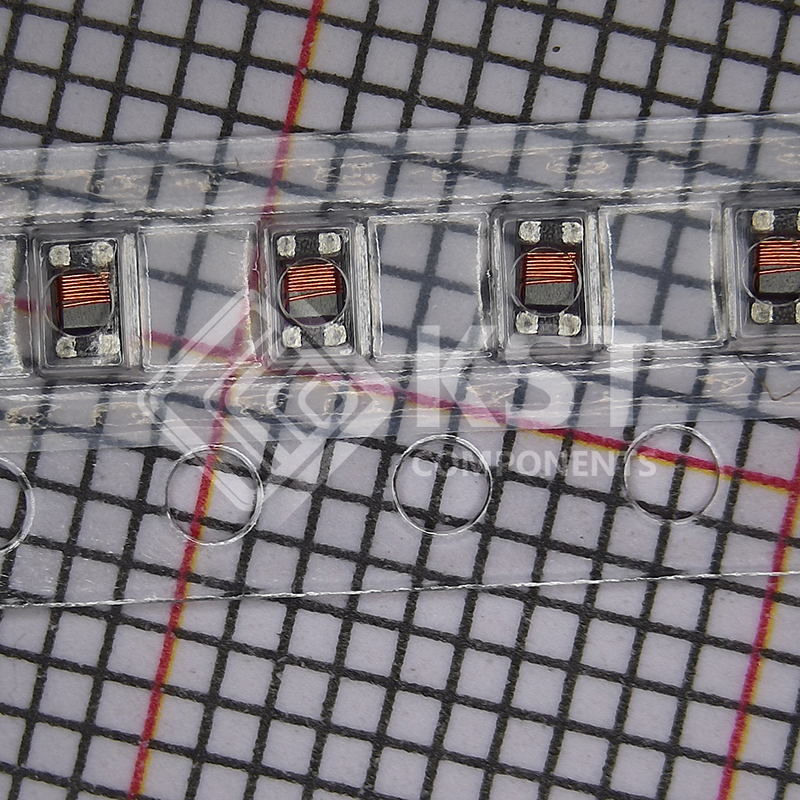

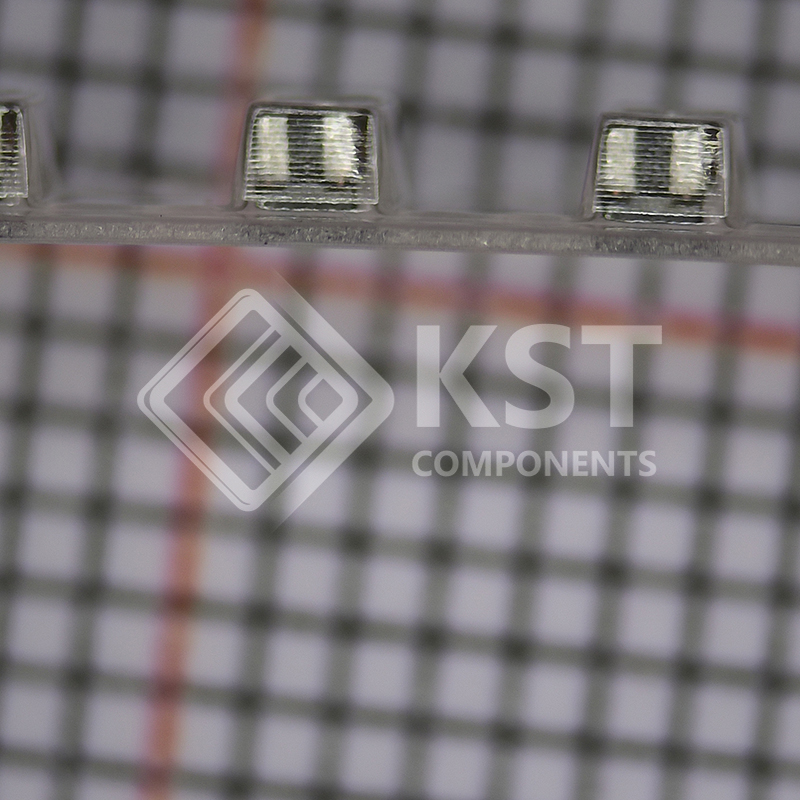

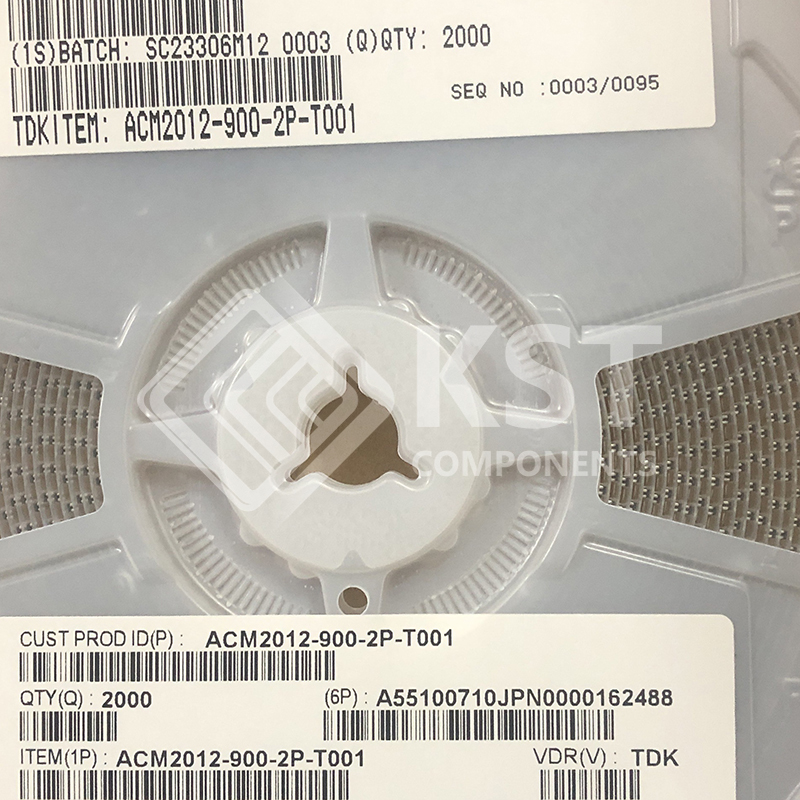

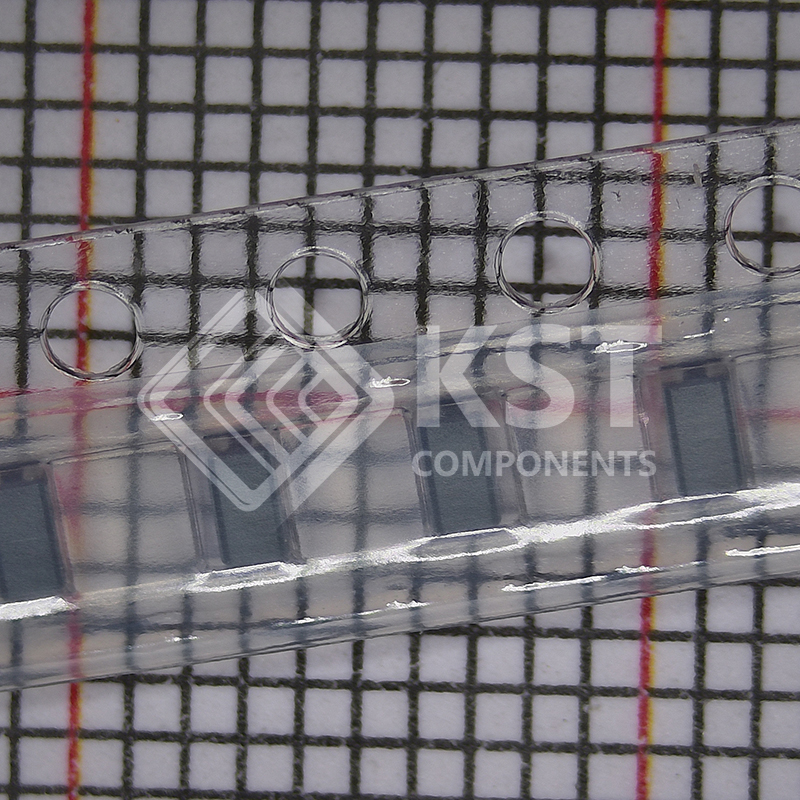

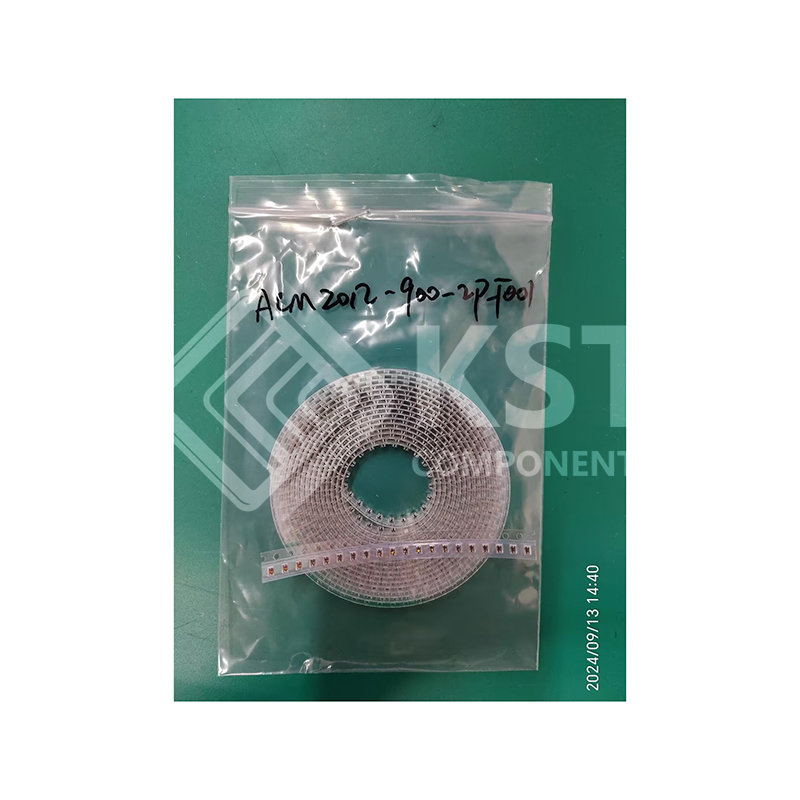

ACM2012-900-2P-T001
INQUIRY ONLINE
|
Category
|
Filters
Common Mode Chokes
|
|
|
Manufacturer
|
TDK Corporation
|
|
|
Series
|
ACM
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Filter Type
|
Signal Line
|
|
|
Number of Lines
|
2
|
|
|
Impedance @ Frequency
|
90 Ohms @ 100 MHz
|
|
|
Current Rating (Max)
|
400mA
|
|
|
DC Resistance (DCR) (Max)
|
190mOhm
|
|
|
Voltage Rating – DC
|
50V
|
|
|
Voltage Rating – AC
|
–
|
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
|
Approval Agency
|
–
|
|
|
Features
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Size / Dimension
|
0.079″ L x 0.047″ W (2.00mm x 1.20mm)
|
|
|
Height (Max)
|
0.051″ (1.30mm)
|
|
|
Package / Case
|
Horizontal, 4 PC Pad
|
