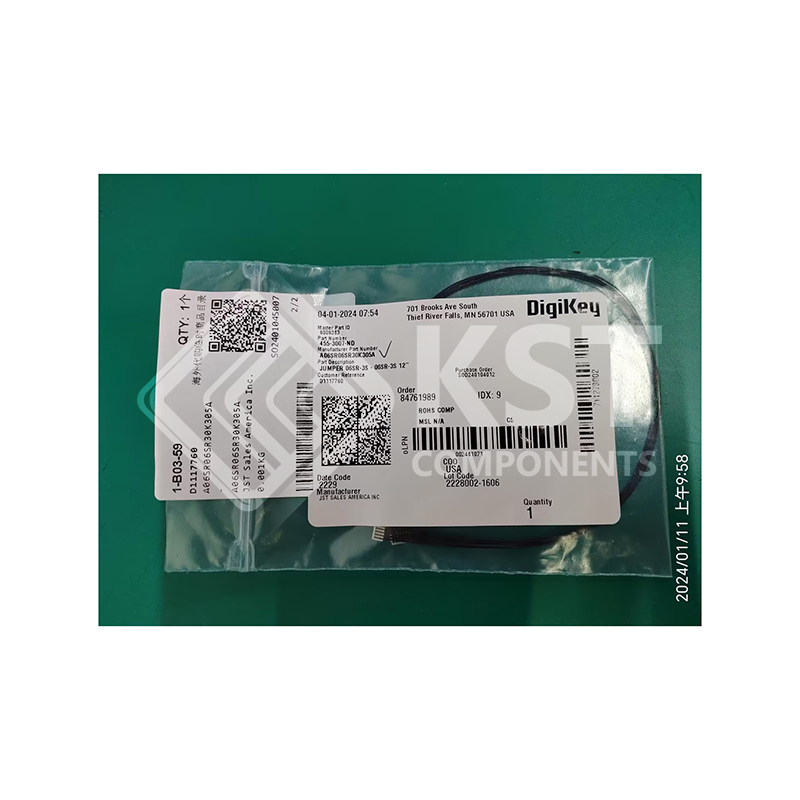

A06SR06SR30K305A

・Current rating: 0.7 A　AC/DC
・Voltage rating: 50 V　AC/DC
・Temperature range: -25℃ to +85℃
(including temperature rise in
a applying electrical current)
・Contact resistance:
Initial value/ 20 mΩ max.
After environmental tests/ 40 mΩ max.
・Insulation resistance: 100 MΩ min.
・Withstanding voltage:
There shall be no breakdown or flashover while
applying 500 VAC for one minute.
・Applicable wire range:
Conductor size/AWG #30
Conductor/7 strands,
tin-coated annealed copper
Insulation O.D./ φ0.54 mm to φ0.58 mm
* Please refer to the “Handling Precautions for Terminals
and Connectors” on our website (listed in the “Technical
Documents” column on the Product Information page)
before use.
* RoHS2 compliance
* Dimensional unit: mm
* Contact JST for details.
