969028-2

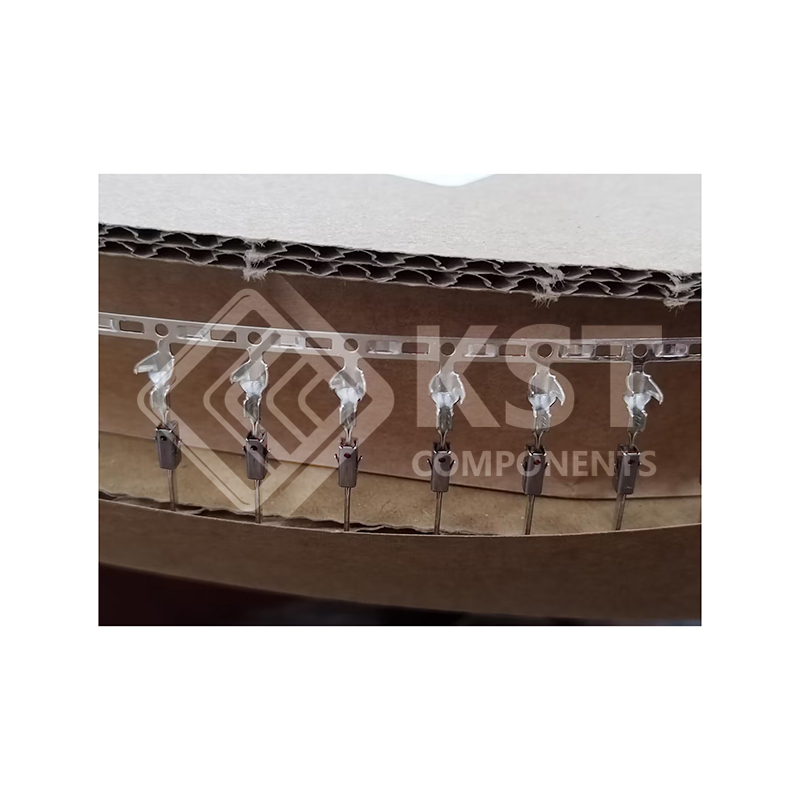

Tab Contact Tin 20-24 AWG Crimp

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Product Type Features
    Receptacle Style 180°
    Sealable Yes
    Primary Locking Feature Locking Lance
    Body Features
    Terminal Seal Type Single Wire Seal (SWS)
    Contact Features
    Contact Size 1.6mm
    Contact Fabrication Stamped & Formed
    Wire Contact Termination Area Plating Material Tin
    Typical Current Rating 10 A
    Crimp Type F-Crimp
    Terminal Type Tab
    Mating Tab Width 1.6 mm[.063 in]
    Mating Tab Thickness .6 mm[.024 in]
    Interface Plating Tin (Sn)
    Termination Features
    Termination Method to Wire & Cable Crimp
    Automotive Terminals, Tab, Mating Tab Width 1.6 mm [.063 in], Tab
    Thickness .6 mm [.024 in], 24 – 20 AWG Wire Size, Timer Connector
    System
    Automotive Terminals, Tab, Mating Tab Width 1.6 mm [.063 in], Tab Thickness .6 mm
    [.024 in], 24 – 20 AWG Wire Size, Timer Connector System
    For support call+1 800 522 6752 05/16/2024 03:29AM | Page 2
    Termination Method to Wire & Cable Crimp
    Product Terminates To Wire
    Dimensions
    Compatible Insulation Diameter Range 1.15 – 1.6 mm[.045 – .063 in]
    Wire Size .2 – .5 mm²
    Wire Size Search 20 AWG, 21 AWG, 22 AWG, 23 AWG, 24
    AWG
    Tab Length 22.4 mm[.88 in]
    Usage Conditions
    Insulation Option Uninsulated
    Operating Temperature (Max) 130 °C[266 °F]
    Operating Temperature Range -40 – 130 °C[-40 – 266 °F]
    Operation/Application
    Conforms to KOMAX Automatic Component Insertion Guideline Yes, per Version 5.0 (March 2018)
    Compatible With Wire Base Material Copper
    Industry Standards
    Compatible With Agency/Standards Products DIN 72 551 Part 5 and 6
    Packaging Features
    Packaging Quantity 4000

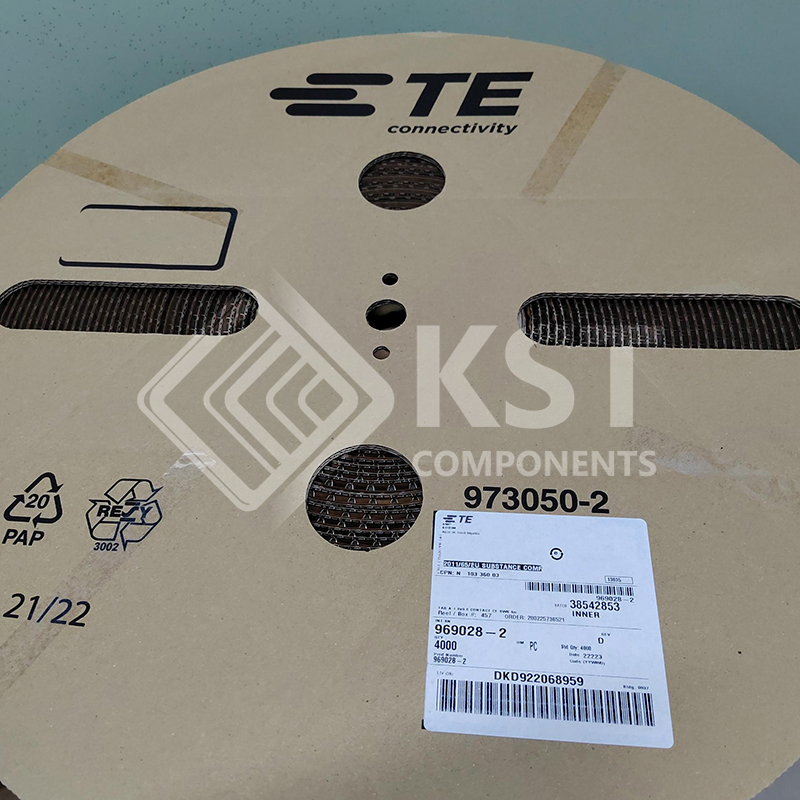

    Packaging Method Reel
    Other
    Terminal Transmits 0 – 24 A (Low Power)
