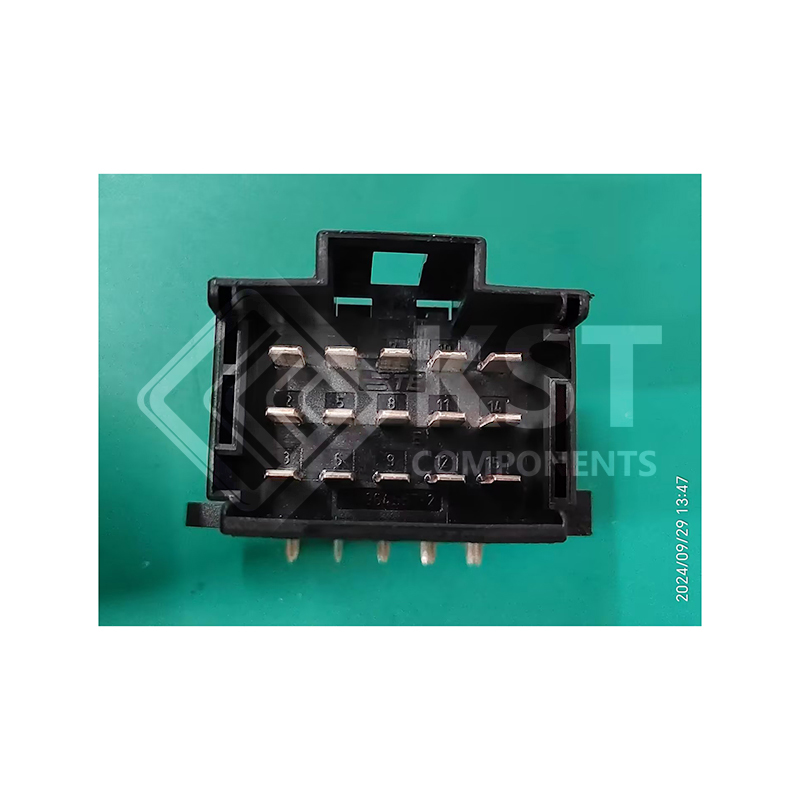

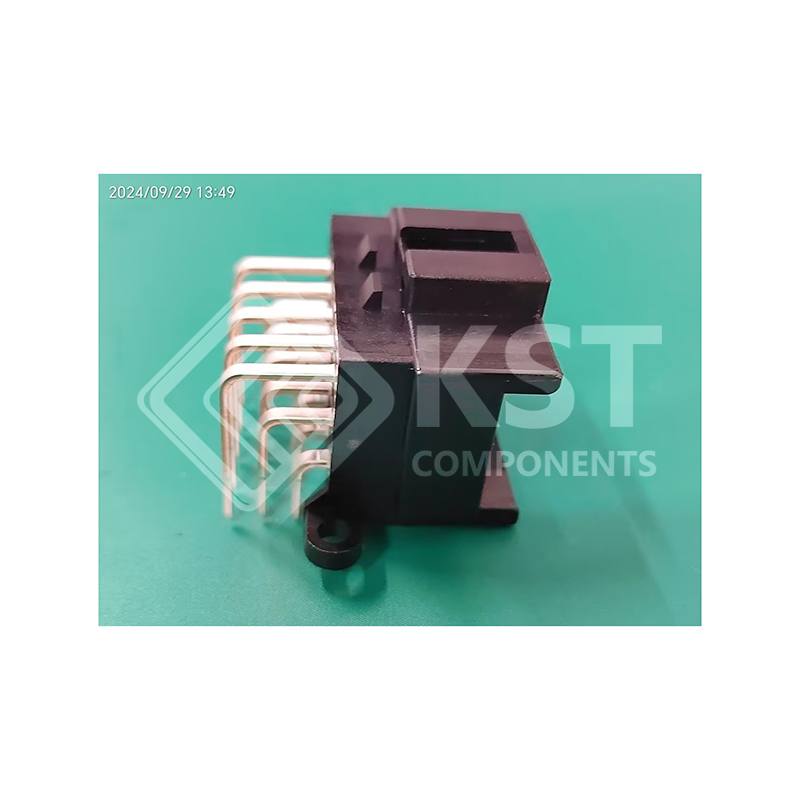

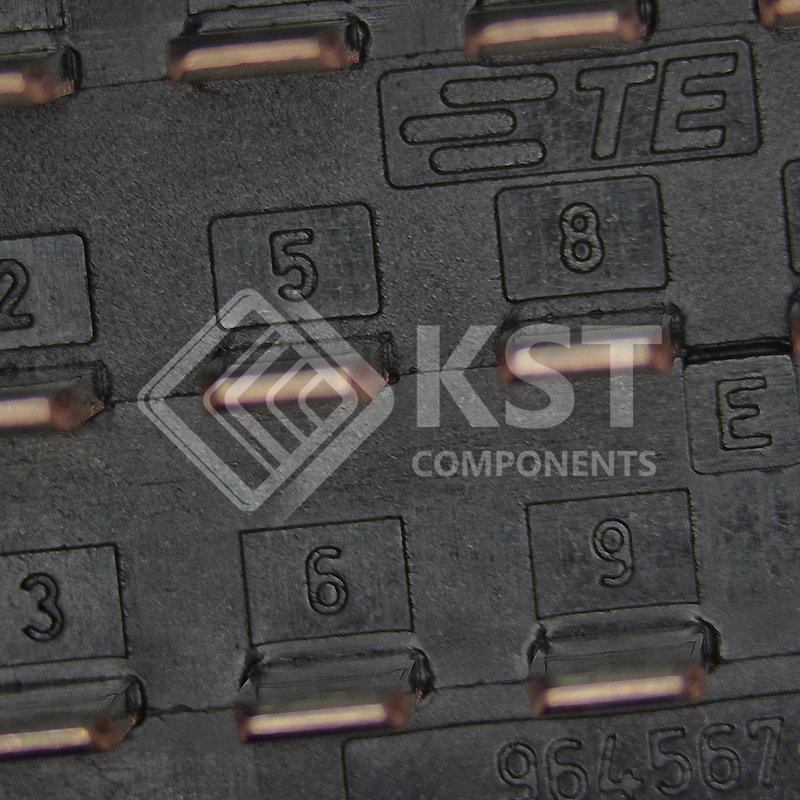

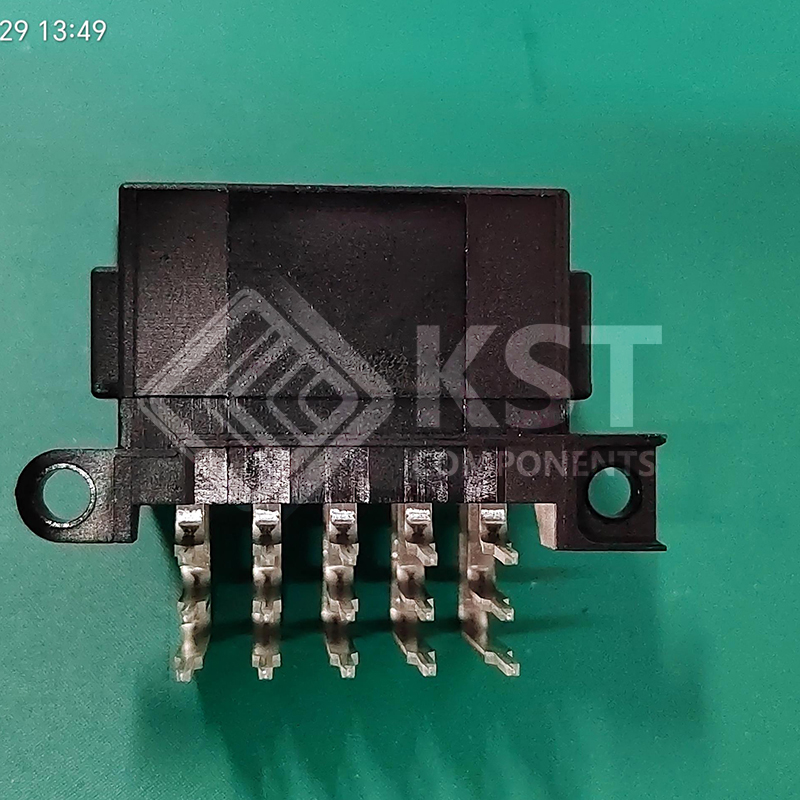

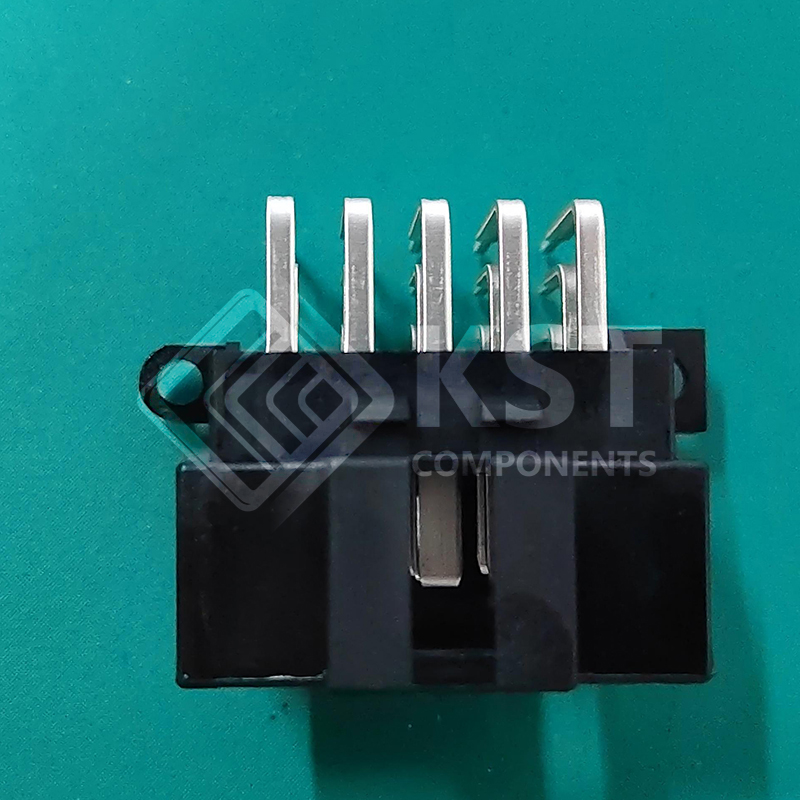

9-966140-2
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr
|
TE Connectivity AMP Connectors
|
|
|
Series
|
MCP
|
|
|
Packaging
|
Tray
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Header
|
|
|
Contact Type
|
Tab
|
|
|
Pitch – Mating
|
0.197″ (5.00mm)
|
|
|
Number of Positions
|
15
|
|
|
Number of Rows
|
3
|
|
|
Row Spacing – Mating
|
0.217″ (5.51mm)
|
|
|
Number of Positions Loaded
|
All
|
|
|
Style
|
Board to Board or Cable
|
|
|
Shrouding
|
Shrouded – 4 Wall
|
|
|
Mounting Type
|
Through Hole, Right Angle
|
|
|
Termination
|
Solder
|
|
|
Fastening Type
|
Latch Holder
|
|
|
Contact Length – Mating
|
–
|
|
|
Contact Length – Post
|
0.118″ (3.00mm)
|
|
|
Overall Contact Length
|
–
|
|
|
Insulation Height
|
1.012″ (25.70mm)
|
|
|
Contact Shape
|
Rectangular
|
|
|
Contact Finish – Mating
|
Tin
|
|
|
Contact Finish Thickness – Mating
|
–
|
|
|
Contact Finish – Post
|
–
|
|
|
Contact Material
|
Copper Alloy
|
|
|

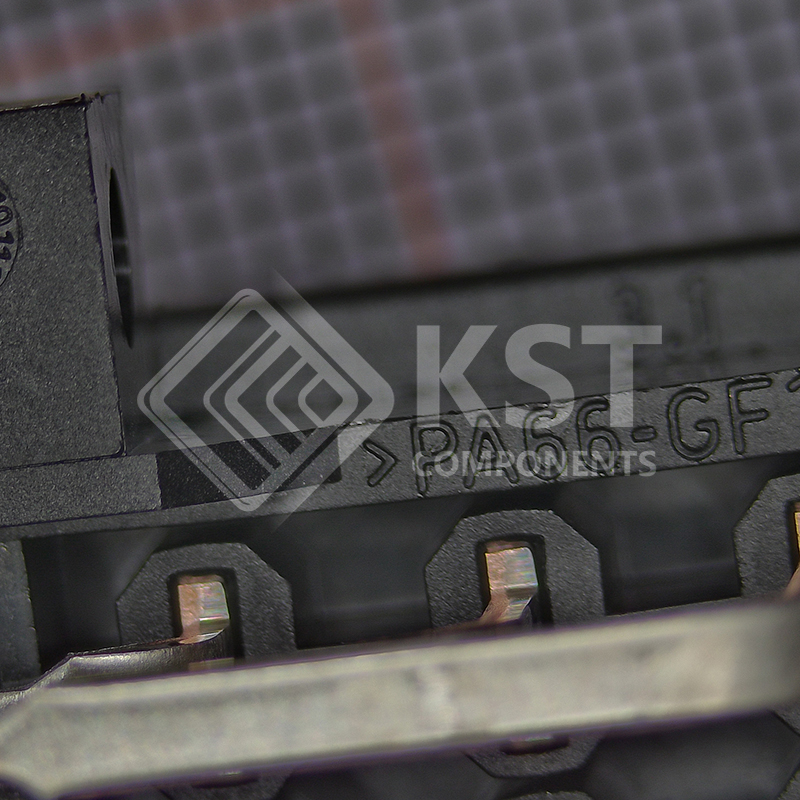

Insulation Material
|
Polyamide (PA66), Nylon 6/6, Glass Filled
|
|
|
Features
|
Mounting Flange
|
|
|
Operating Temperature
|
-40°C ~ 100°C
|
|
|
Ingress Protection
|
–
|
|
|
Material Flammability Rating
|
–
|
|
|
Insulation Color
|
Black
|
|
|
Current Rating (Amps)
|
–
|
|
|
Voltage Rating
|
–
|
|
|
Mated Stacking Heights
|
–
|
|
|
Contact Finish Thickness – Post
|
–
|
|
|
Applications
|
Automotive, General Purpose
|
|
|
Base Product Number
|
966140
|
