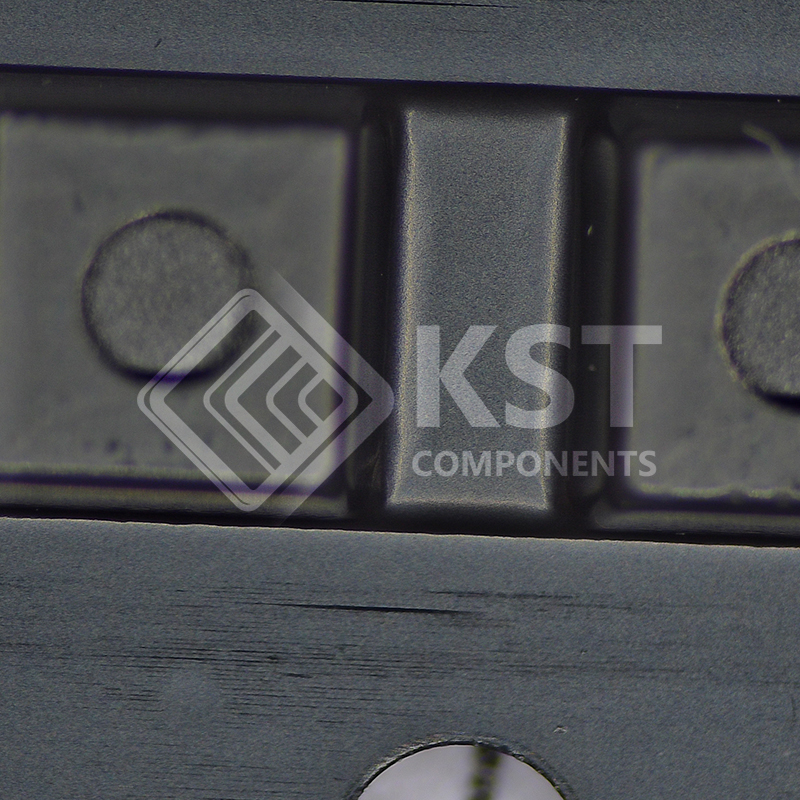

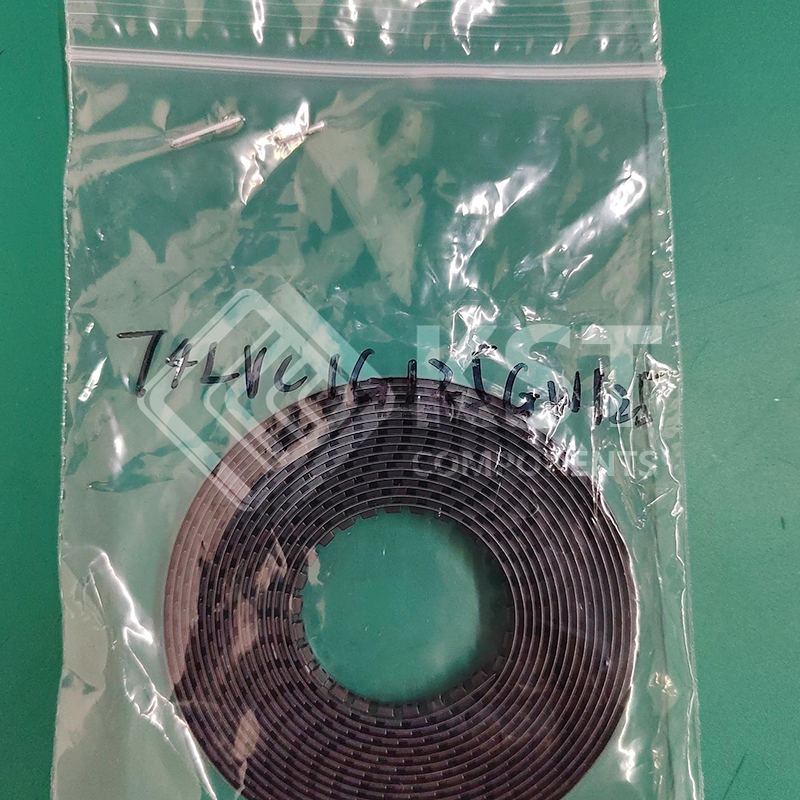

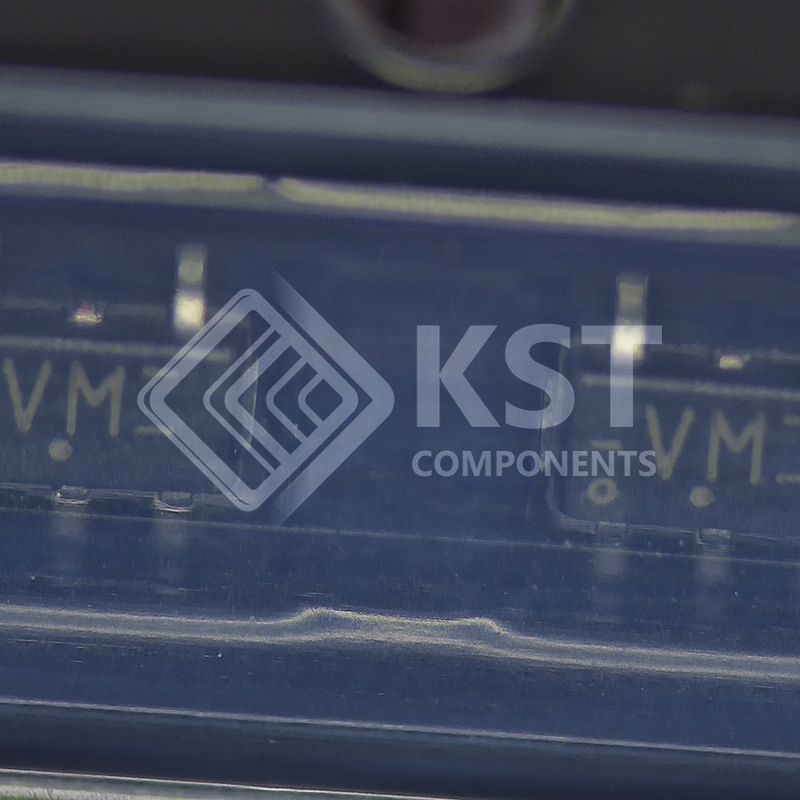

74LVC1G125GW

The 74LVC1G125 is a single buffer/line driver with 3-state output. Inputs can be driven from either
3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and
5 V environments.
Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
This device is fully specified for partial power down applications using IOFF. The IOFF circuitry
disables the output, preventing the potentially damaging backflow current through the device when
it is powered down.

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Wide supply voltage range from 1.65 V to 5.5 V
    • Overvoltage tolerant inputs to 5.5 V
    • High noise immunity
    • CMOS low power consumption
    • IOFF circuitry provides partial Power-down mode operation
    • ±24 mA output drive (VCC = 3.0 V)
    • Latch-up performance exceeds 250 mA
    • Direct interface with TTL levels
    • Complies with JEDEC standards:
    • JESD8-7 (1.65 V to 1.95 V)
    • JESD8-5 (2.3 V to 2.7 V)
    • JESD8C (2.7 V to 3.6 V)
    • JESD36 (4.5 V to 5.5 V)
    • ESD protection:
    • HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
    • CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
    • Multiple package options
    • Specified from -40 °C to +85 °C and -40 °C to +125 °C
