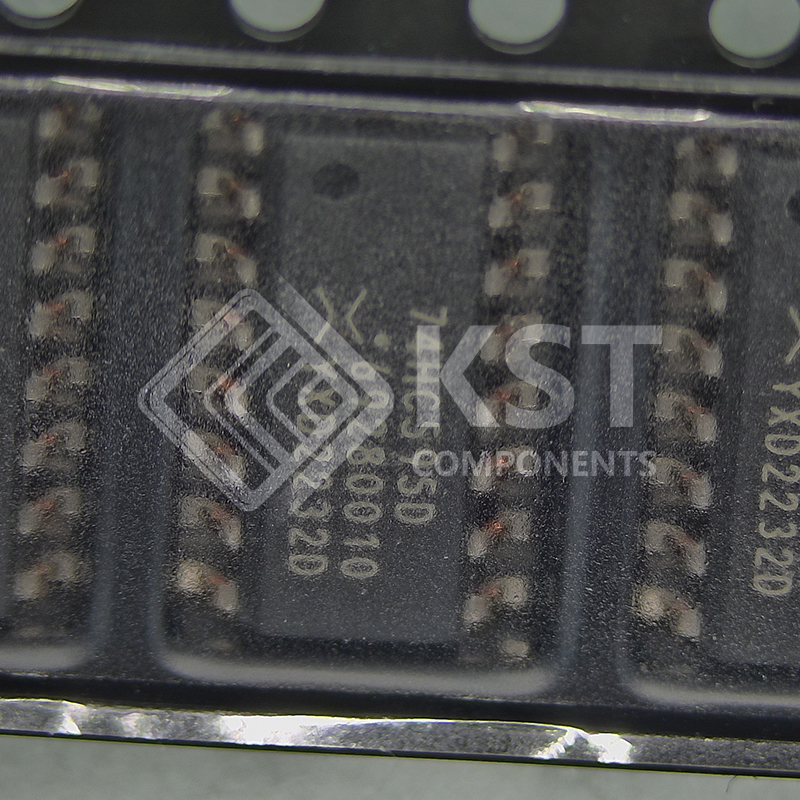

74HC595D

The 74HC595D is a high speed 8-BIT SHIFT REGISTER/LATCH fabricated with silicon gate C
2MOS technology.
It achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power
dissipation.
The 74HC595D contains an 8-bit static shift register which feeds an 8-bit storage register.
Shift operation is accomplished on the positive going transition of the SCK input. The output register is loaded
with the contents of the shift register on the positive going transition of the RCK input. Since RCK and SCK
signal are independent, parallel outputs can be held stable during the shift operation.
And, since the parallel outputs are 3-state, it can be directly connected to 8-bit bus. This register can be used in
serial-to-parallel conversion, data receivers, etc.
All inputs are equipped with protection circuits against static discharge or transient excess voltage.
